63 31 150 Removing and installing/replacing glovebox light

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

64 1 020

IMPORTANT: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights) .

Replacement: If necessary, remove bulb.

Lever glovebox light (1) with special tool 64 1 020 as pictured out of glovebox housing (2).

Disconnect associated plug connection and remove glovebox light (1).

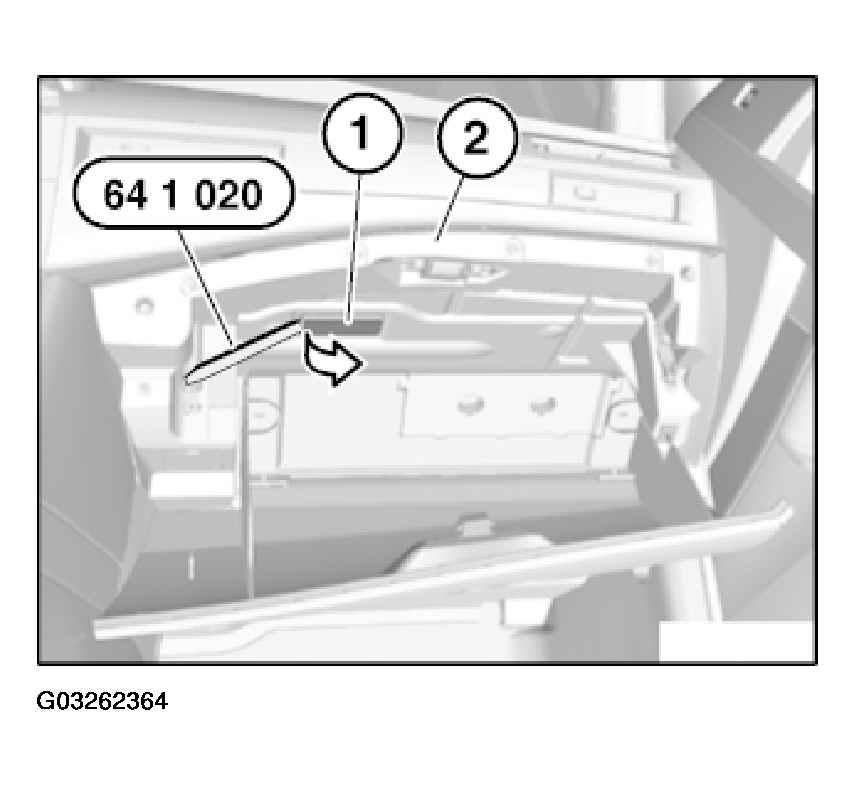

Fig 1: Disconnecting Associated Plug Connection And Removing Glovebox Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Note type of bulb.
