63 31 080 Removing and installing/replacing luggage compartment light
WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
- 64 1 020
IMPORTANT:
Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights)
.
Replacement: If necessary, remove bulb.

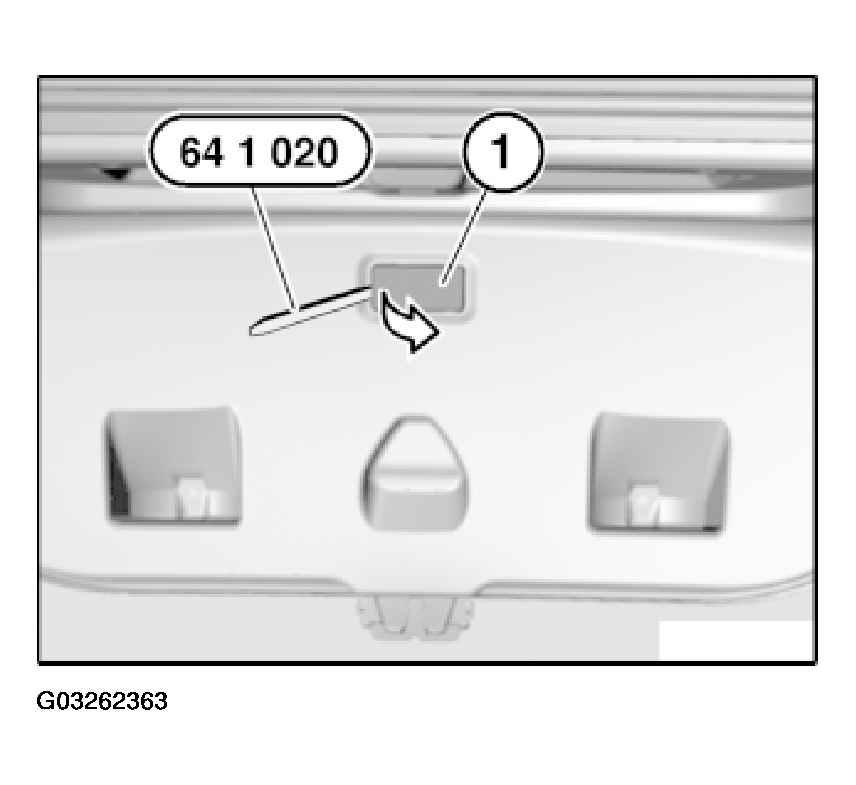

Under rear parcel shelf: Lever out luggage compartment light (1) with special tool 64 1 020 as illustrated.
Disconnect associated plug connection and remove luggage compartment light (1).
Replacement: Note type of bulb.

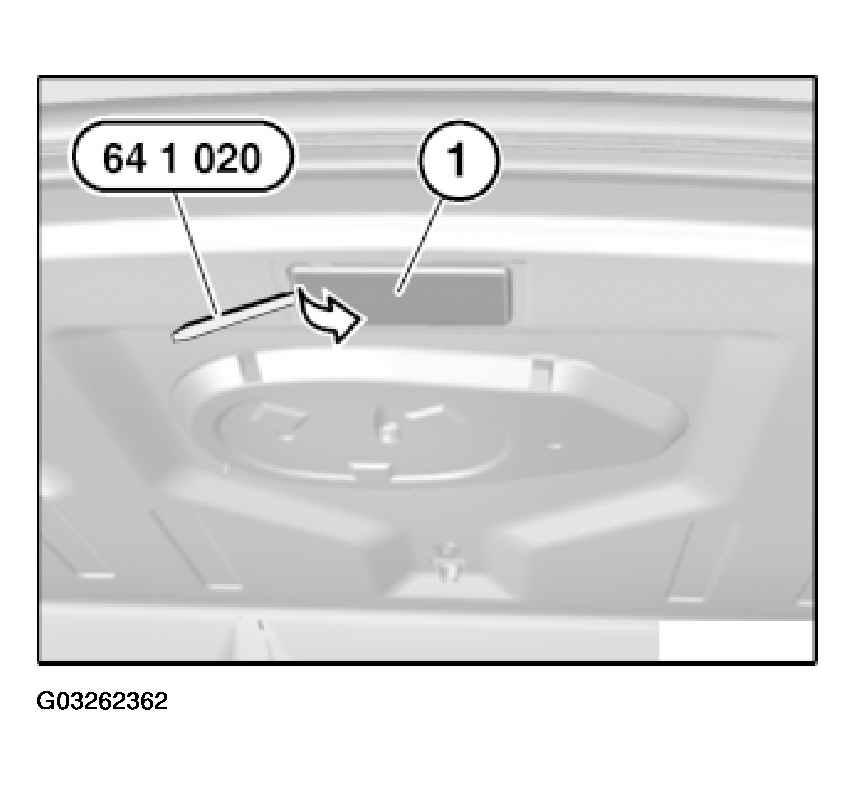

In rear lid: Lever out luggage compartment light (1) with special tool 64 1 020 as illustrated.
Disconnect associated plug connection and remove luggage compartment light (1).
Replacement: Note type of bulb.
