63 31 050 Removing and installing/replacing mirror light

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights) .

Replacement: If necessary, convert bulb.

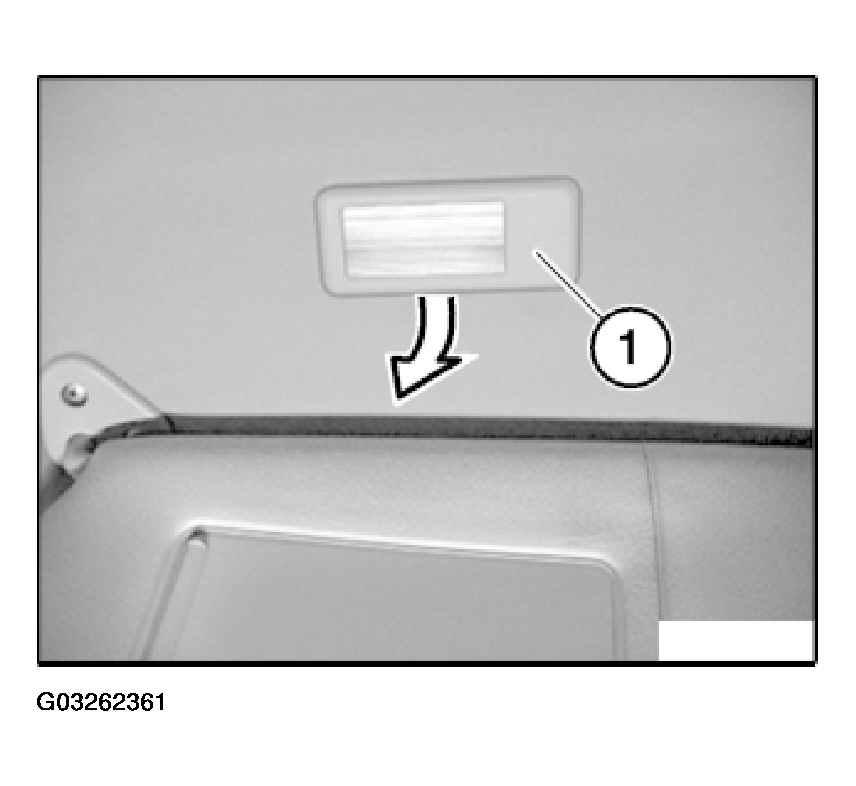

Lever front mirror light (1) in direction of arrow.

Disconnect plug connection underneath and remove mirror plate light (1).

Fig 1: Disconnecting Plug Connection Underneath And Removing Mirror Plate Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Note type of bulb.
