63 31 020 Removing and installing/replacing footwell light

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

64 1 020

IMPORTANT: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights) .

Replacement:If necessary, remove bulb.

In footwell: Lever out footwell light (1) with special tool 64 1 020 as illustrated.

Disconnect associated plug connection and remove footwell light (1).

Replacement: Note type of bulb.

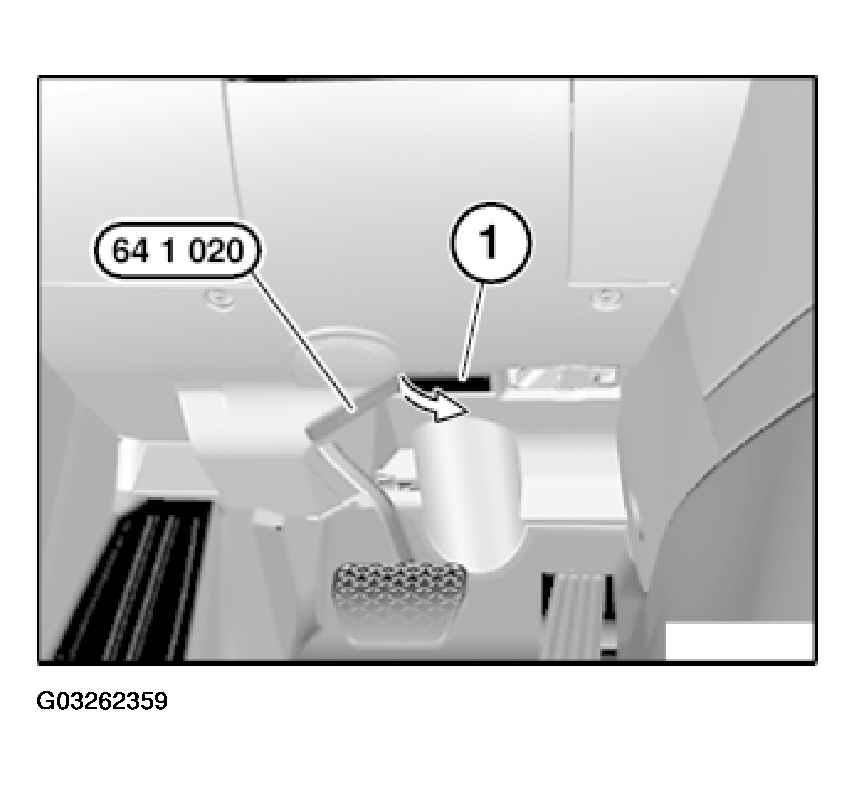

Fig 1: Levering Out Footwell Light With Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

On underside of door:

Lever out footwell light (1) with special tool 64 1 020 as illustrated.

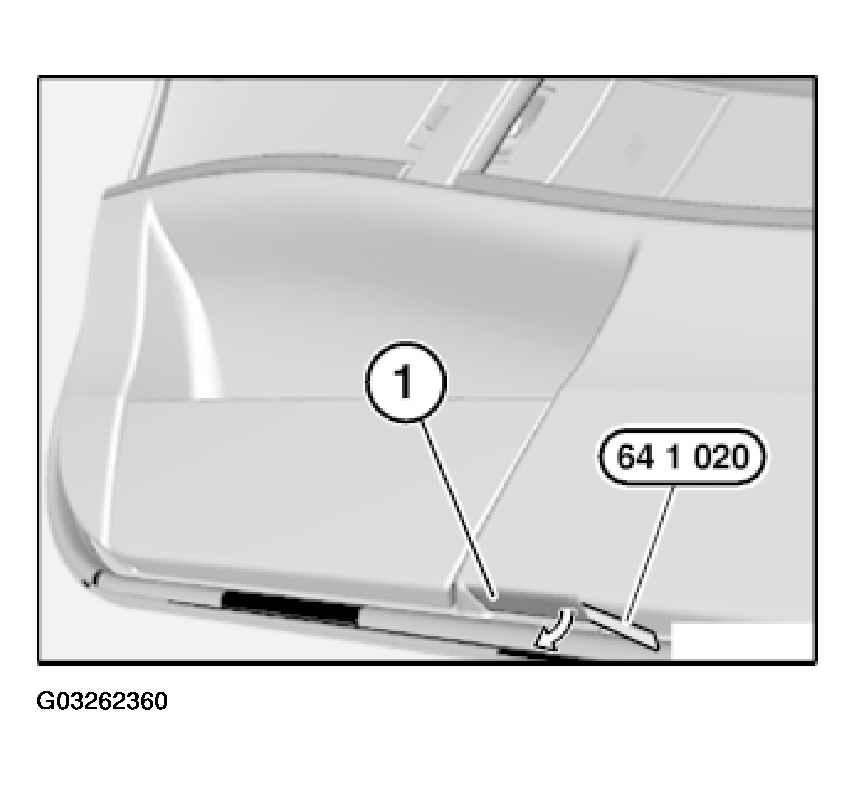

Fig 2: Levering Out Footwell Light With Special Tool 64 1 020

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and remove footwell light (1).

Replacement: Note type of bulb.
