63 31 003 Removing and installing/replacing complete ceiling light (rear)

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

00 9 317

IMPORTANT: Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Replacing Light Bulbs (Interior Lights) .

Replacement:

If necessary, convert bulbs.

Lever out ceiling light (1) with special tool 00 9 317 as illustrated.

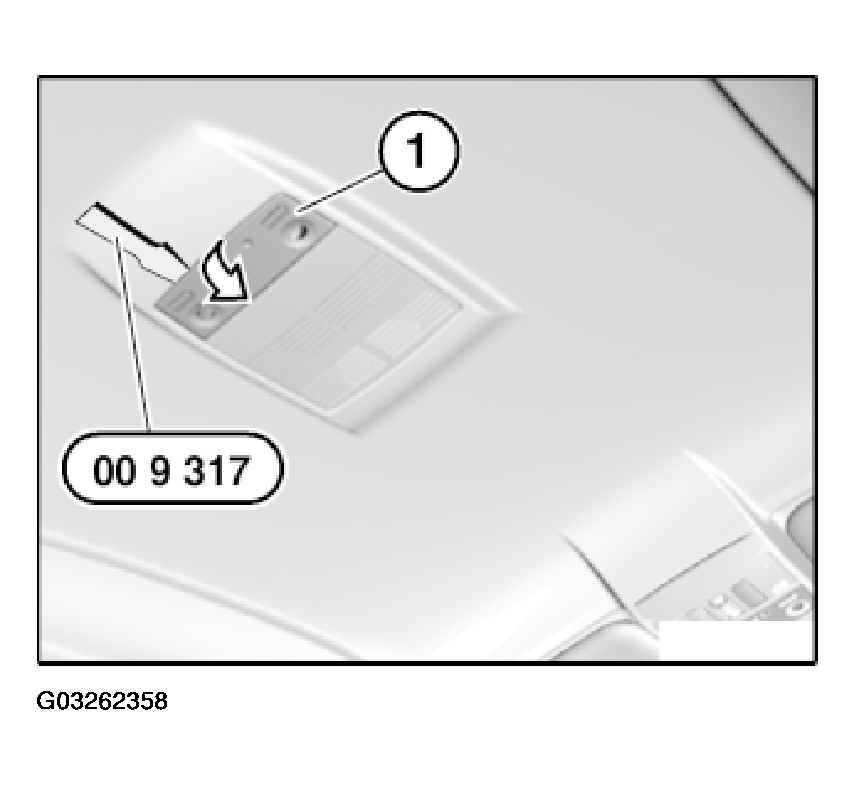

Fig 1: Levering Out Ceiling Light With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove ceiling light (1).

Replacement:

Note type of bulb.
