63 17 060 Removing and installing/replacing left or right front fog lamp (M aerodynamic kit)

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

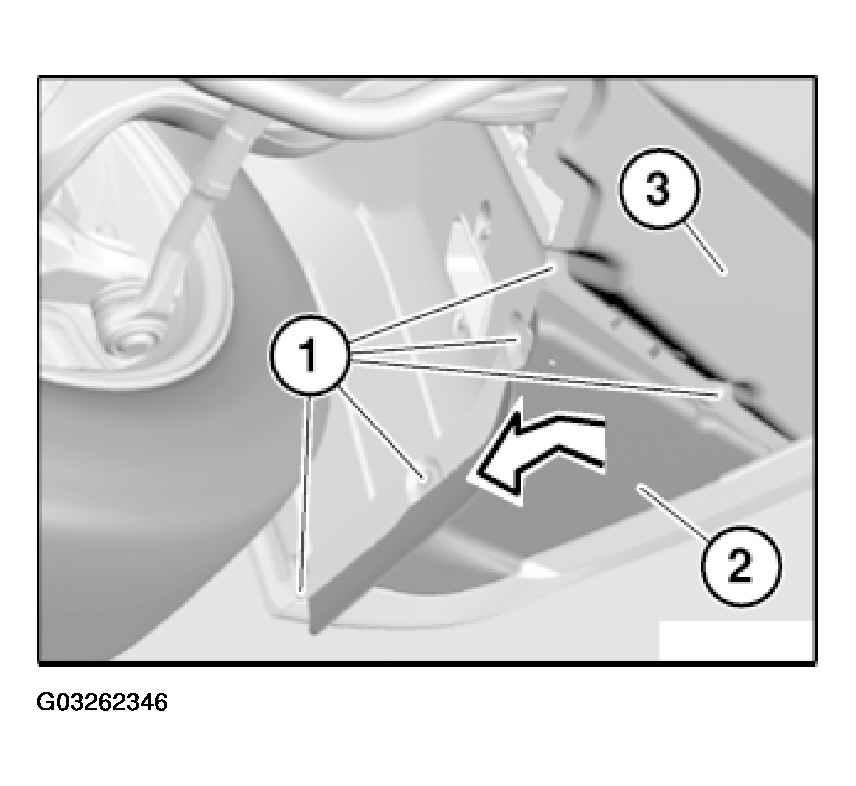

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

Fig 1: Detaching Cover From Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

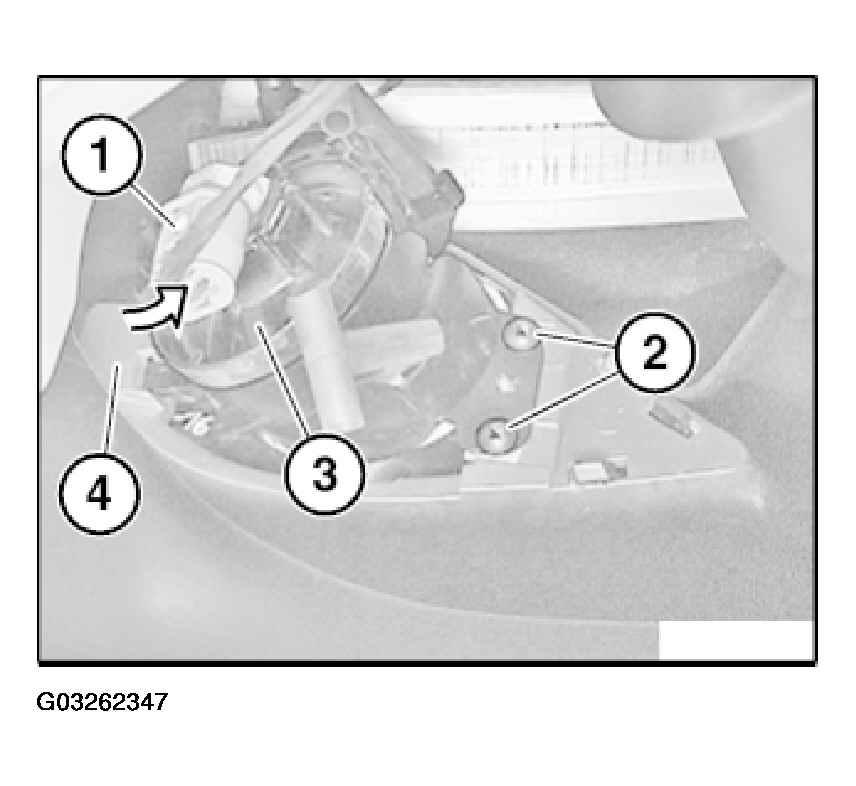

Unfasten plug connection (1) and disconnect. Release screws (2).

Feed front fog lamp (3) in direction of arrow out of mounting (4) and remove.

Fig 2: Feeding Front Fog Lamp In Direction Of Arrow Out Of Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulb.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Installation:

Note type of bulb.

Replacement:

Adjust front fog lamps.
