63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page is about a different car, the 2005 BMW 525i and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

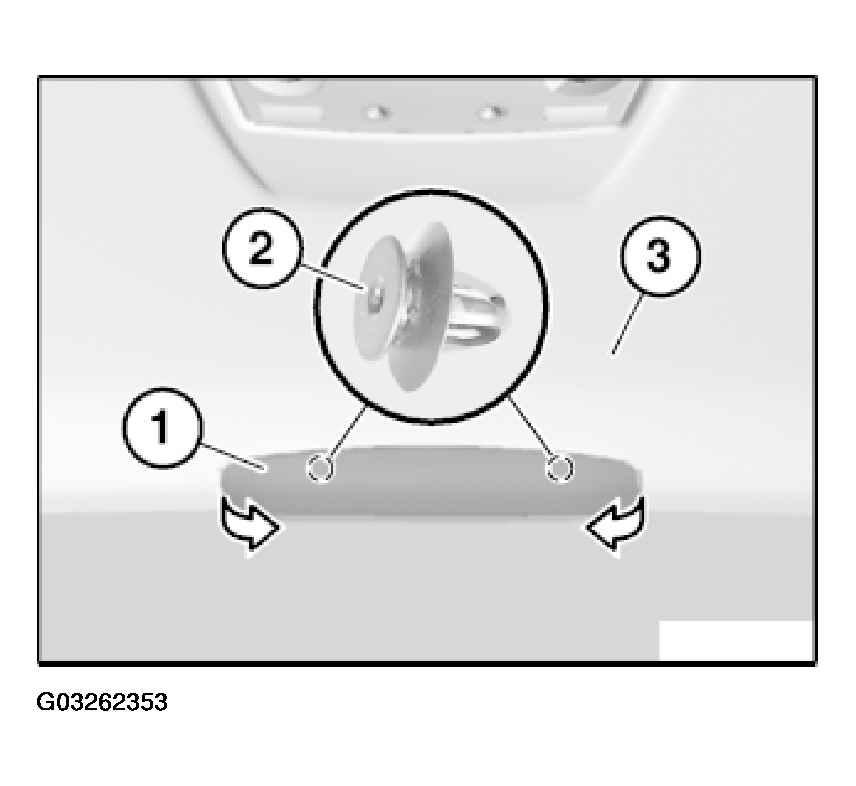

Unclip cover for auxiliary brake light (1) at points (2) and feed out sideways in direction of arrow.

Remove cover for auxiliary brake light (1) from rooflining (3).

Fig 1: Removing Cover For Auxiliary Brake Light From Rooflining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

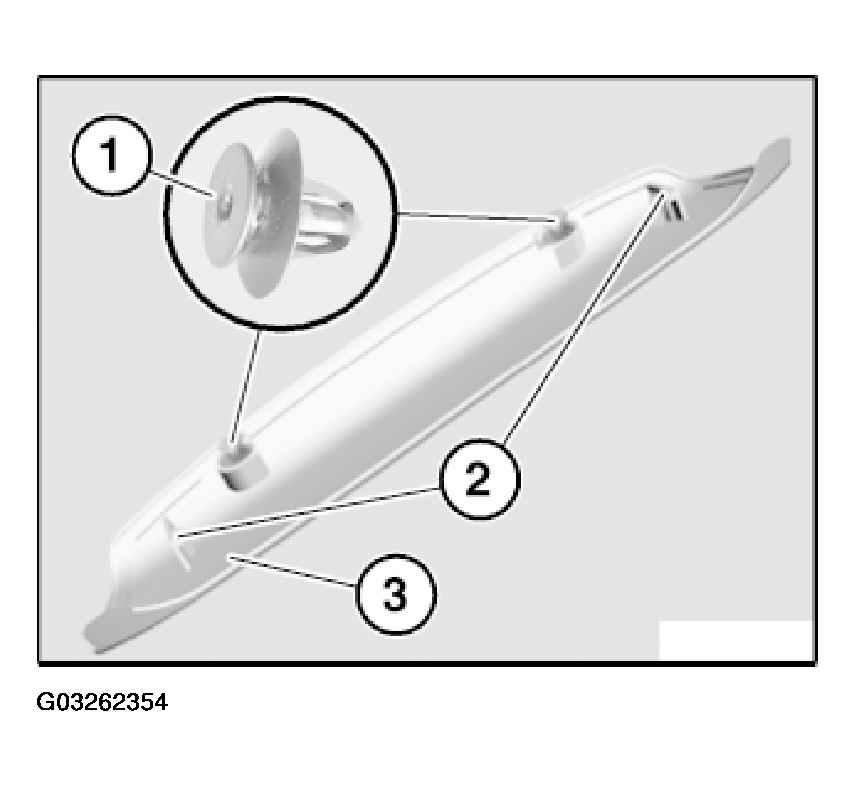

Clips (1) and mountings (2) must not be damaged.

Make sure cover for auxiliary brake light (3) is correctly seated.

Fig 2: Checking Clips And Mountings

Courtesy of BMW OF NORTH AMERICA, INC.

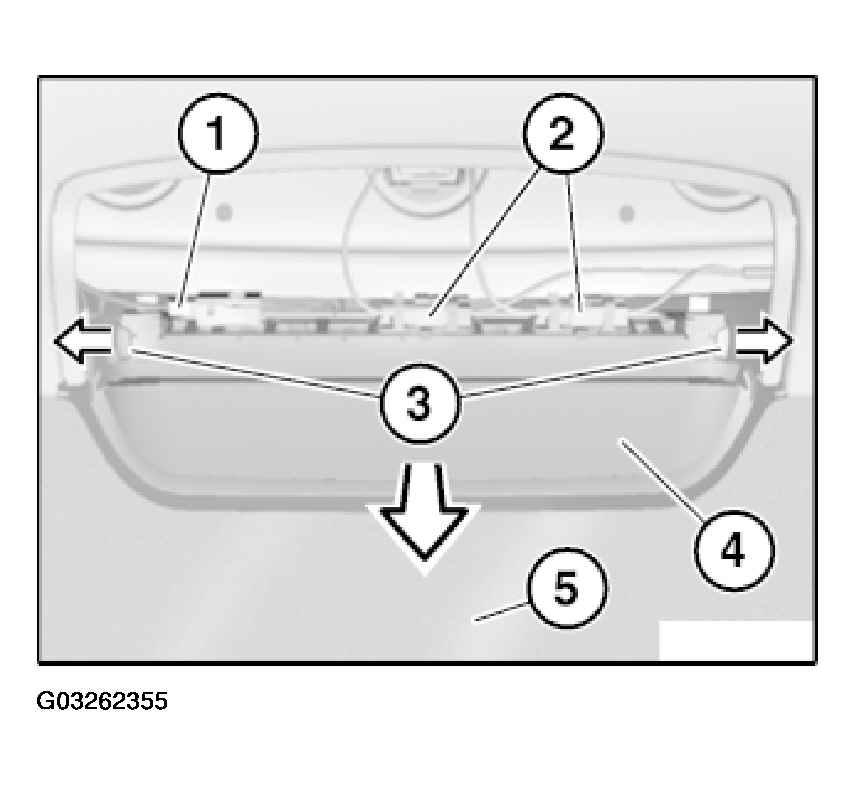

Unfasten plug connection (1) and disconnect.

If necessary, unclip plug connections (2) on auxiliary brake light (4).

Unlock slide (3) on both sides and remove auxiliary brake light (4) in direction of arrow from rear window (5).

Installation:

Make sure auxiliary brake light (4) is correctly positioned in rear window (5).

Fig 3: Unlocking Slide On Both Sides And Removing Auxiliary Brake Light From Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
