61 31 382 Replacing level switch for coolant
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.

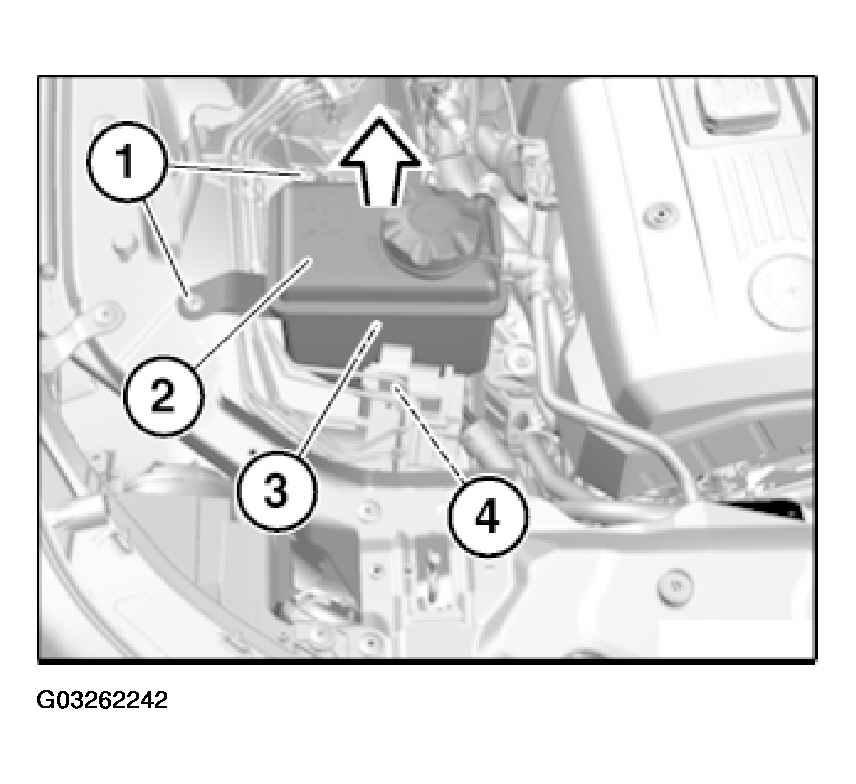

Release screws (1).
Unlock plug connection for coolant level switch (4) and disconnect.
Pull coolant expansion tank (2) in direction of arrow out of grommet (3) underneath.
Installation:
Make sure coolant expansion tank (2) is correctly seated in grommet (3).
If necessary, replace grommet (3).
IMPORTANT:
Do not damage connected water hoses.
Reposition coolant expansion tank (2) as far as possible until coolant level switch (4) forms the highest point. This will prevent coolant from escaping on opening.
If necessary, catch escaping coolant and feed back in later.
NOTE:

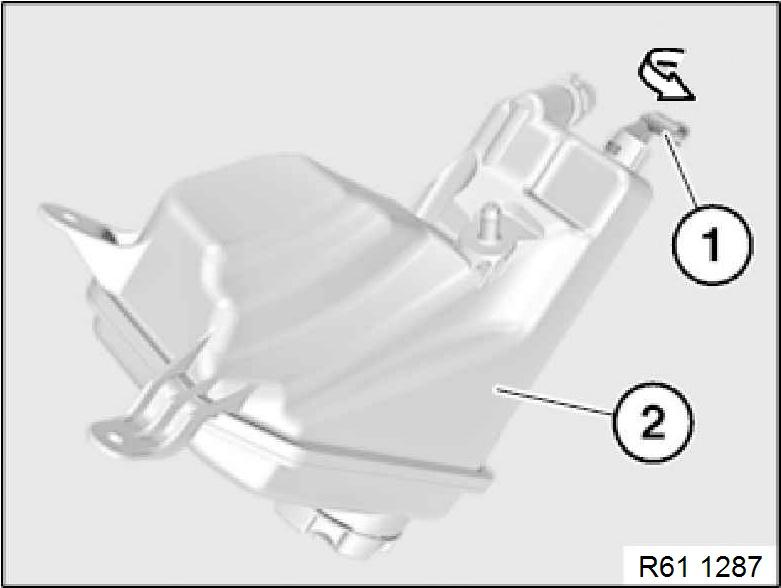

For purposes of clarity, illustration shows coolant expansion tank (2) removed.
Turn coolant level switch (1) in direction of arrow, pull upwards out of coolant expansion tank (2) and remove.
