61 31 287 Removing and installing/replacing driving dynamics switch
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FINISHER FOR PRESELECTOR LEVER .

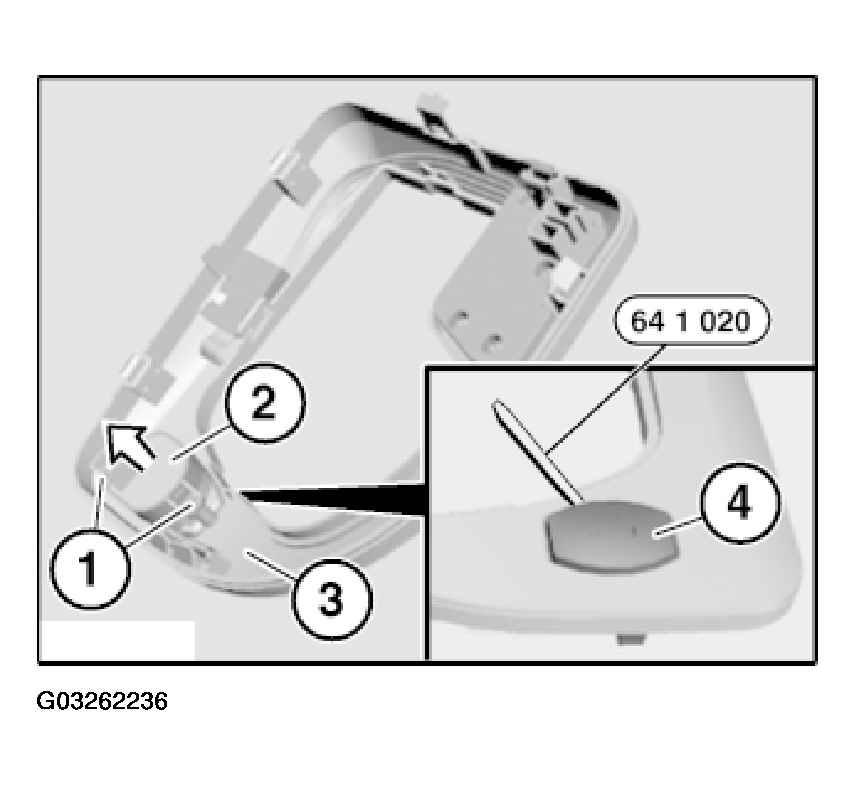

Release screws (1).
If necessary, lever out actuation trim (4) with special tool 64 1 020 and remove.
Remove driving dynamics switch (2) in direction of arrow from finisher for preselector lever (3).
