61 31 241 Removing and installing/replacing engine hood contact switch

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection (1) and disconnect.

Pull engine hood contact switch (2) in direction of arrow and feed out of microfilter air duct (3).

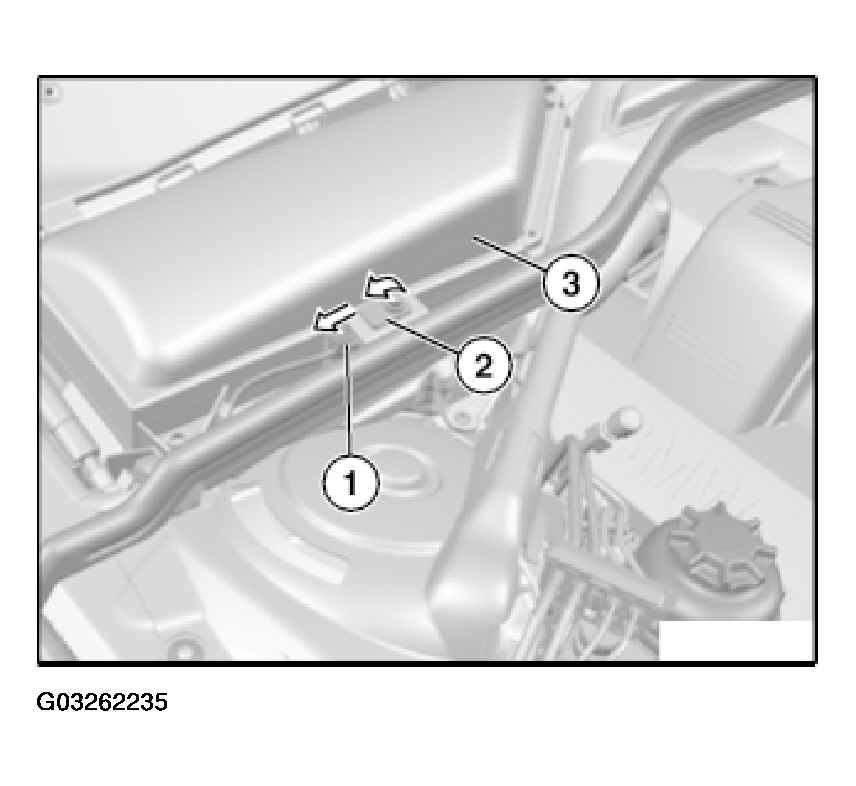

Fig 1: Pulling Engine Hood Contact Switch
G03262235Courtesy of BMW OF NORTH AMERICA, INC.
