61 31 193 Removing and installing/replacing button unit (for on-board monitor)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

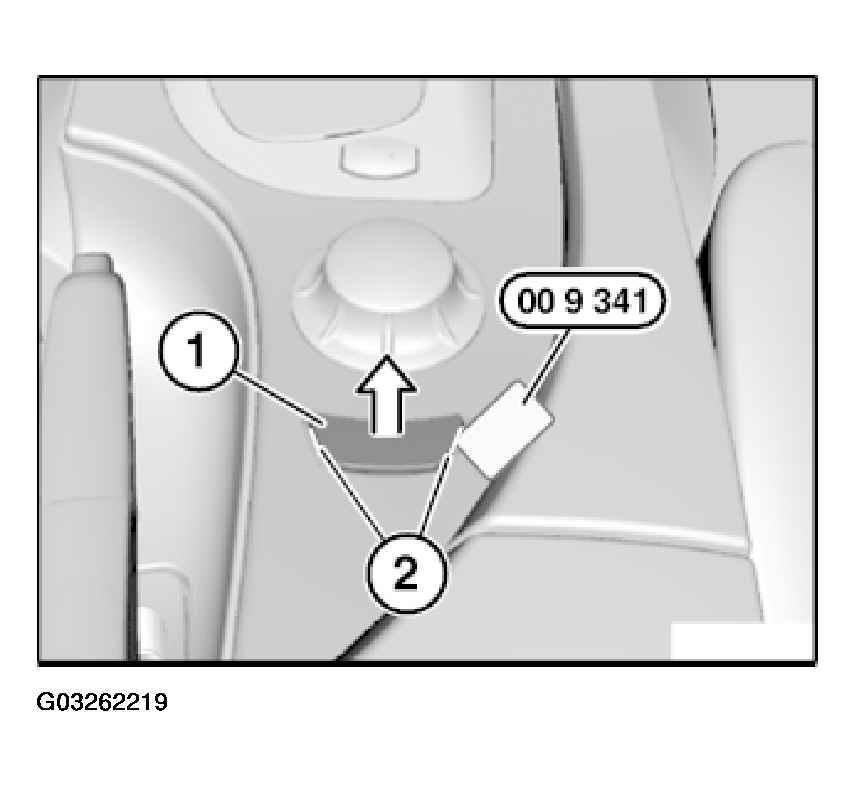

Unclip button unit (1) with special tool 00 9 341 at retaining points (2) and lever out in direction of arrow.
Unlock and disconnect associated plug connection, remove button unit (1).
