61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .

Unscrew nut (1).

Unlock catches (2) and remove rocker switch for side window operation (3) downwards out of rear door trim panel (4).

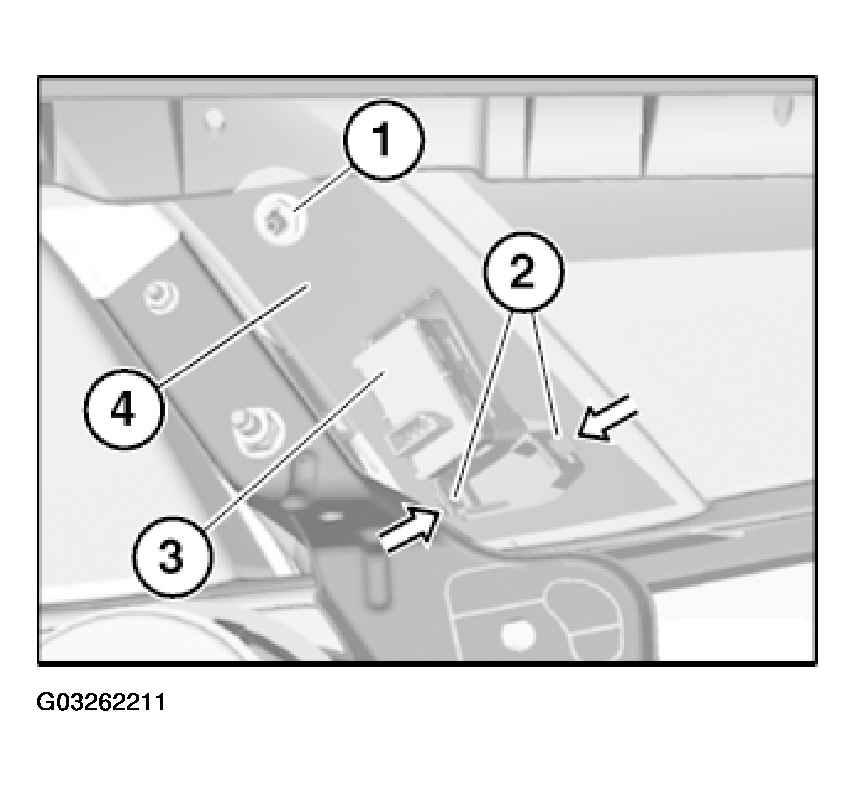

Fig 1: Removing Rocker Switch For Side Window Operation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hook (1) and plastic pin (2) must not be damaged.

Make sure rocker switch for side window operation (3) is installed in correct position.

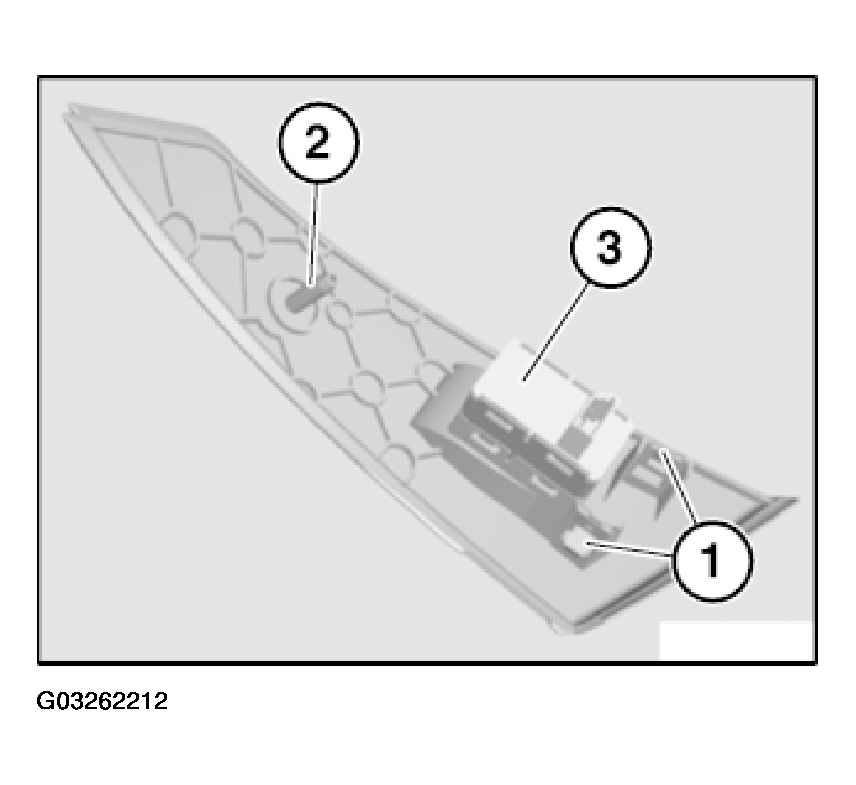

Fig 2: Identifying Rocker Switch For Side Window Operation

Courtesy of BMW OF NORTH AMERICA, INC.
