61 31 104 Removing and installing/replacing shifters for SMG transmission (both)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
NOTE:

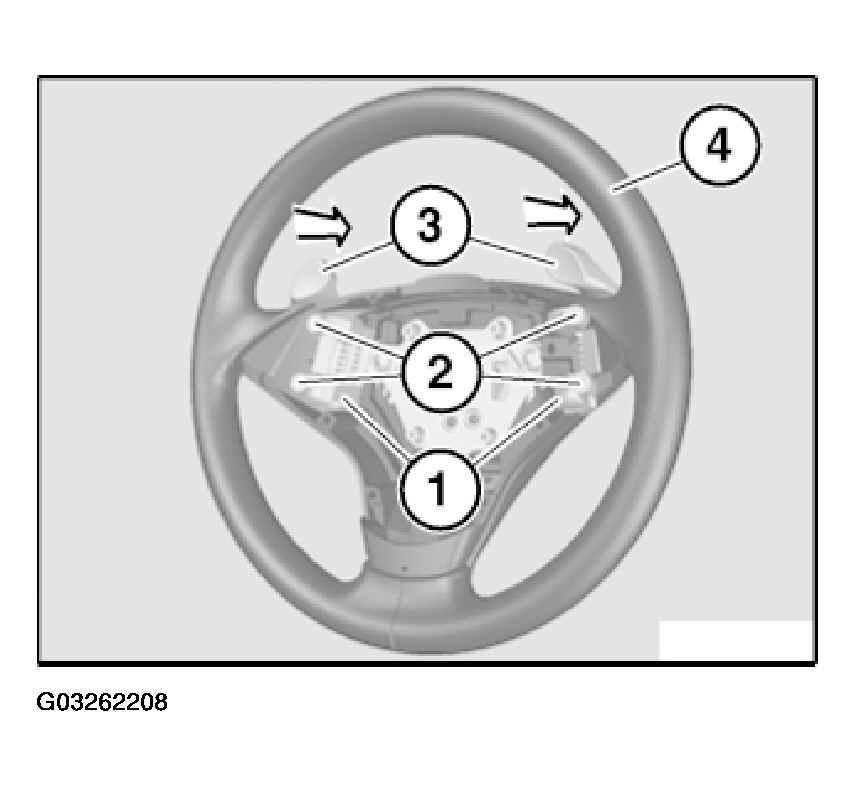

Illustrations show sports steering wheel (4) removed.
Disconnect plug connections (1).
Loosen screws (2).
Remove both shifters for SMG transmission (3) in direction of arrow from sports steering wheel (4).
Installation:
Make sure electrical leads are correctly routed.
