61 31 083 Removing and installing/replacing switch for unlocking rear lid
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

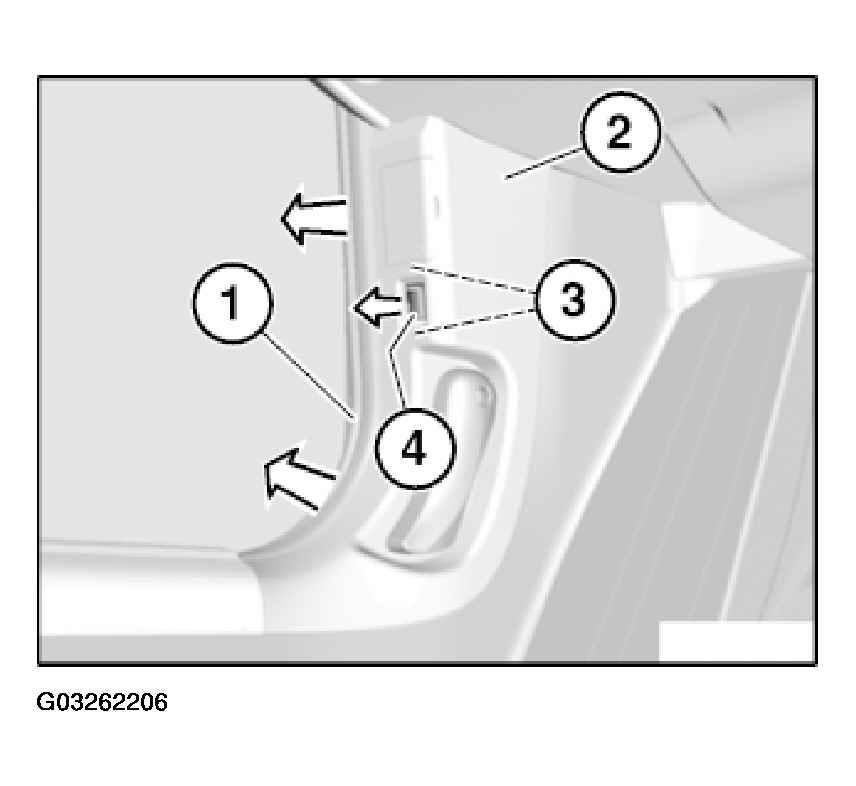

To unclip switch for unlocking rear lid (4), partially detach mucket (1).
Grip from outside behind footwell side trim panel on A-pillar on left (2).
Press retaining lugs (3) together and feed switch for unlocking rear lid (4) out of footwell side trim panel on A-pillar on left (2).
Disconnect associated plug connection and remove switch for unlocking rear lid (4).
