61 31 052 Removing and installing/replacing center console switch cluster (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove MIDDLE TRIM FOR INSTRUMENT PANEL .

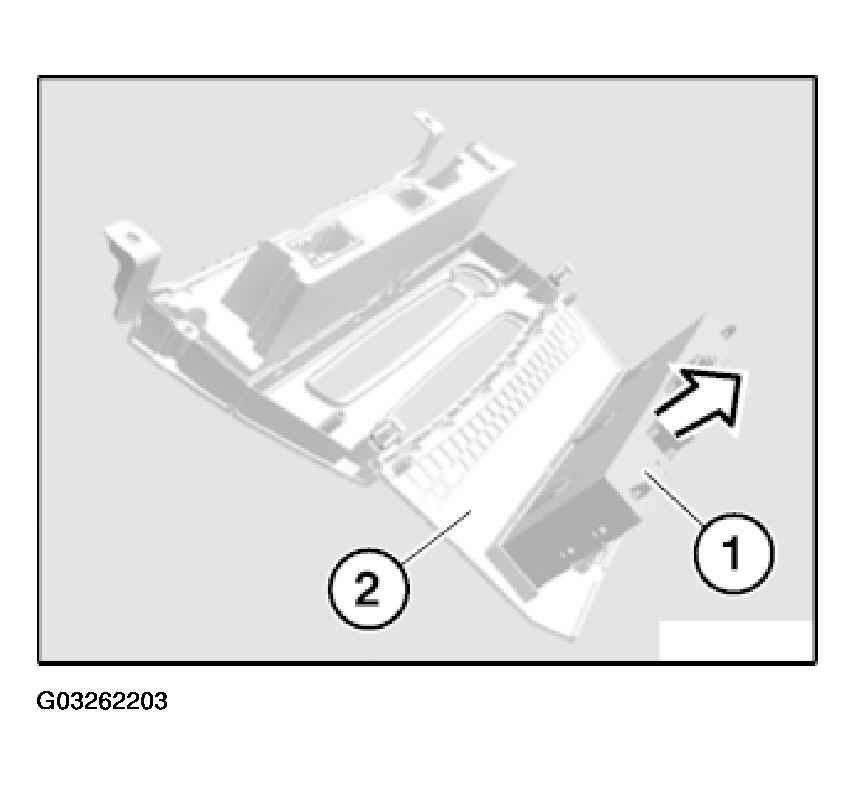

Unclip switch cluster in center console (1) all round and remove from middle trim for instrument panel (2).

Fig 1: Removing Switch Cluster From Middle Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
