61 36 570 Removing and installing/replacing windshield wiper system relay

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LOWER SECTION OF MICROFILTER HOUSING ON RIGHT .

Release screws (1). Remove electronics box cover (2).

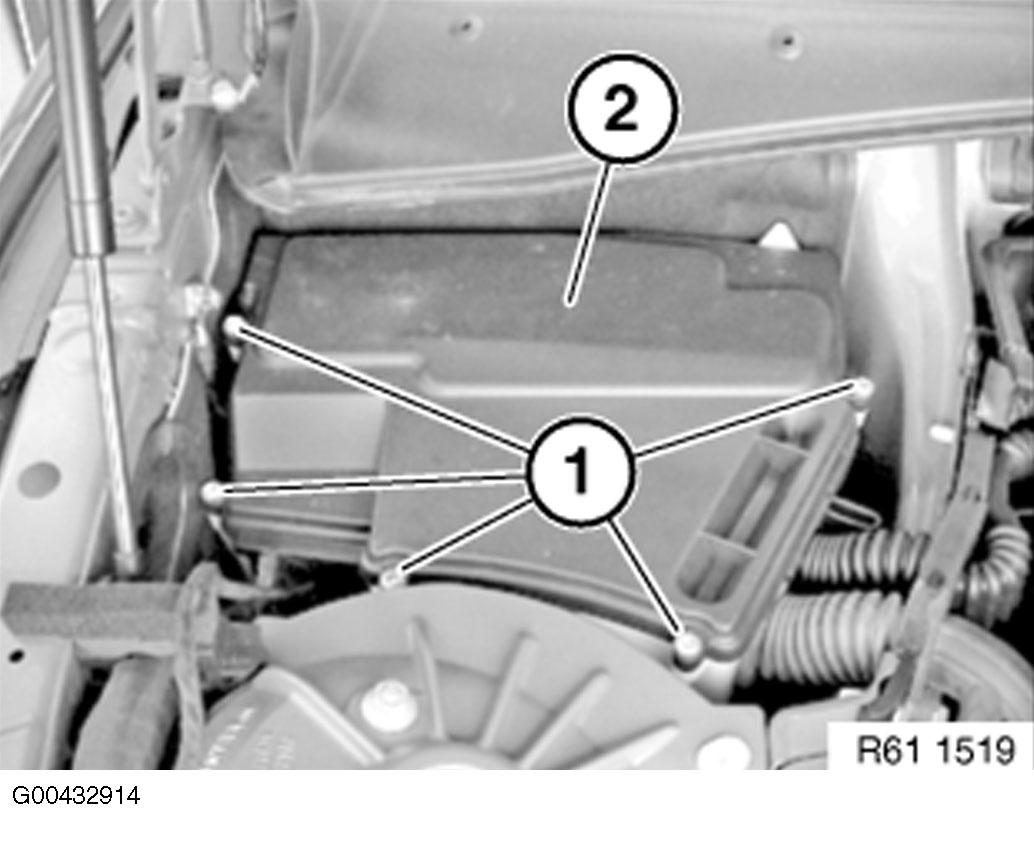

Fig 1: Removing Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach relay (1).

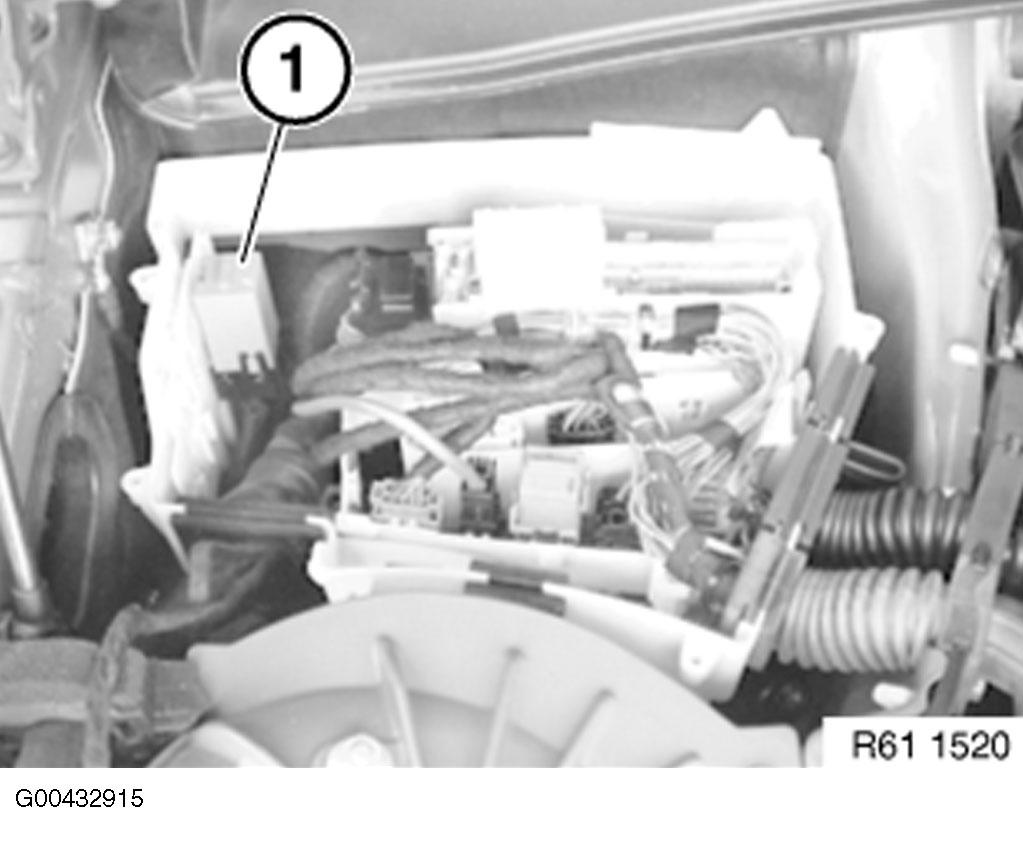

Fig 2: Detaching Relay

Courtesy of BMW OF NORTH AMERICA, INC.
