61 36 520 Removing and installing / replacing relief relay (EDC)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Remove storage tray for car jack.
- Remove spare wheel.
- Remove control unit cover.

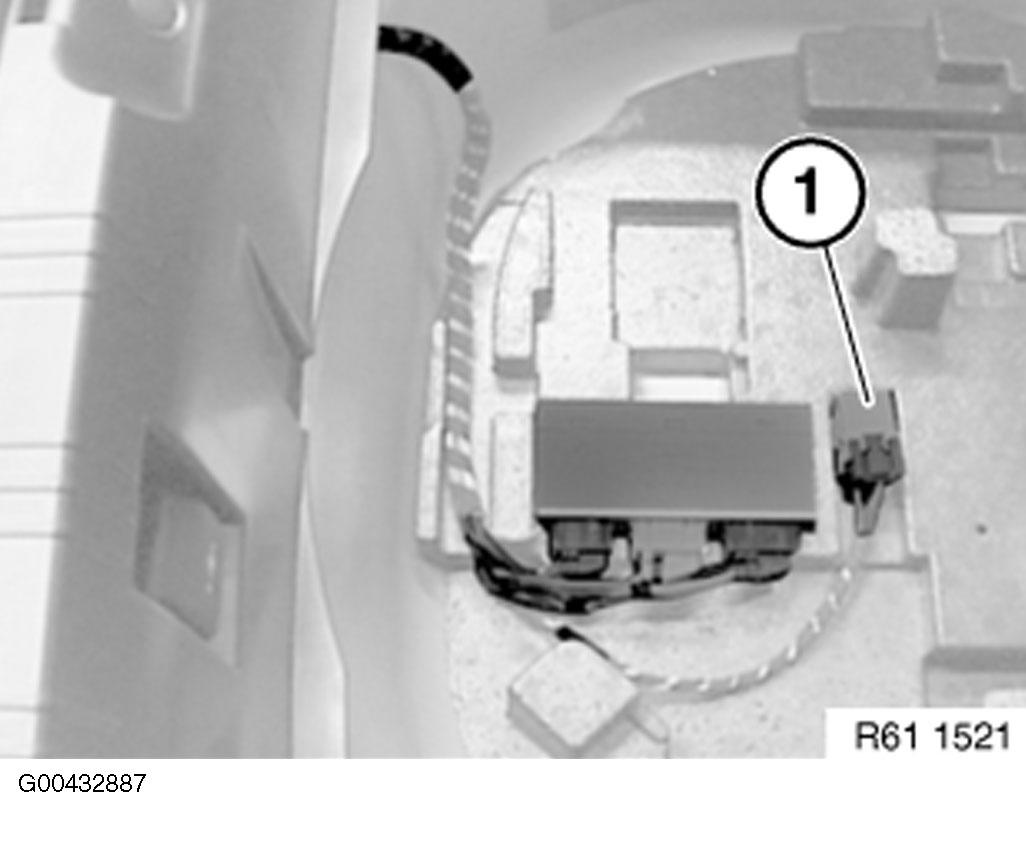

Detach relay (1).
