61 35 975 Removing and installing/replacing bumper antenna for comfort access system
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks: Remove REAR BUMPER TRIM .

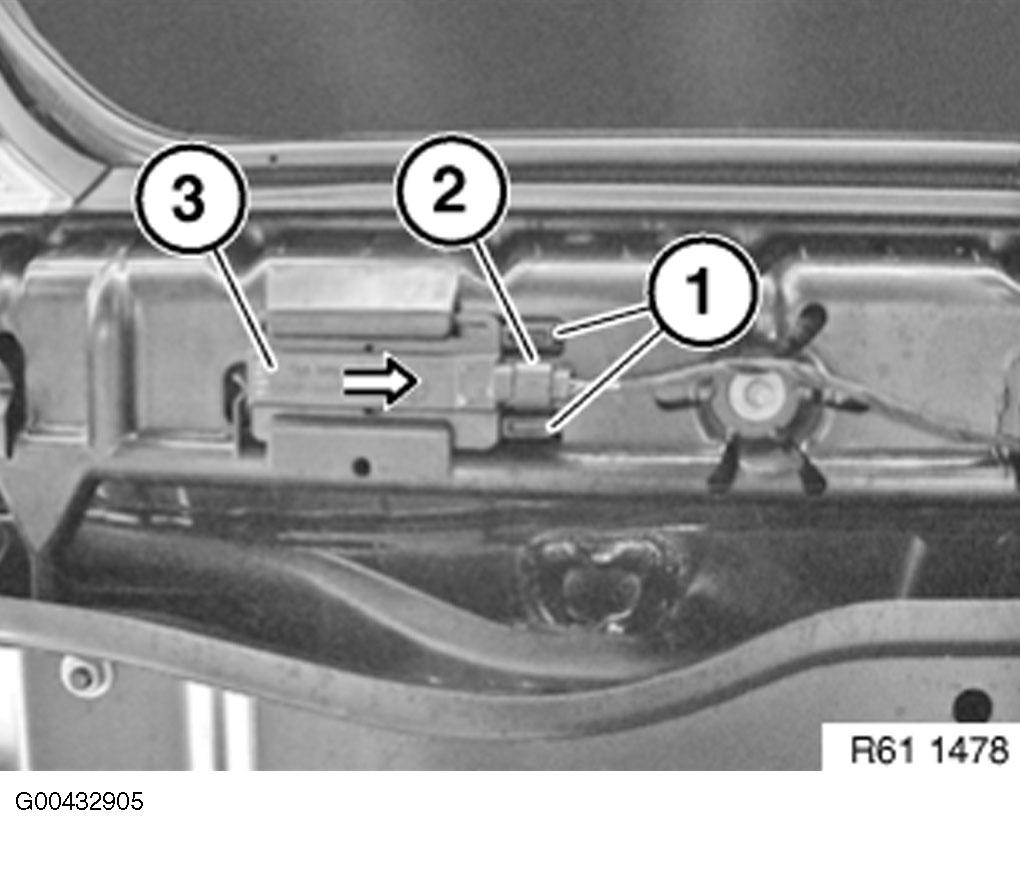

Disconnect plug connection (2). Press catches (1), feed out bumper antenna for comfort access system (3) in direction of arrow and remove.
