61 35 954 Removing and installing/replacing interior antenna for comfort access system (rear)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove STORAGE COMPARTMENT .

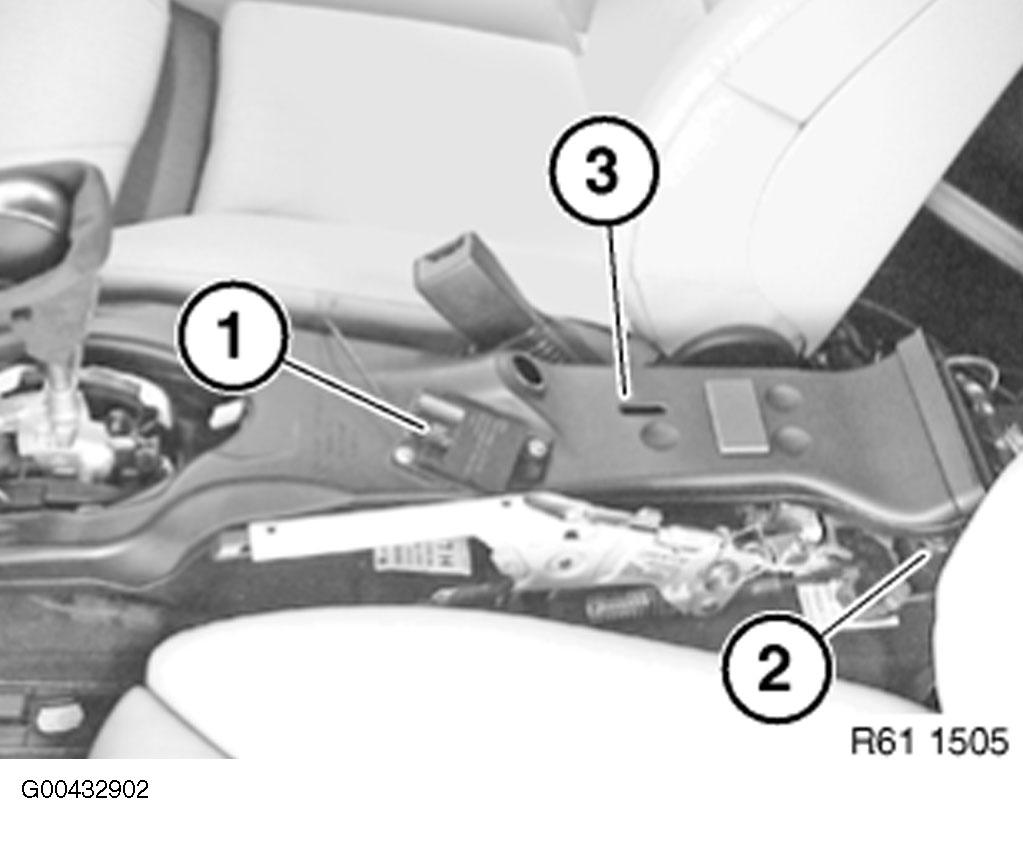

Disconnect plug connection (1). Disconnect plug connection (2). Remove rear compartment air duct (3).

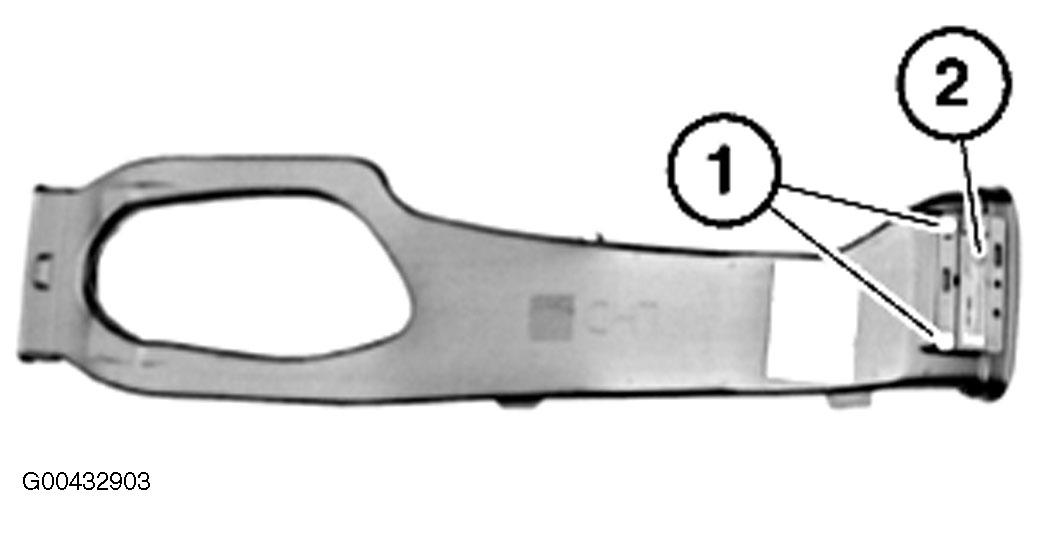

Release screws (1). Remove interior antenna for comfort access system (2).
