61 35 001 Removing and installing (replacing) trailer module

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM .
If necessary, remove storage tray for car jack
If necessary, remove spare wheel
Remove control unit cover

M5 only:

Remove BATTERY

NOTE: Depending on the equipment specification, the position of the trailer module (2) can vary.

Lift trailer module (2) out of equipment mounting (3).

Disconnect plug connection (1).

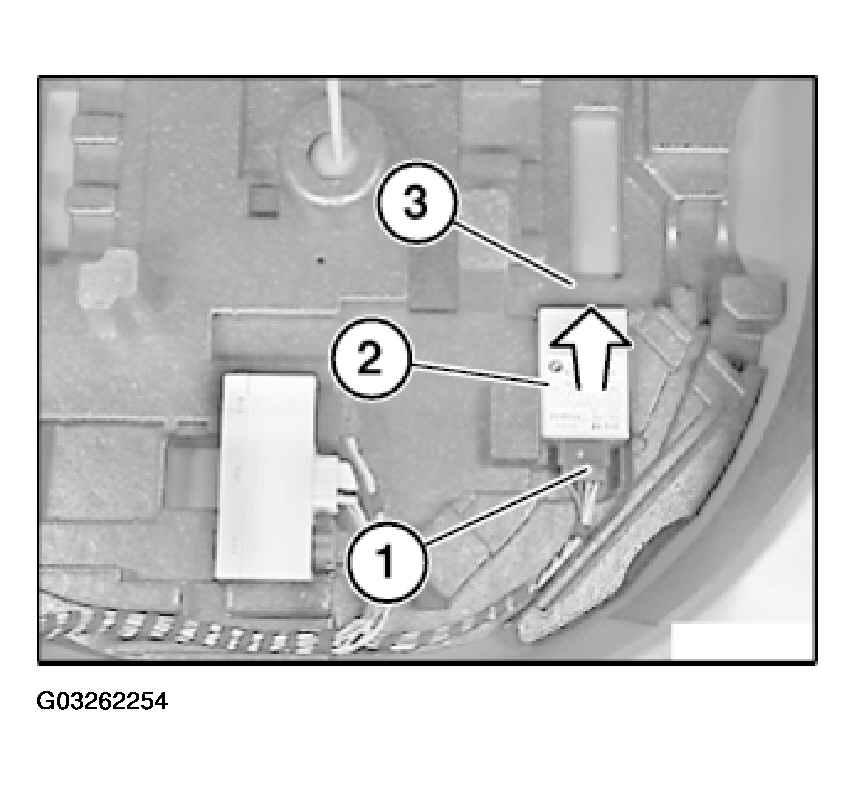

Fig 1: Identifying Trailer Module, Connector, And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
