61 20 005 Testing battery with battery tester
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Check is not permissible for AGM batteries!
WARNING:
Read and comply with SAFETY INFORMATION pertaining to vehicle battery.
Necessary preliminary tasks:
Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
NOTE:

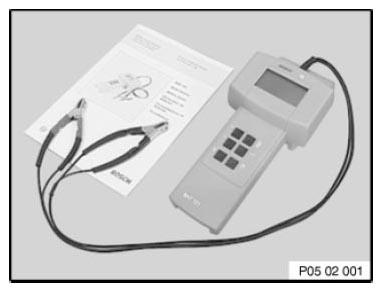

Use BMW-recommended battery tester to test the battery.
Procedure:
- Turn off ignition and close doors
- Connect battery tester directly to battery terminals
- Select Battery test and confirm
- Enter vehicle identification number
- Enter battery data
- Carry out battery test
