61 12 200 Replacing wiring harness in left or right front door

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close front side window completely.
Remove FRONT DOOR TRIM PANEL .

IMPORTANT: Follow instructions for HANDLING OPTICAL FIBRES .

Unlock plug connections (1) and disconnect.

Release door wiring harness (2) at point (3).

Unclip door wiring harness (2) at points (4).

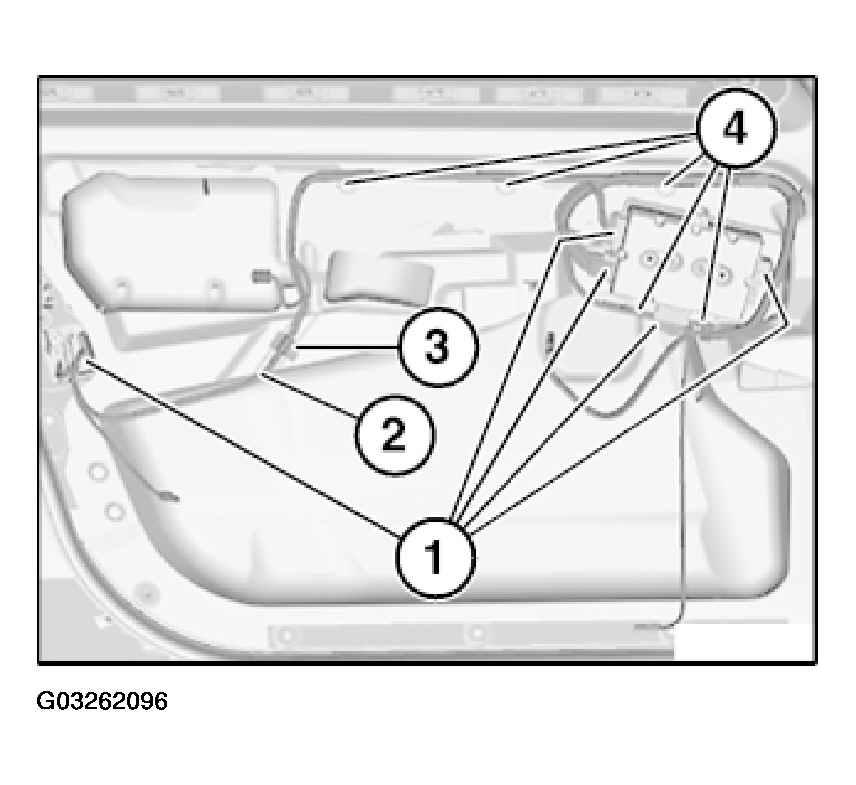

Fig 1: Disconnect Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

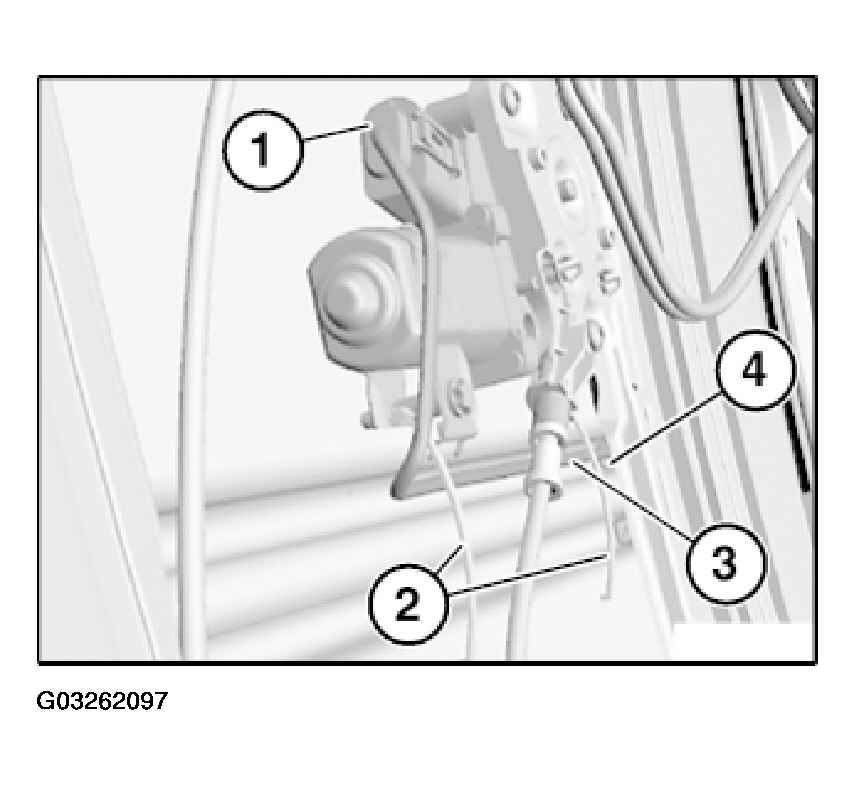

Detach SOUNDPROOFING on front door in working area.

Unfasten plug connection (1) and disconnect.

Cut through cable ties (2).

Disconnect door wiring harness (3) at retainer (4).

Unclip door wiring harness (3) in area of front window guide.

Installation:

Make sure door wiring harness (3) is correctly laid.

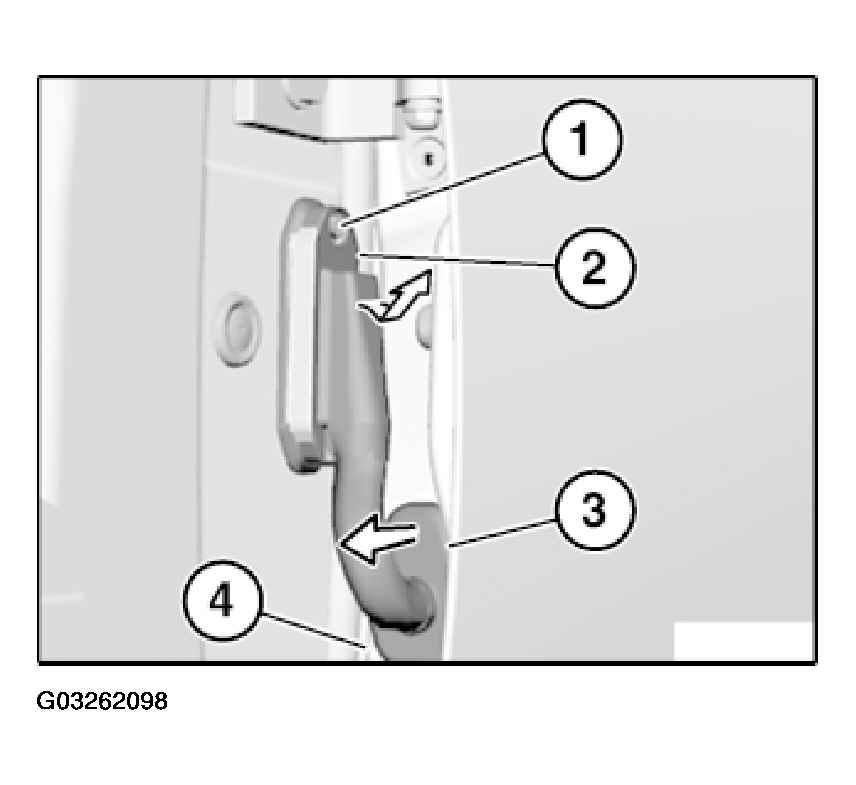

Fig 2: Disconnect Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Front side panel shown removed for purposes of clarity.

Release screw (1), fold door wiring harness plug on A-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.

Pull rubber grommet (3) in direction of arrow out of front door (4).

Feed out door wiring harness towards front to A-pillar and remove.

Fig 3: Removing Door Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
