54 12 115 Removing and installing glass slide/tilt sunroof lid
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Gaiter on left and right.

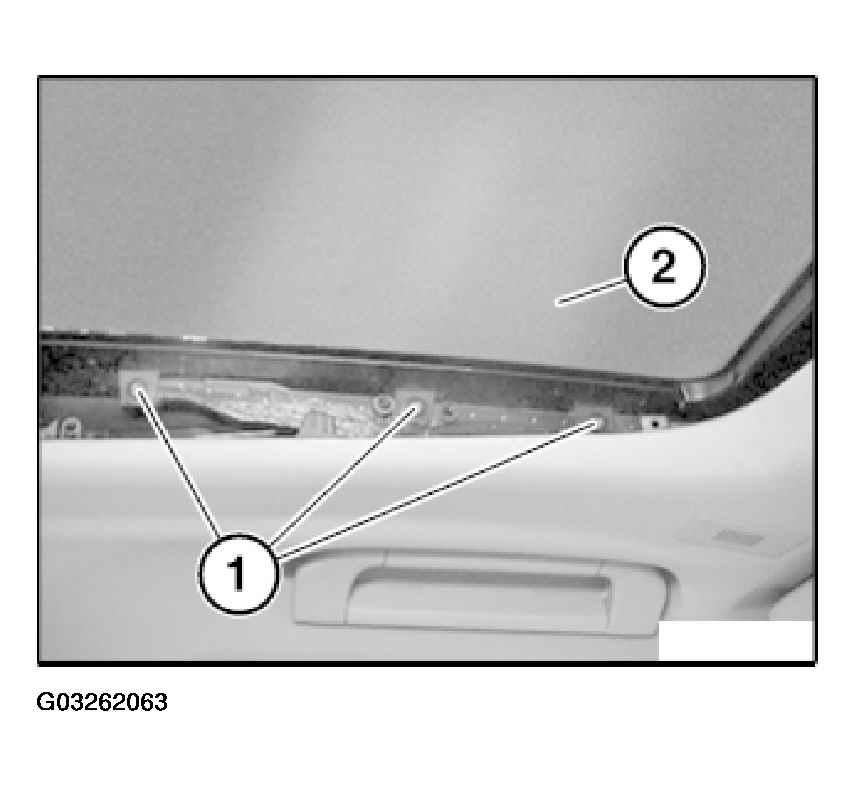

Release left and right screws (1).
Remove glass sunroof lid (2) towards top.
Installation:
Replace screws (1).
Insert screws (1) but do not tighten down yet.
Adjust and initialize sunroof lid.
