52 26 311 Removing and installing/replacing lock for left or right rear seat backrest (through-loading system)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock rear seat backrest and fold down.

NOTE: If the rear seat backrest cannot be unlocked, carry out emergency opening.

Unclip Bowden cable from fixture (1).

Loosen screws (2).

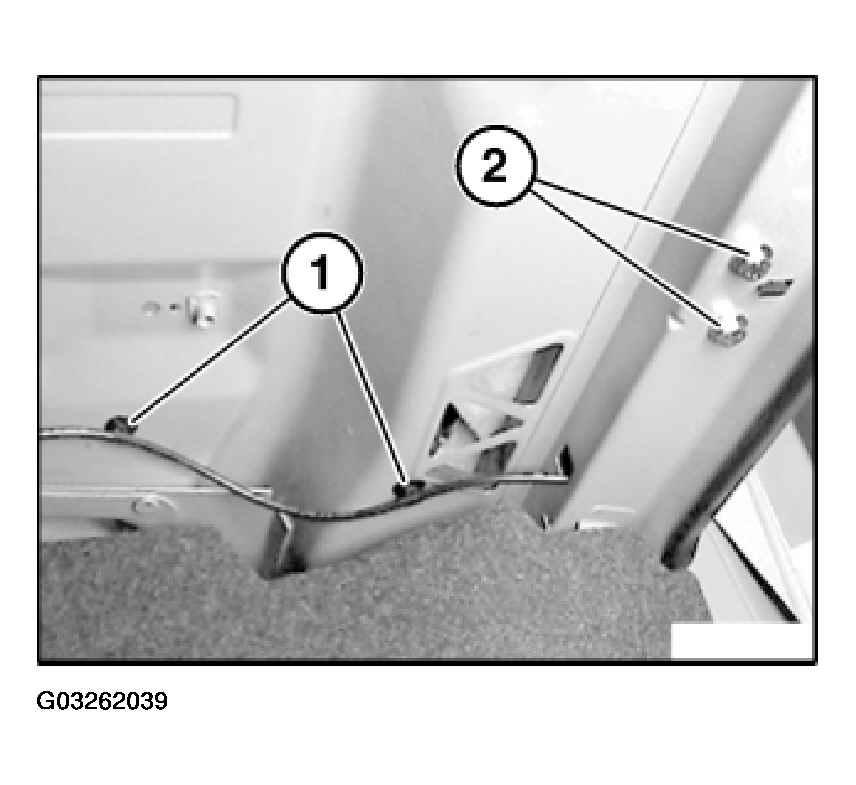

Fig 1: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed lock (1) out of installation opening slightly and unclip Bowden cable (2).

Remove lock completely from installation opening.

Installation:

Catches (2) on lock must not be damaged.

Bowden cable must be correctly anchored in catches (2).

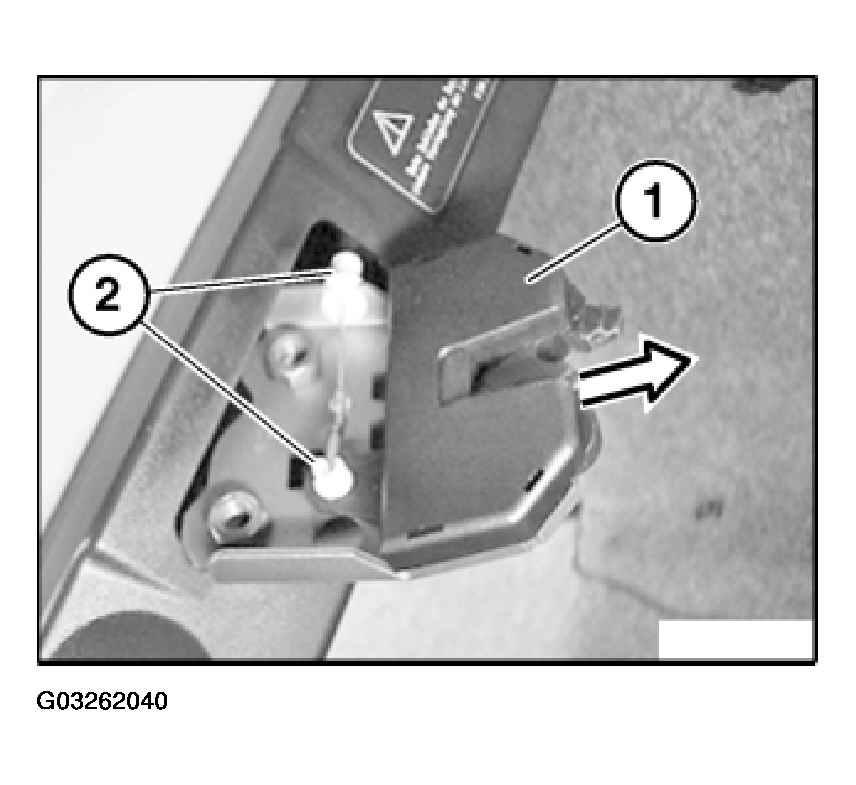

Fig 2: Removing Lock Completely

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide guide lug (1) of lock into opening (2).

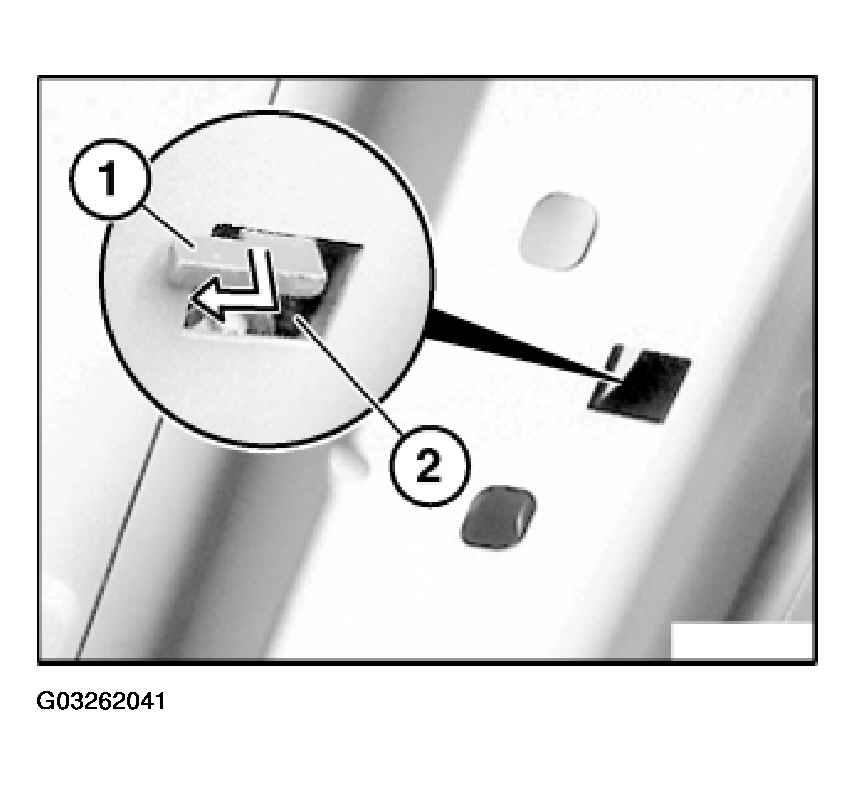

Fig 3: Sliding Guide Lug Of Lock Into Opening

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjustment of lock:

Slacken screws
Firmly push engaged backrest back
Tighten down screws
