Special tools required:

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 317

Unclip Bowden cable (1).

Loosen screws (2).

Unlock catch (3) to center of car and at same time unclip actuator towards bottom (4). If necessary, insert special tool 00 9 317 between actuator and body for levering out.

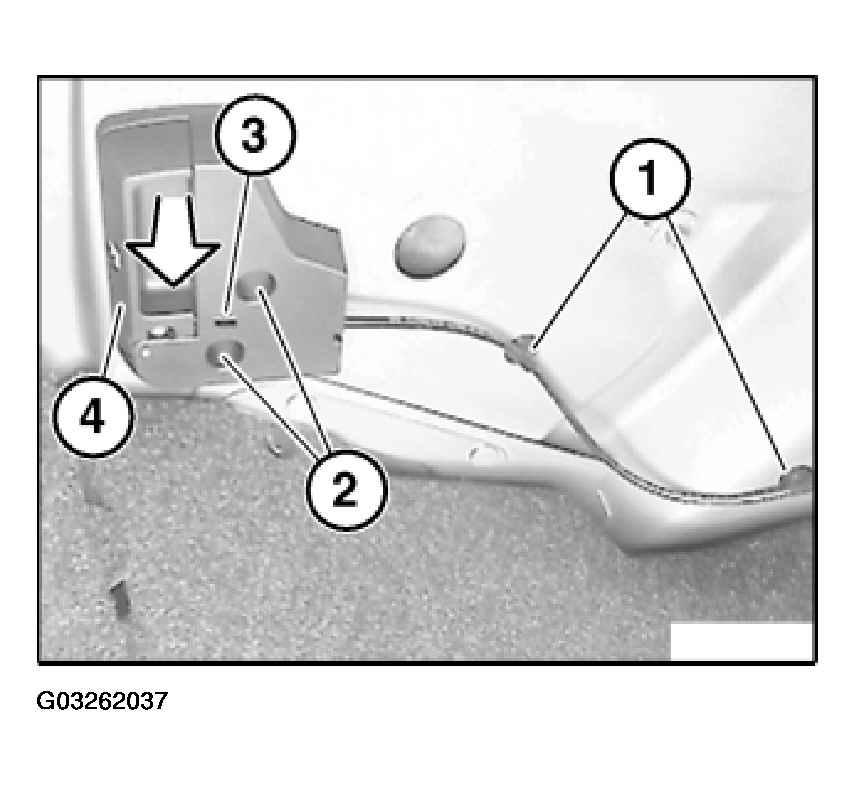

Fig 1: Uncliping Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and (2) of actuator (3) must not be damaged.

Bowden cable (4) must be correctly engaged in actuator (3).

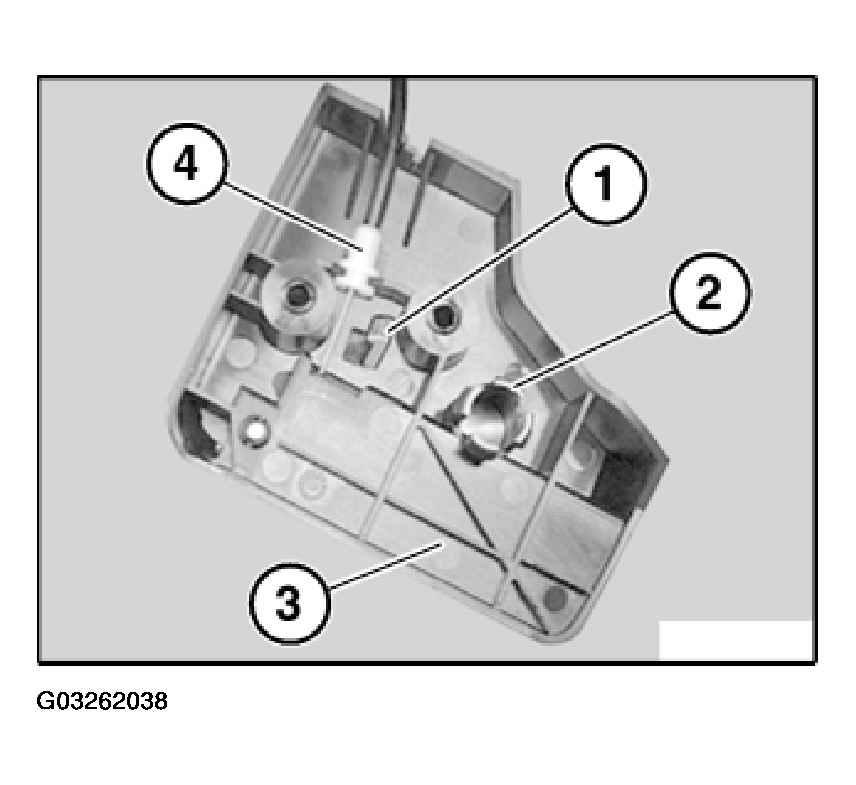

Fig 2: Identifying Catches, Actuator And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
