52 26 085 Removing and installing/replacing backrest frame for right rear seat (through-loading system)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove backrest cover with padding. See 52 26 412 Replacing Backrest Cover For Right Rear Seat (Through-Loading System) .
Replacement only:

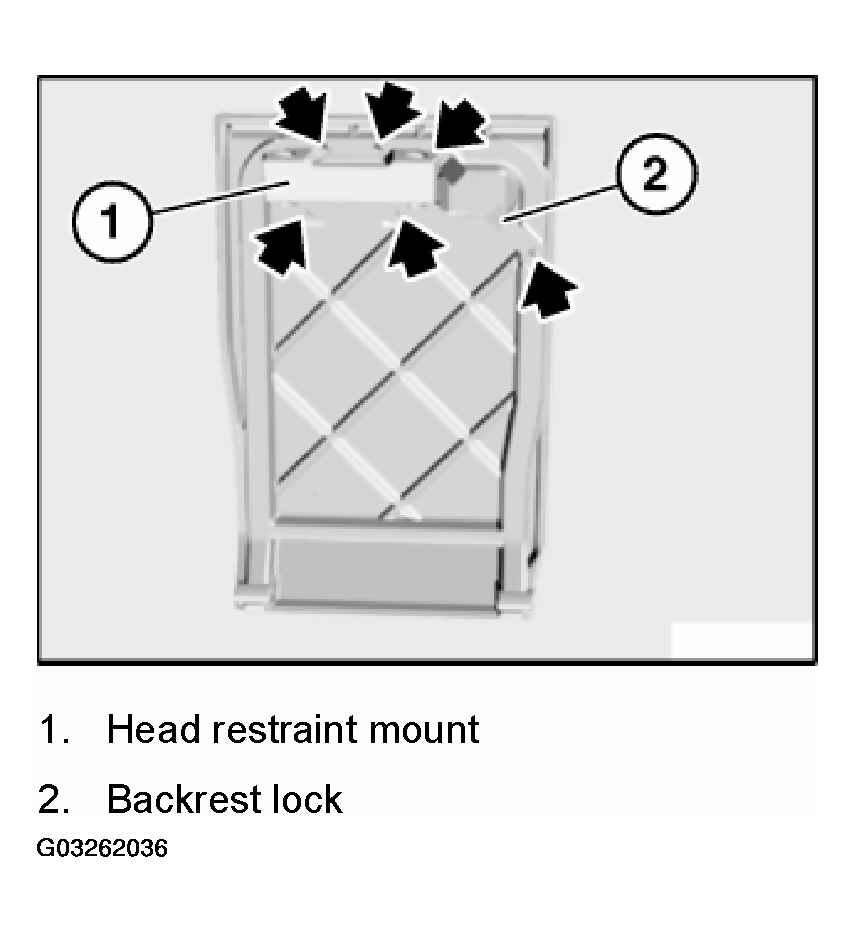

Release all screws and remove parts:
- Head restraint mount
- Backrest lock
