Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove head restraint from rear seat

Backrest
Guide sleeve of head restraint
Retaining lug
Head restraint mount

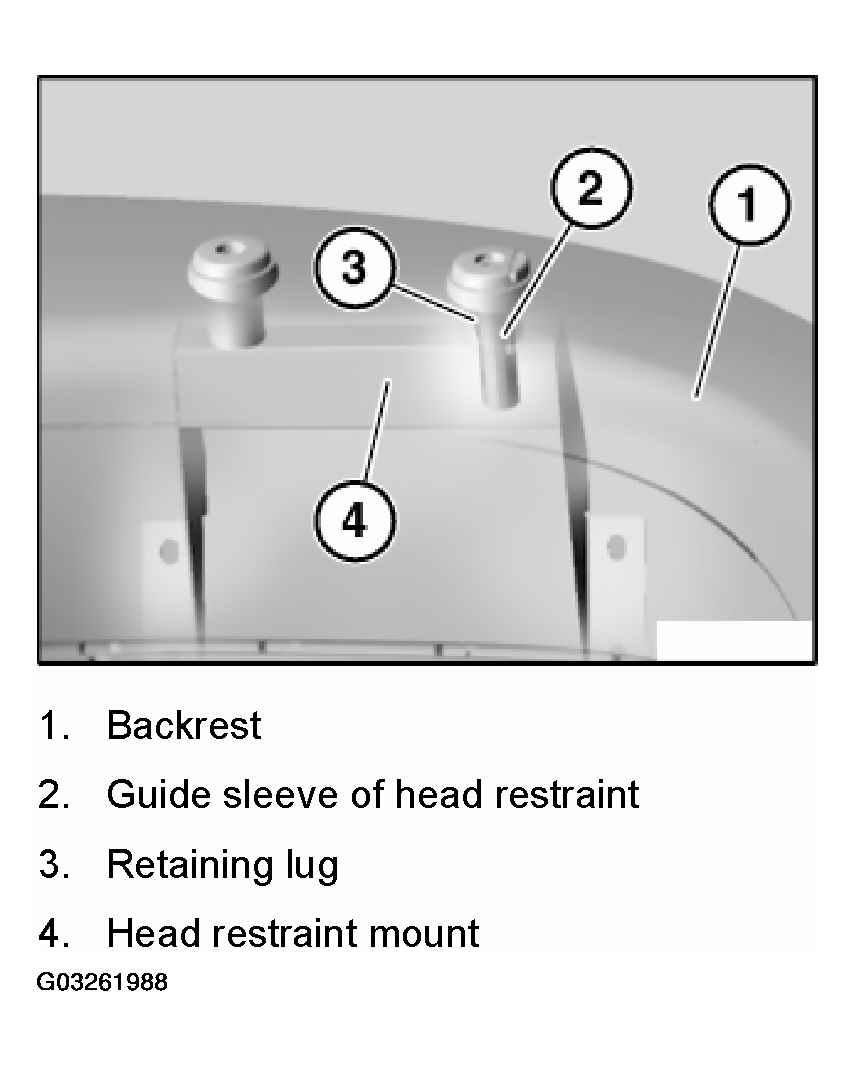

Fig 1: Identifying Head Restraint Components

Courtesy of BMW OF NORTH AMERICA, INC.

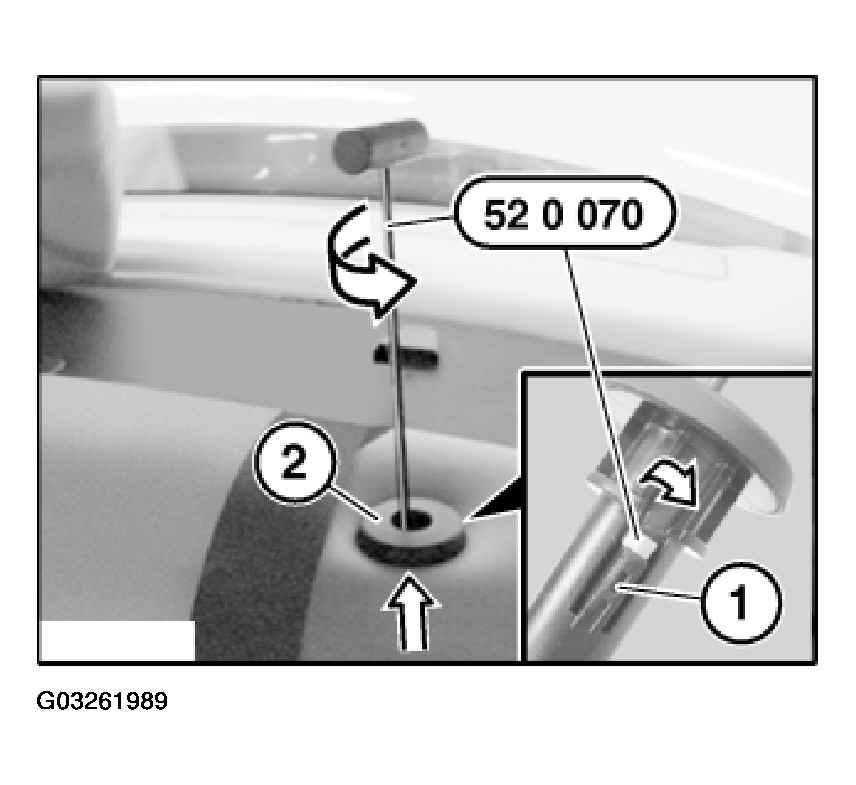

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.

Feed release tongue of special tool into rear gap on retaining lug (1).

Turn tool to release sleeve (2) and pull out towards top.

Installation:

Replace faulty sleeves.

Fig 2: Replacing Faulty Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.
