Section 369 (Seats - Repair Instructions)
>>
Rear Seat (Normal)
>>
52 24... Overview of basic rear seat
52 24... Overview of basic rear seat
WARNING:
This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

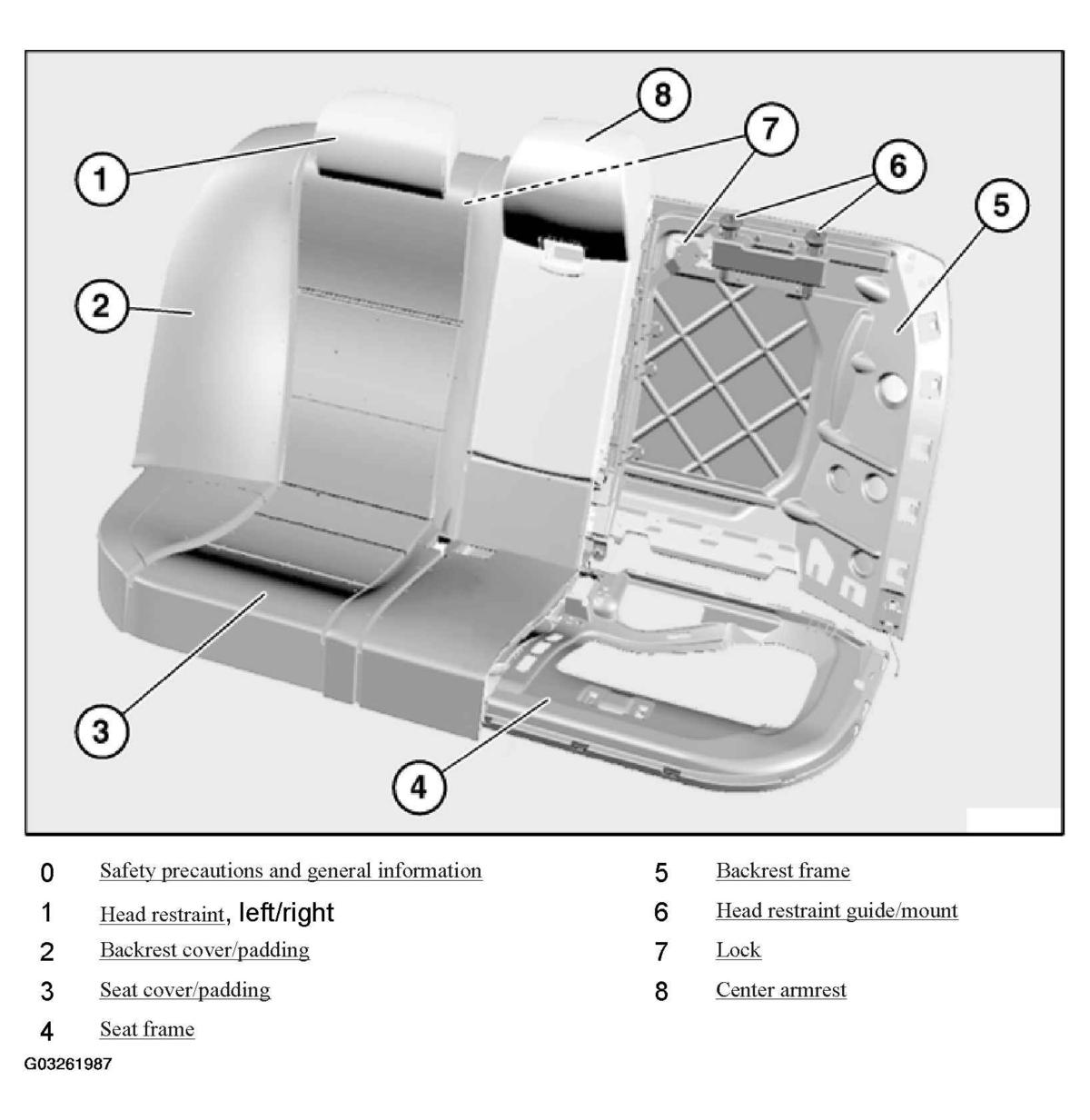

Fig 1: Overview Of Basic Rear Seat
Courtesy of BMW OF NORTH AMERICA, INC.
