52 24 045 Removing and installing/replacing backrest frame
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove backrest cover with padding. See 52 24 408 Replacing Backrest Cover (Basic) For Left Or Right Rear Seat .
Replacement only:

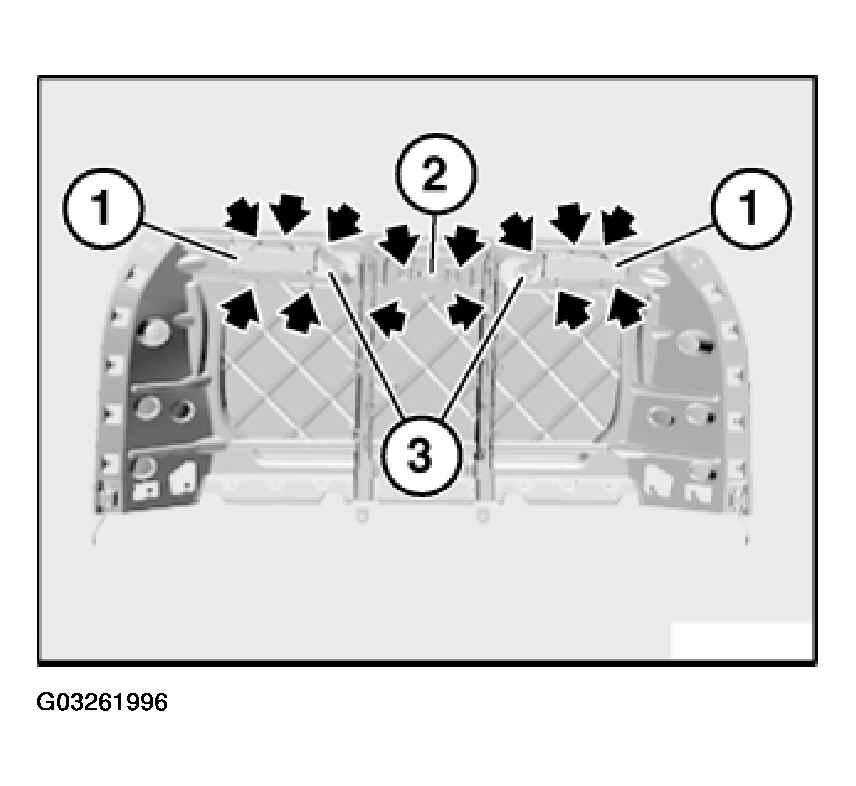

If necessary, release all screws and remove parts:
DESCRIPTION
| No. | Description | Tightening torque |
|---|---|---|
| 1 | Head restraint mount | 52 24 2AZ |
| 2 | Armrest lock | 52 24 3AZ |
| 3 | Backrest lock | 52 24 4AZ |
