52 24 030 Removing and installing complete armrest (basic) for rear seat backrest

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

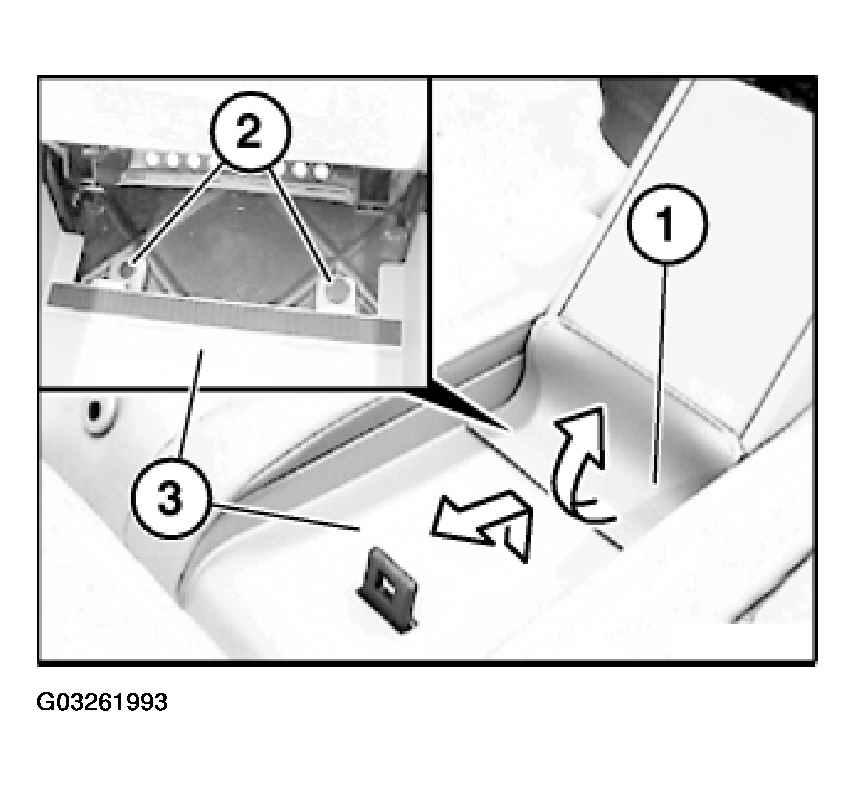

Pull up cover (1) between armrest and rear seat back.

Release expansion rivets (2) on trim.

Remove trim (3) towards top, feeding out over armrest buckle latch.

Fig 1: Removing Trim Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

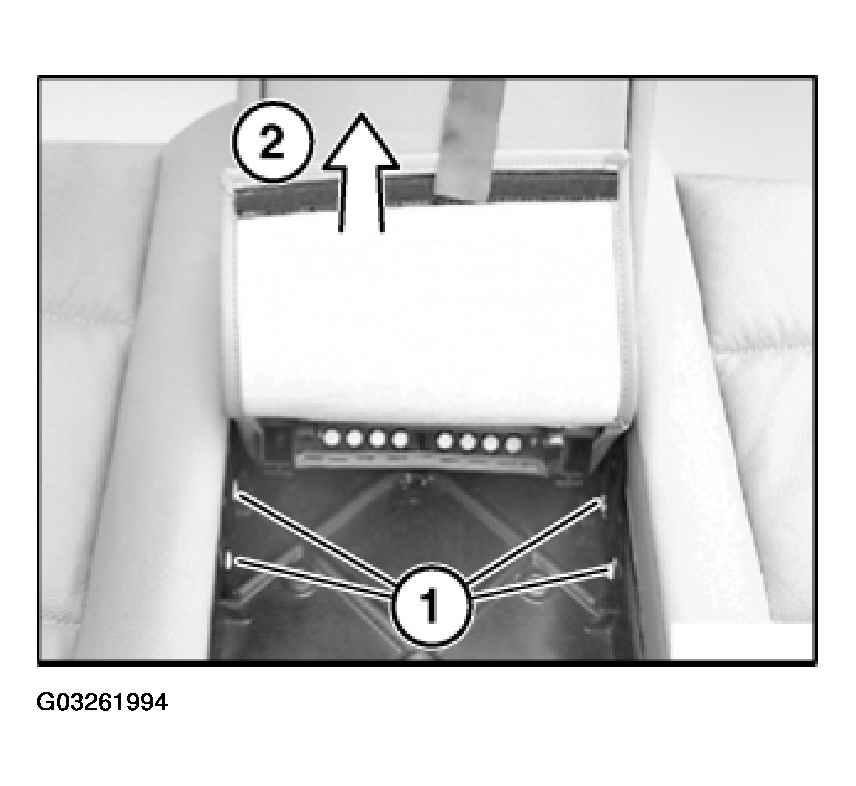

Release screws (1).

Tightening torque, see 52 24 5AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .

Remove armrest (2) towards front.

Fig 2: Removing Armrest Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.
