52 24 005 Removing and installing or replacing rear seat

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left/right towards top.

Lift out seat.

Installation:

Feed belt buckles (1) through designated openings into correct location.

Guide lap belt behind seat edge upwards.

Make sure ISOFIX covers are correctly engaged.

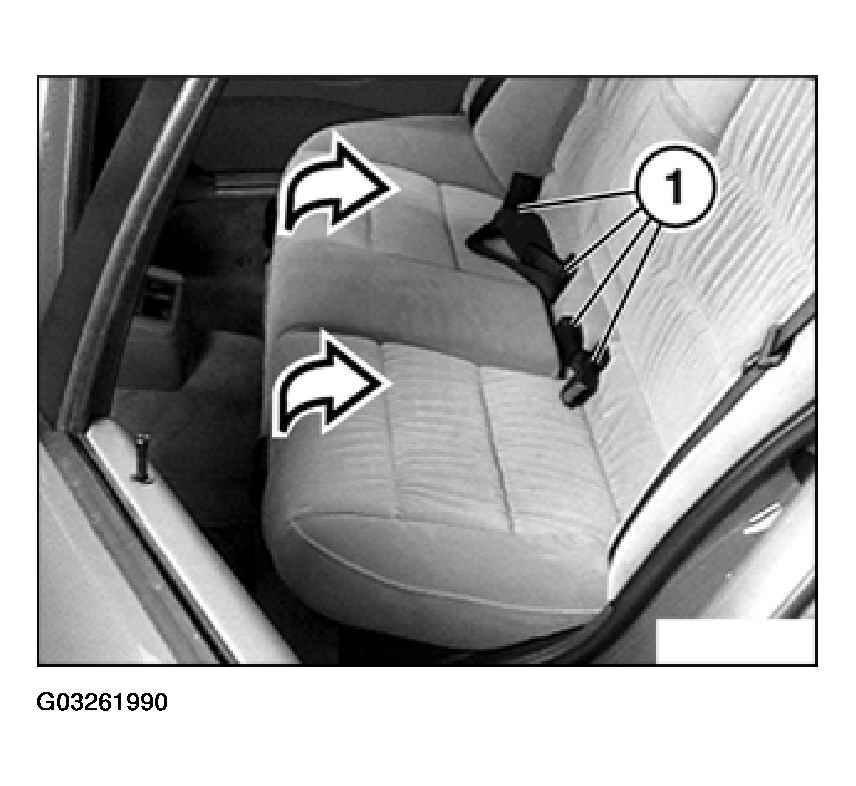

Fig 1: Feeding Belt Buckles Through Designated Openings Into Correct Location

Courtesy of BMW OF NORTH AMERICA, INC.

For op. ext. seat heating only:

Unfasten plug connection.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
