52 16... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

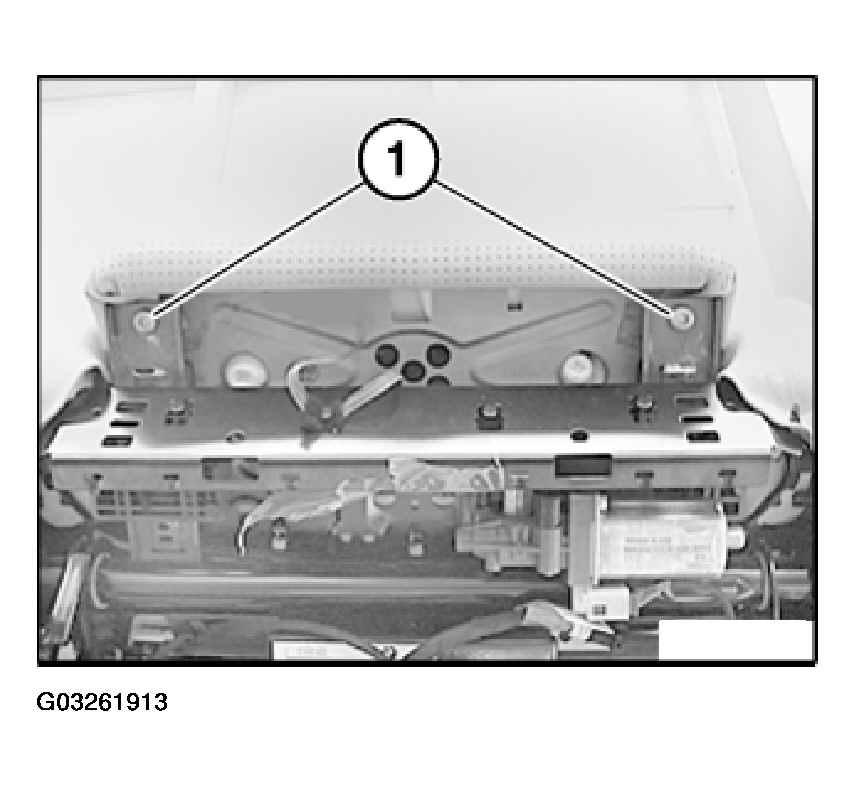

Release screws (1).

Installation:

Insert screws (1) with Loctite.

Fig 1: Inserting Screws With Loctite

Courtesy of BMW OF NORTH AMERICA, INC.

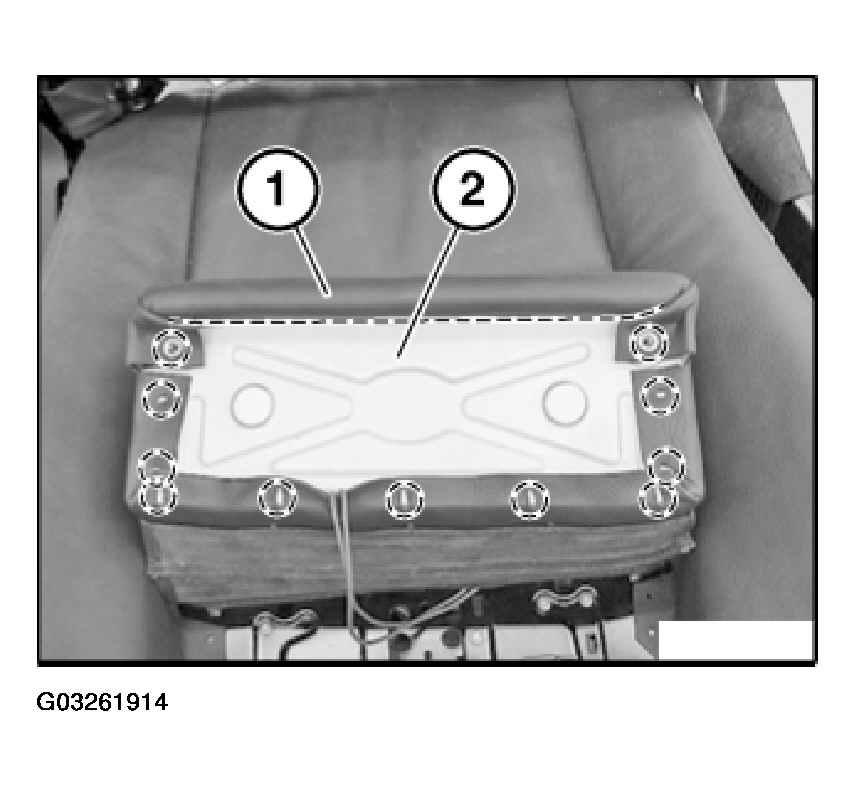

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

Fig 2: Removing Carrier For Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

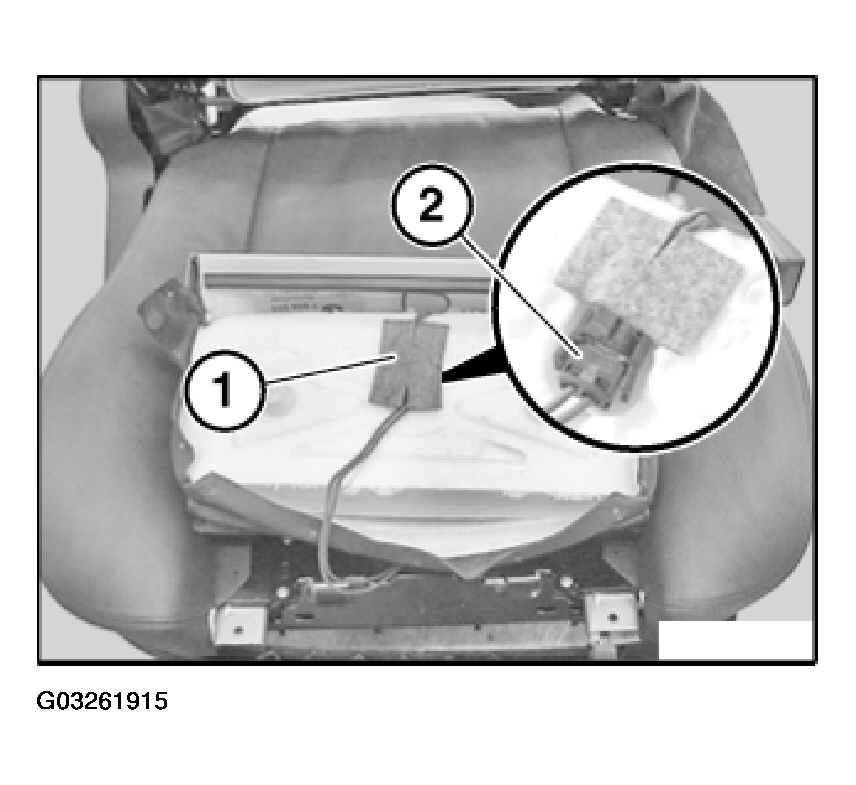

For seat heating optional extra only:

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation:

Ensure correct cable routing.

Remove padding from cover.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
