52 13 023 Removing and installing/replacing drive for left or right active seat

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. See 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .
Remove seat cover for front seat. See 52 13 400 Replacing Seat Cover For Left Or Right Front Seat (Normal/Semi-Electric) .

Release screws (1).

Tightening torque, see 52 10 6AZ in SEATS - TIGHTENING TORQUES - 525I & 530I (M54) .

Tip seat towards rear.

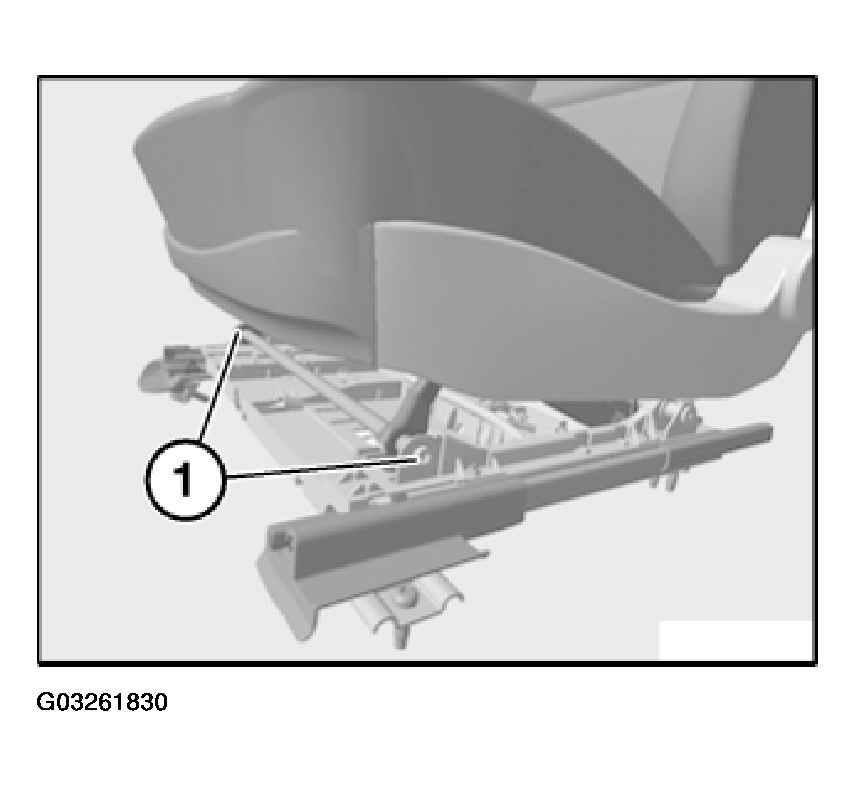

Fig 1: Tipping Seat Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip hydraulic pockets (1) with supports on left and right from flex mat.

NOTE: If necessary, release clips (2). Remove hydraulic pockets (1) from supports (3).

Feed hydraulic pockets (1) through flex mat towards bottom.

Detach retaining points for drive in area (4).

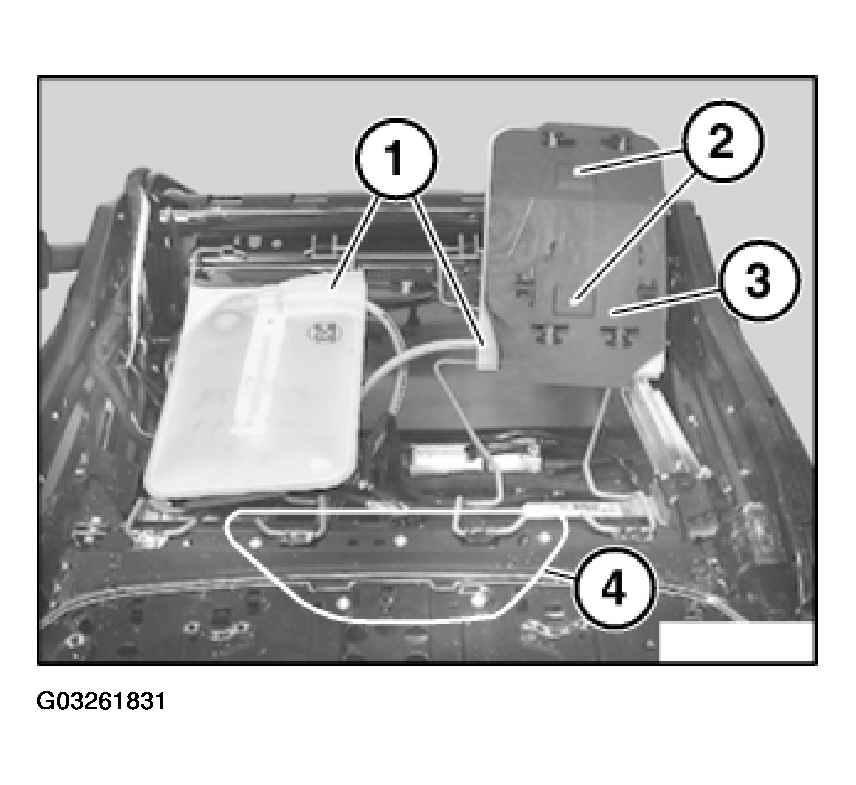

Fig 2: Detaching Retaining Points For Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Remove drive (1).

NOTE: Drive and hydraulic pockets form a single unit and can only be replaced as a single component.

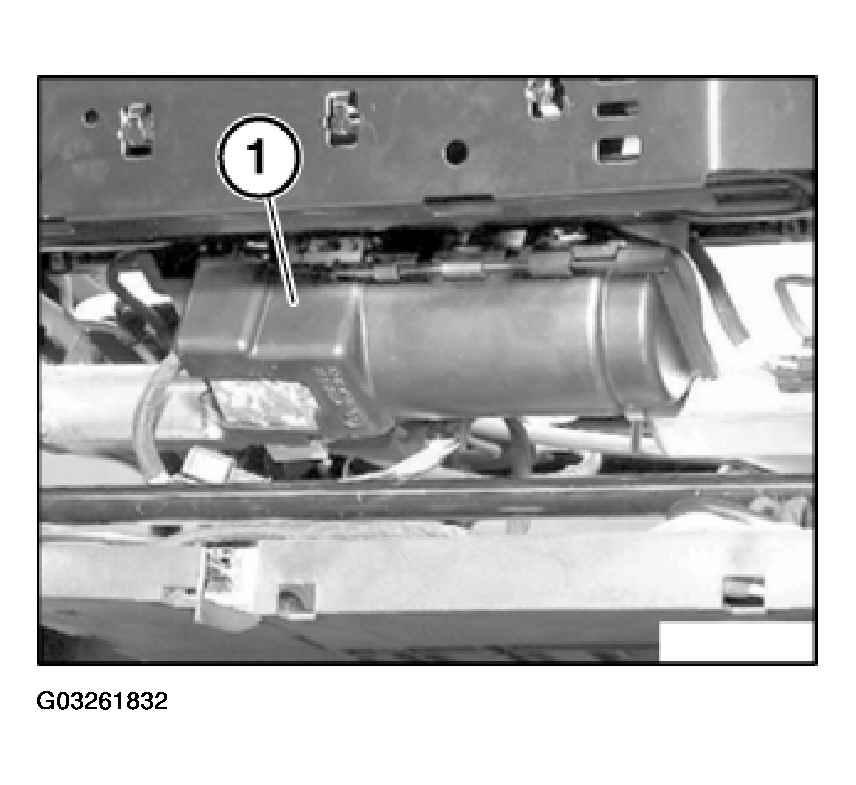

Fig 3: Removing Drive
