52 13 015 Removing and installing/replacing actuating unit on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove outer cover on front seat. 52 13 040 Removing And Installing/Replacing Outer Cover On Left Or Right Front Seat (Normal/Semi-Electric)

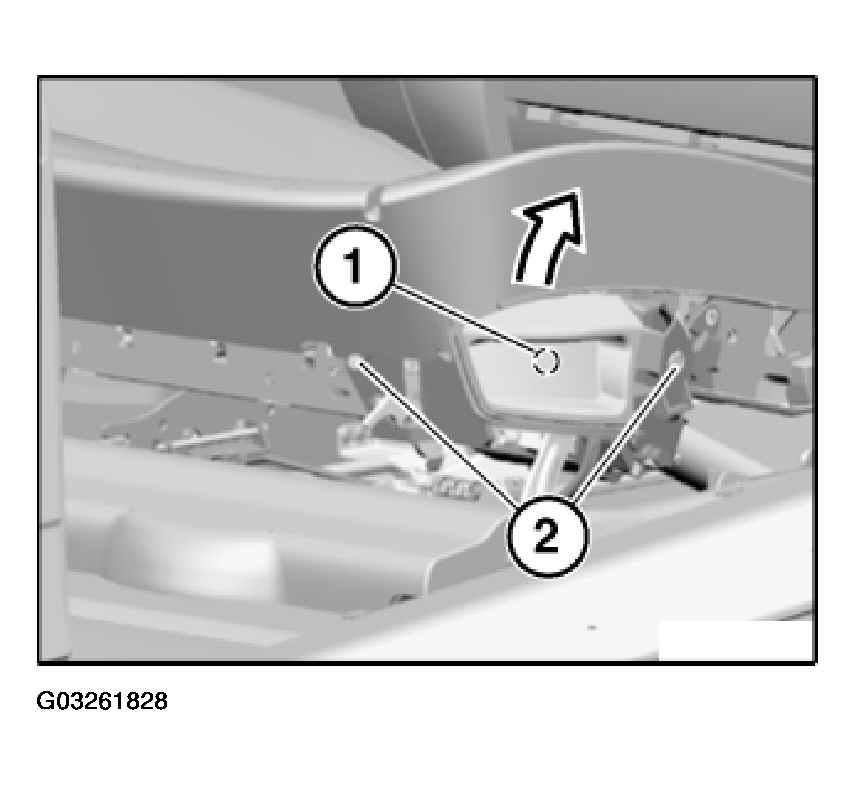

Pull lever and release screw (1).

Release screws (1) and remove actuating unit.

Fig 1: Removing Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

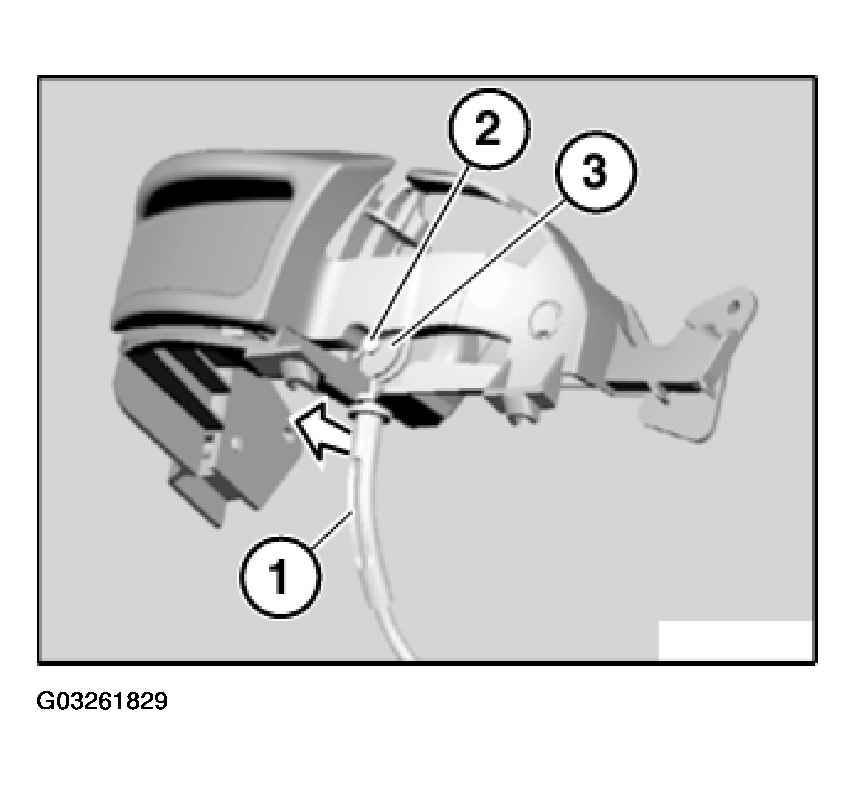

Unclip Bowden cable sleeve (1).

Feed Bowden cable nipple (2) out of fixture (3).

Fig 2: Feeding Bowden Cable Nipple Out Of Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
