52 13 014 Replacing Bowden cable for longitudinal adjustment on left or right front seat (normal/manual)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat, refer to 52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Semi-Electric) .

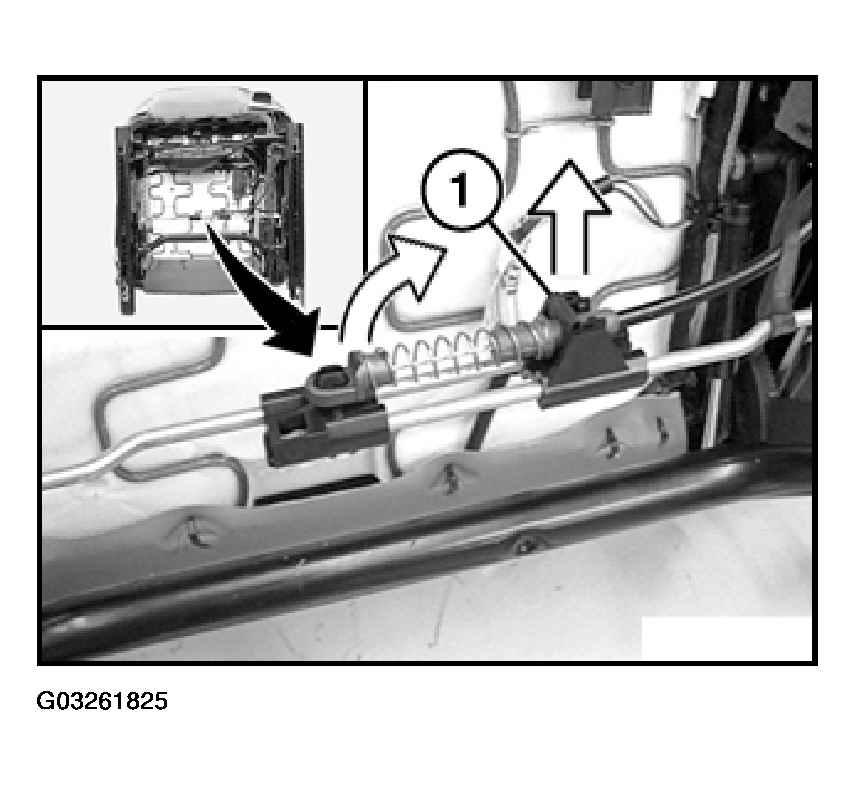

Remove clips (1) and pull Bowden cable forwards to remove.

Fig 1: Removing Clips And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

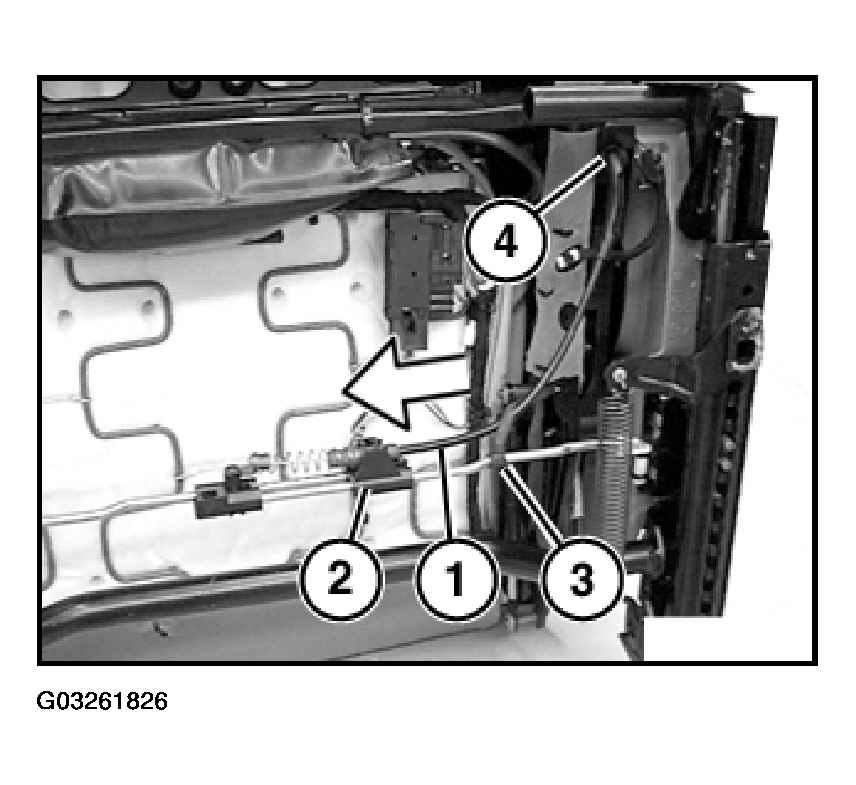

Slide Bowden cable (1) out of guide (2). Twist Bowden cable through 90° and lift out of support (4).

Installation:

Route Bowden cable (1) behind rubber tape (3).

Fig 2: Sliding Bowden Cable Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

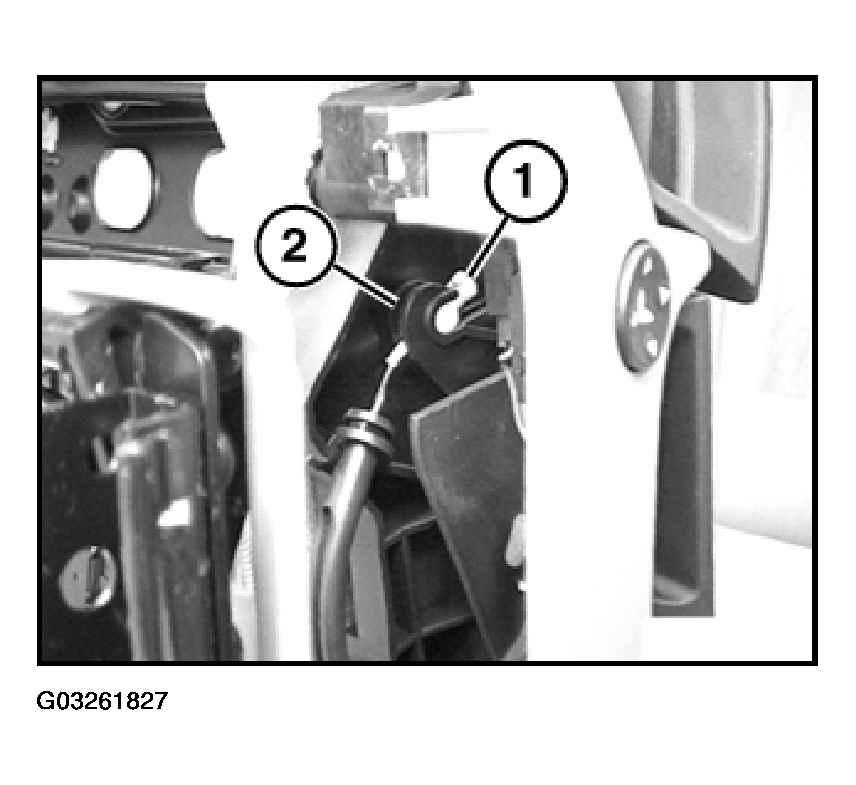

Withdraw Bowden cable nipple (1) from support (2) and remove Bowden cable for longitudinal adjustment.

Installation:

Adjust Bowden cable for longitudinal adjustment.

Fig 3: Adjusting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
