52 14... Replacing left flex shaft for longitudinal seat adjustment drive

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical plug connection.

Lift drive (1) and flex shaft (3) out of guide (2) in direction of arrow.

Detach flex shaft (3) (plug connection).

Fig 1: Identifying Lift Drive And Flex Shaft Out Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove drive (4).

Detach flex shaft (3) with holder (2).

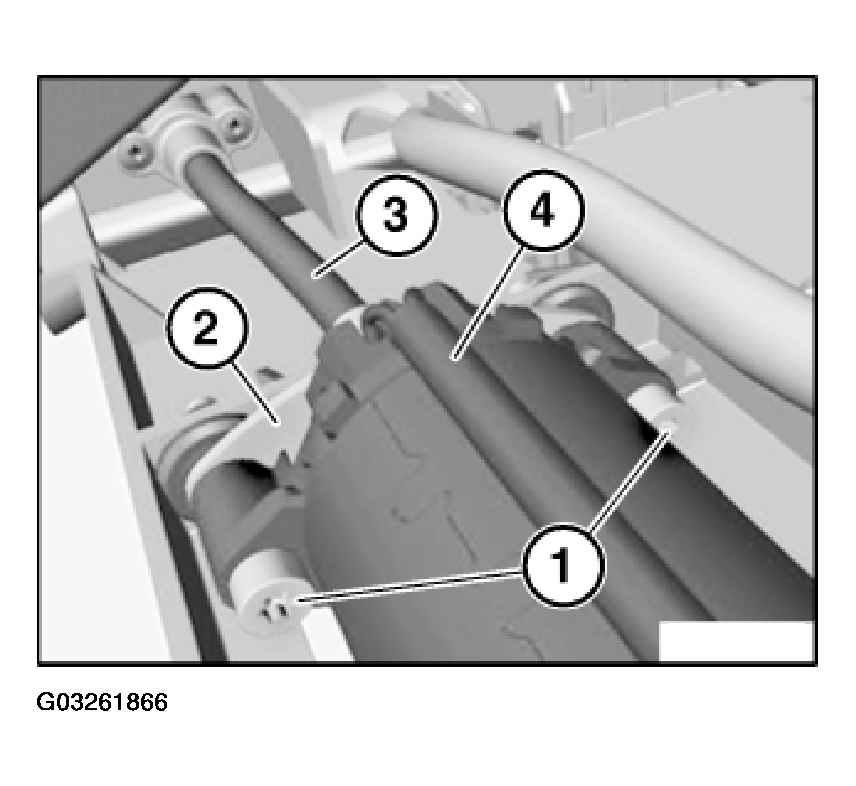

Fig 2: Detaching Flex Shaft With Holder

Courtesy of BMW OF NORTH AMERICA, INC.
