52 14 420 Replacing padding for left or right front seat backrest (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This task is identical to replacing backrest cover.

Seat with air conditioning:

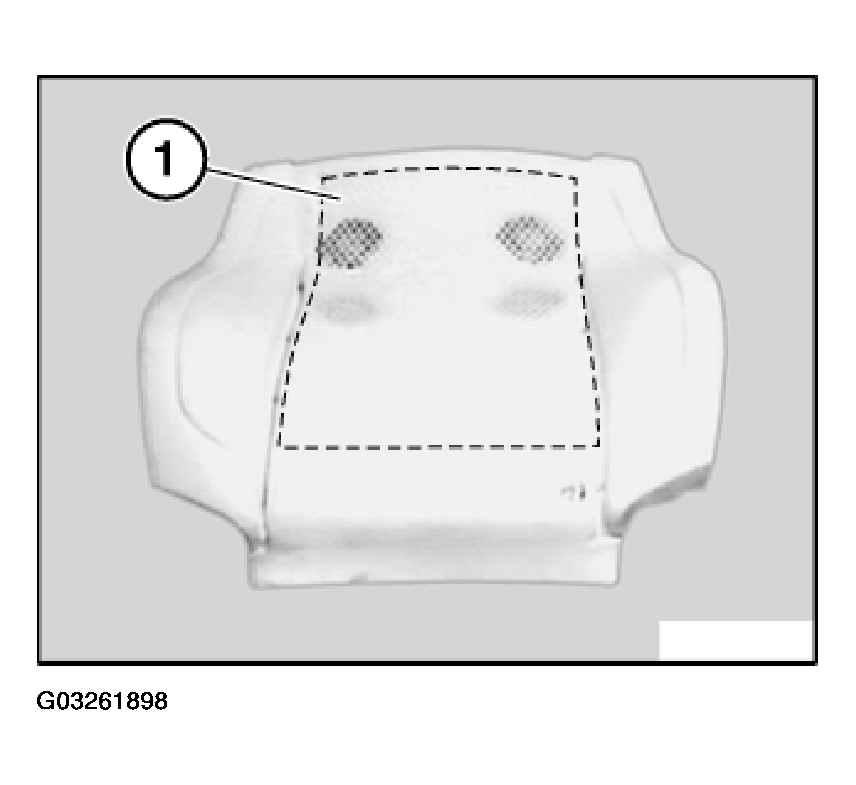

Remove dividing net (1) towards top.

Fig 1: Removing Dividing Net Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

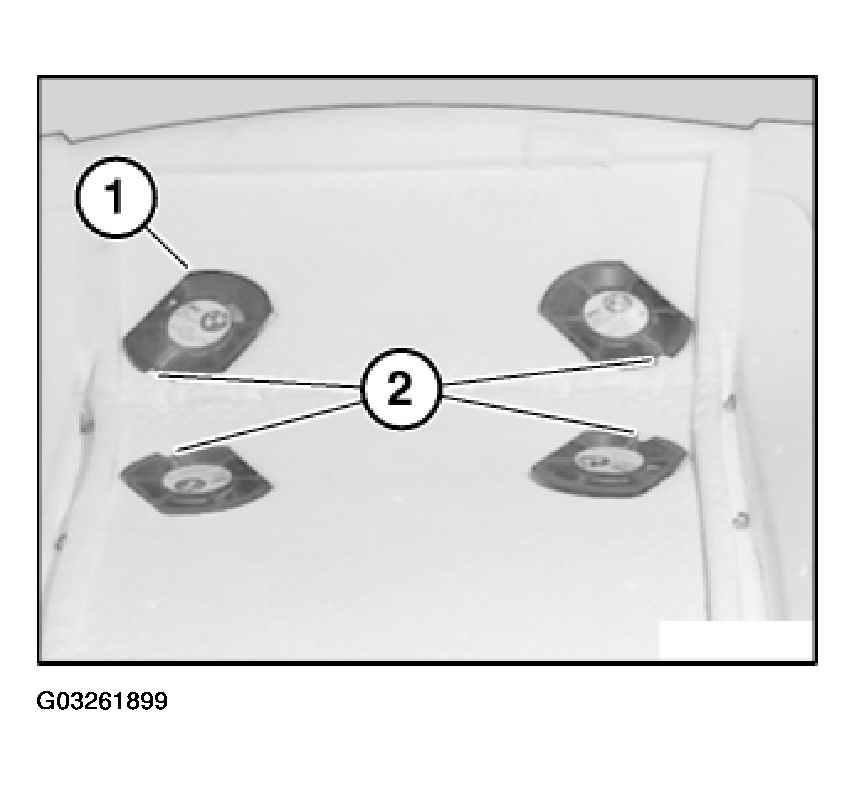

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

Fig 2: Removing Fan Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.
