52 14 390 Removing and installing or replacing front left or right head restraints (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Move headrest up as far as possible.

Pull out forcefully.

Installation:

Press in head restraint until it can be heard to snap into place.

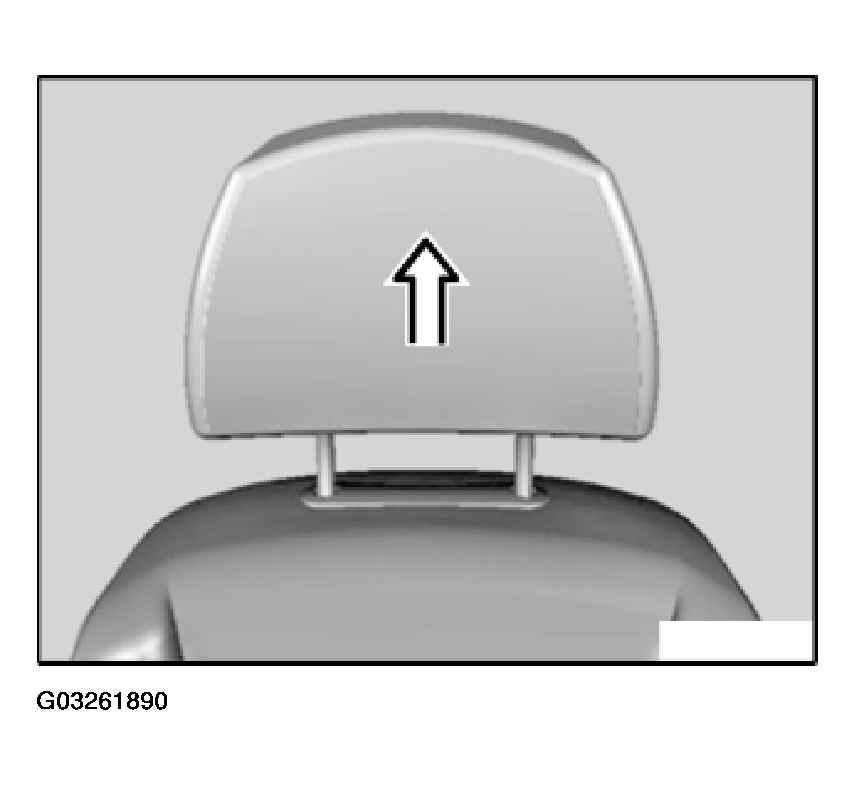

Fig 1: Moving Headrest Up As Far As Possible

Courtesy of BMW OF NORTH AMERICA, INC.
