52 17... Replacing padding for front seat thigh support (comfort)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

The work operations here are shown on the version with air conditioning and seat heating.

Feed out seat cover (1) in area (2).

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

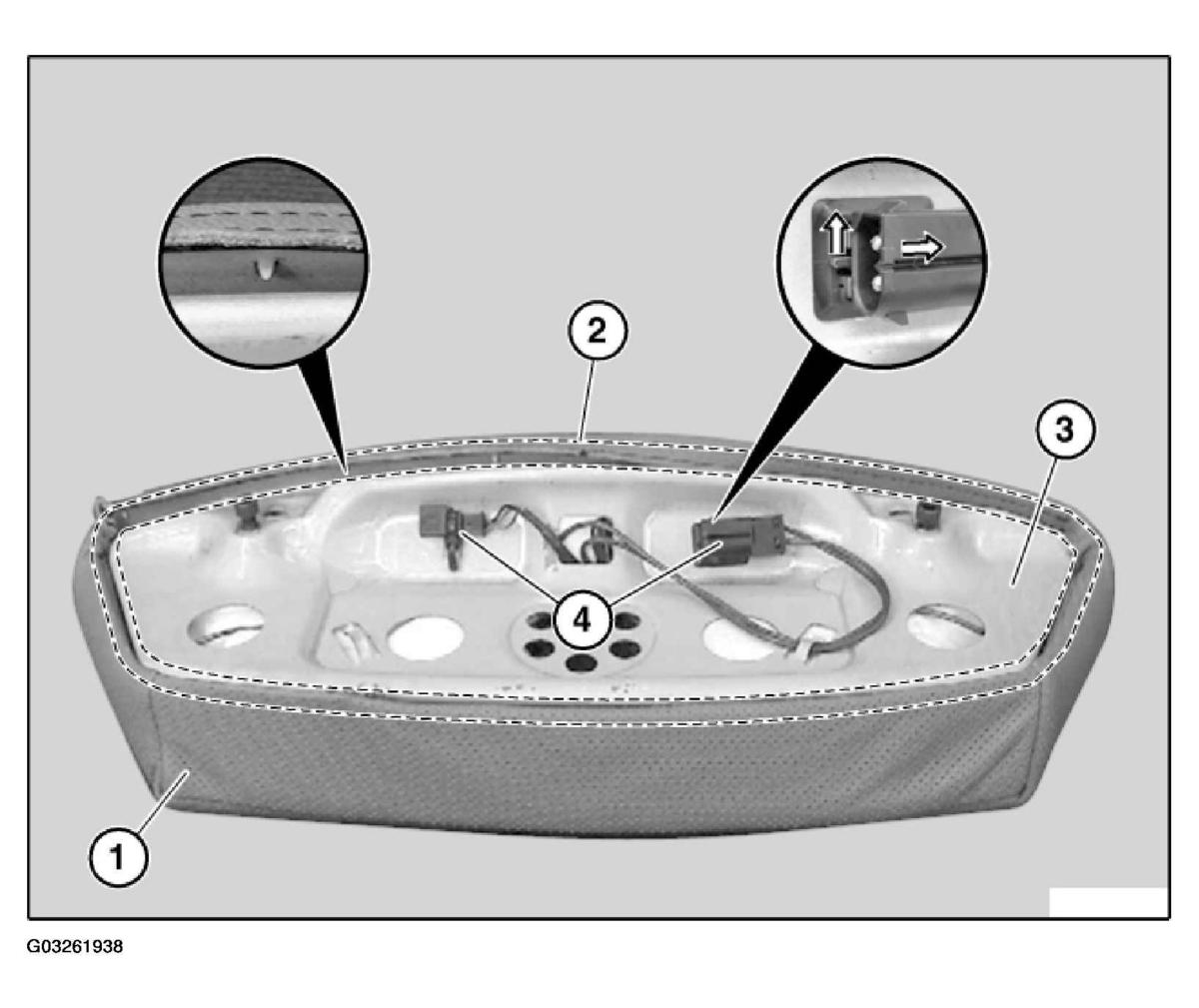

Fig 1: Replacing Padding For Front Seat Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (3); if necessary, remove padding or cover.

Version with seat heating or air conditioning:

Feed out cable (1) and remove padding (2).

Installation:

Ensure correct cable routing (1).

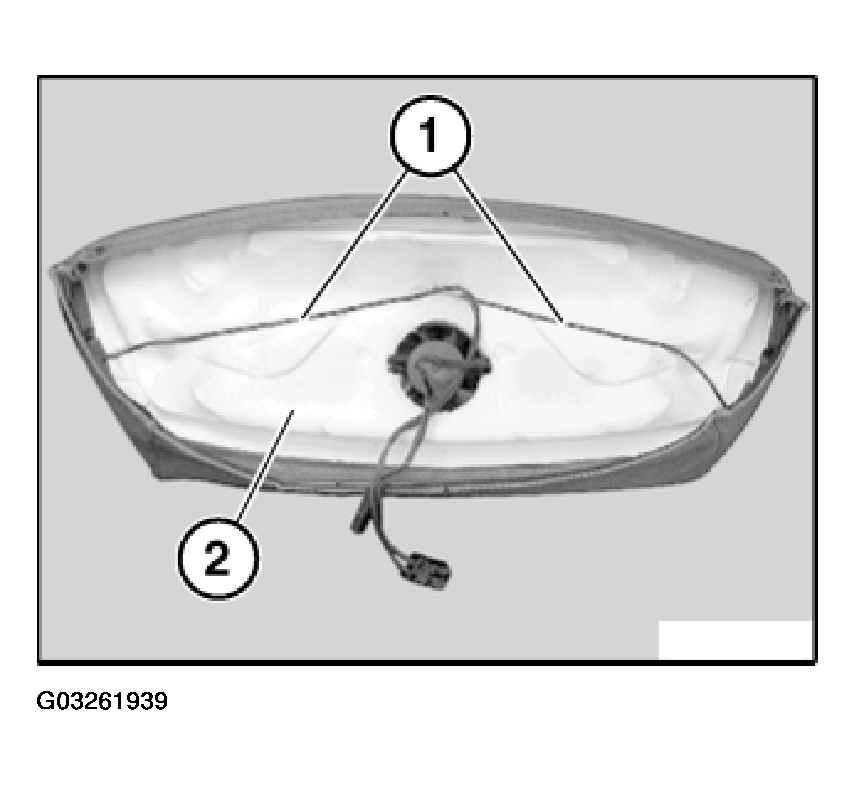

Fig 2: Removing Cable And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Version with air conditioning:

Remove separating net (1).
Lift out fan (2).

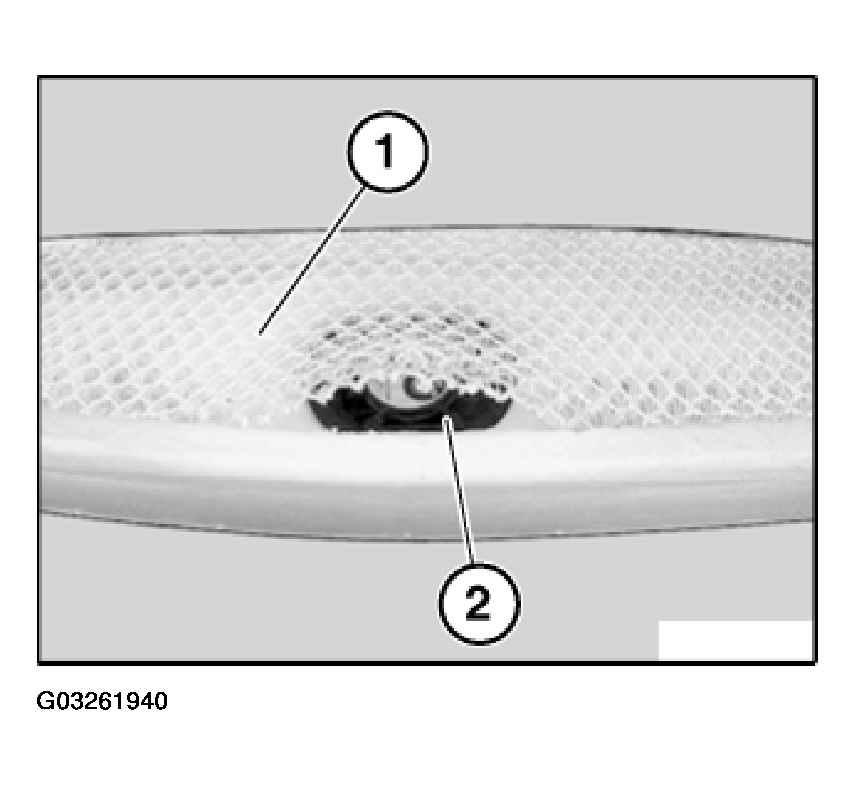

Fig 3: Removing Separating Net

Courtesy of BMW OF NORTH AMERICA, INC.
