52 17... Removing and installing/replacing left or right thigh support (comfort)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

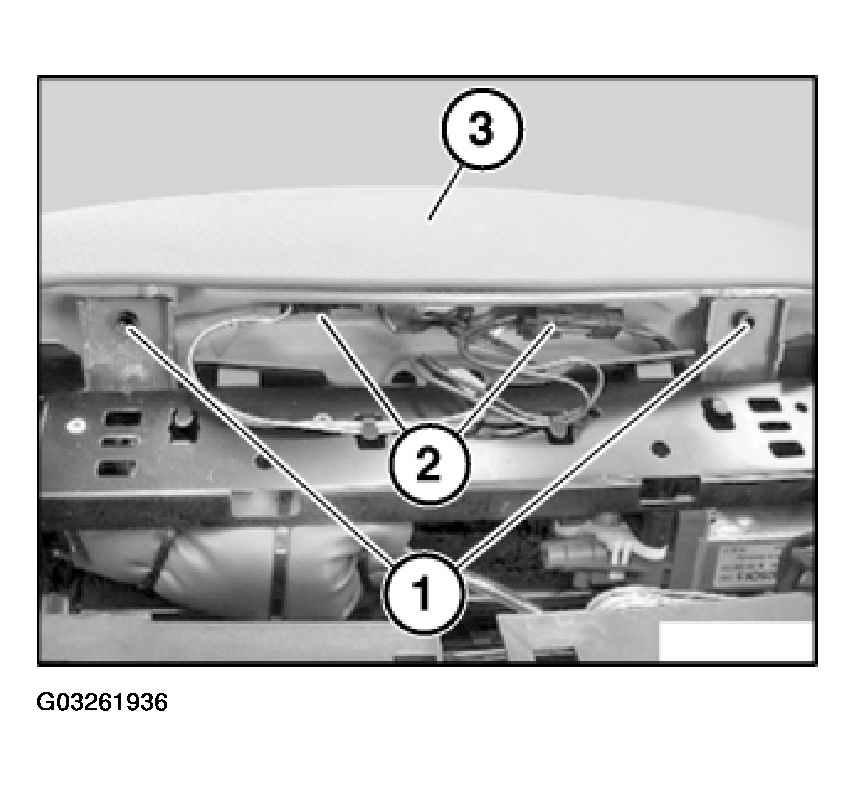

Loosen screws (1).
Disconnect plug connections (2).
Remove thigh support (3) towards top.

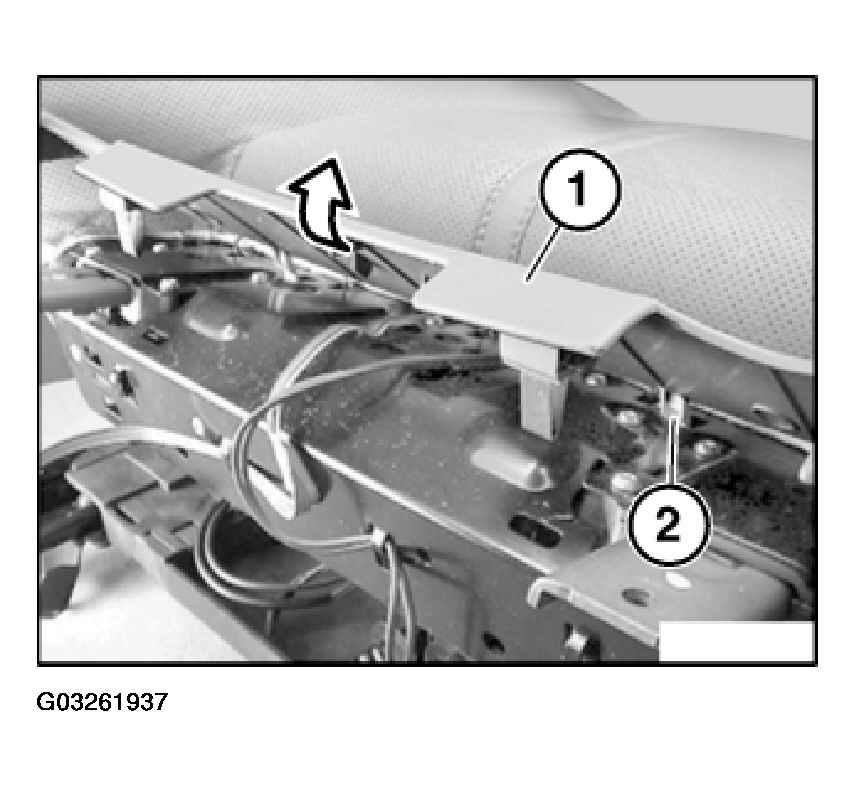

If necessary, unclip trim (1) towards top and remove.
Installation:
Secure guide pins (2) in seat frame and clip trim (1) into place.
