52 17... Removing and installing/replacing all trims on left or right seat rails (comfort)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

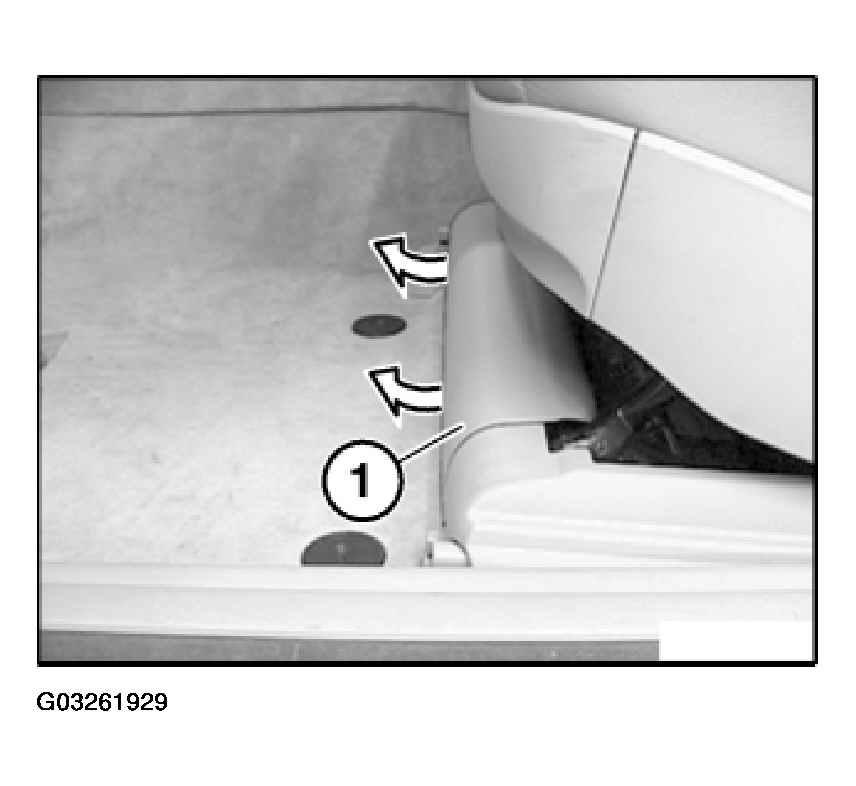

Trim, top rail, front:

Move seat backwards and upwards
Unclip front trim (1) towards top and detach towards top

Fig 1: Removing Front Trim Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

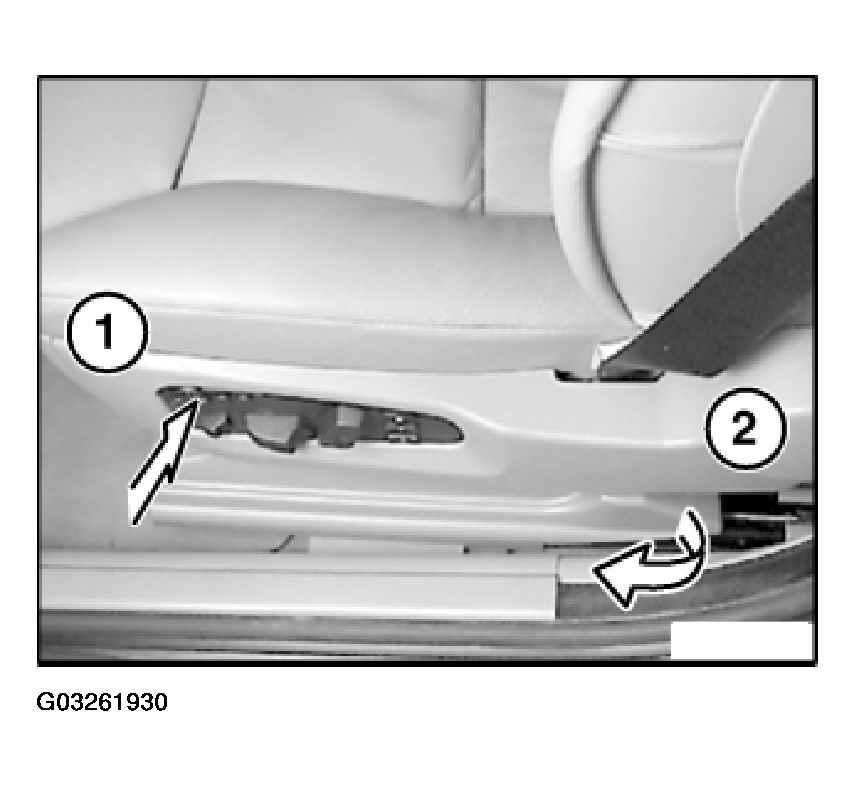

Trim, top rail, outer:

Move seat forwards and upwards
Unclip front trim towards top and detach towards rear

Fig 2: Moving Seat Forwards And Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

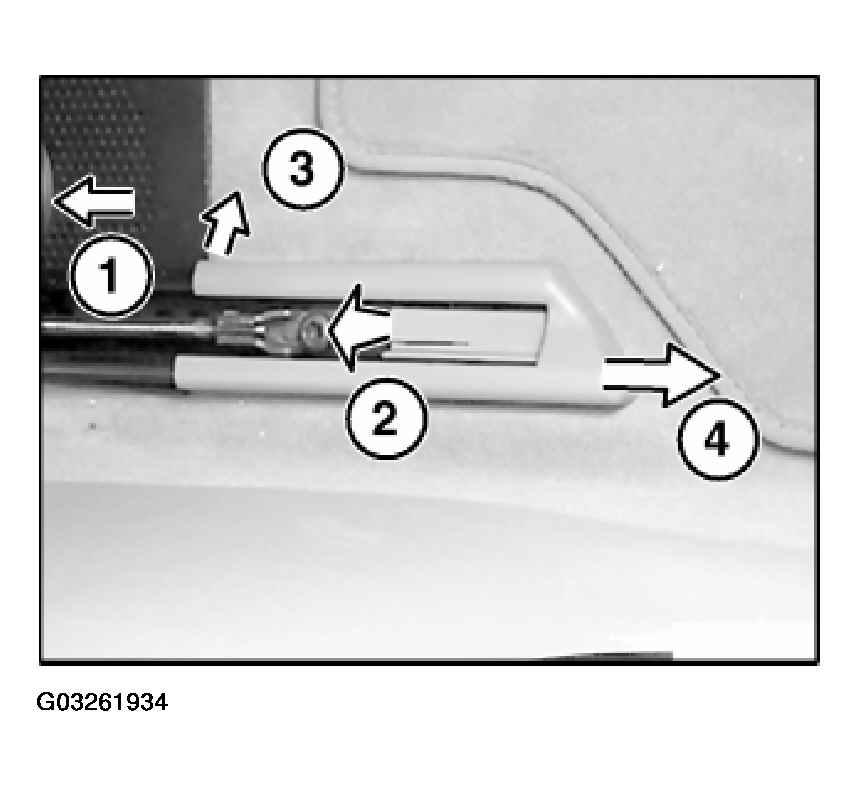

Trim, bottom rail, front, outer:

Move seat backwards
Unclip trim tongue towards top, sliding trim towards front slightly
Pull inner trim section inwards slightly and unclip
Detach trim towards front from bottom rail

Installation:

Place trim on bottom rail and slide towards rear to engage, feeding in below trim, top rail, outer.

Fig 3: Identifying Trim, Bottom Rail, Front, Outer

Courtesy of BMW OF NORTH AMERICA, INC.

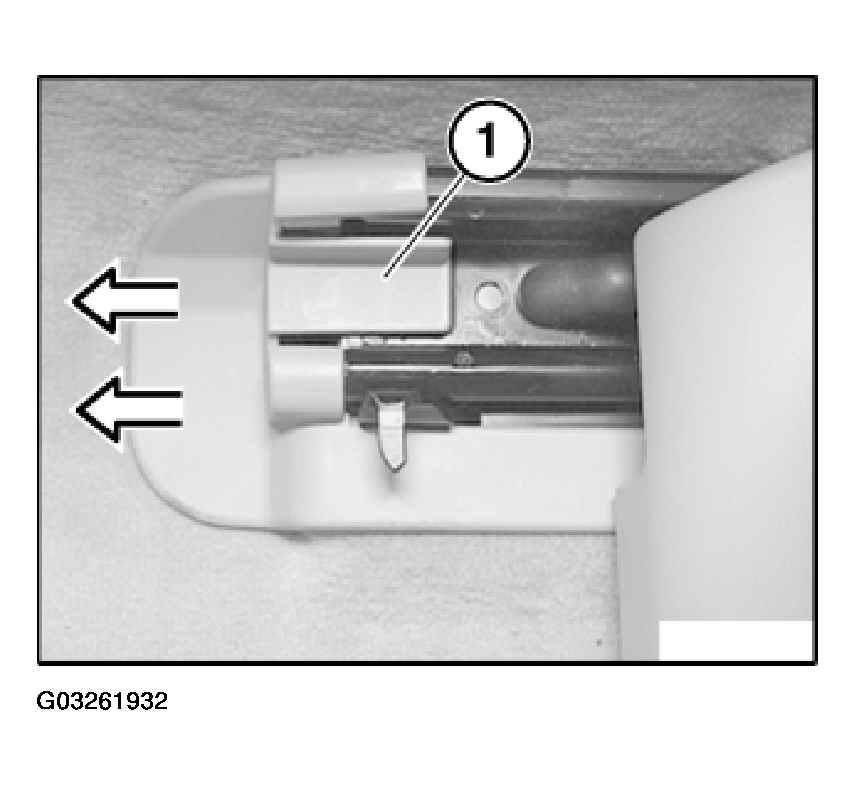

Trim, bottom rail, front, inner:

Move seat backwards.
Unclip tongue (1) towards top and detach trim towards front.

Fig 4: Detaching Trim Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

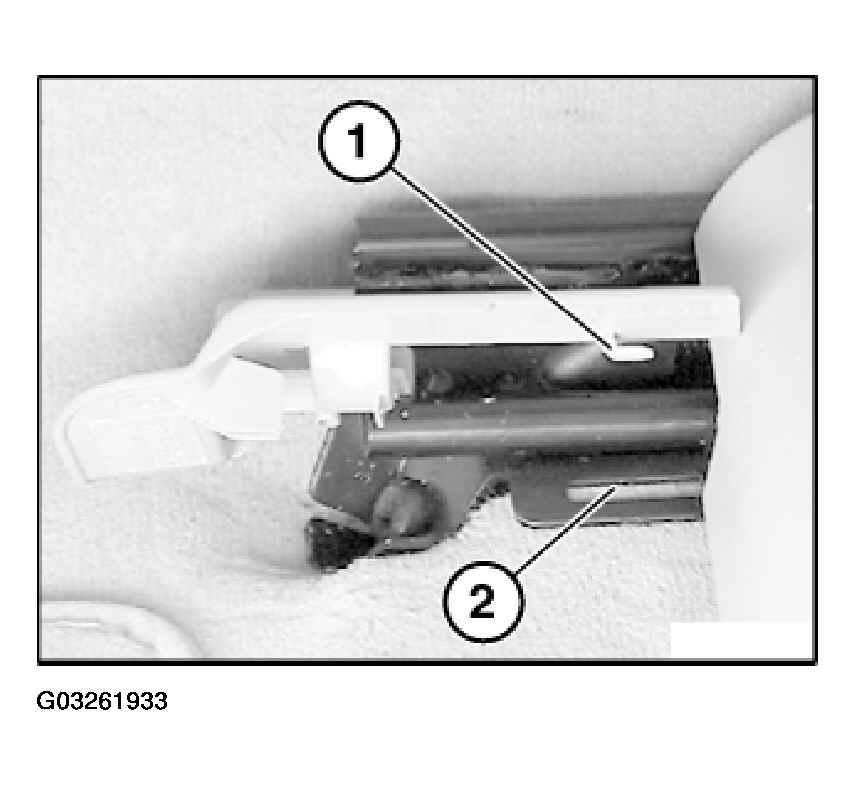

Installation:

Make sure hook (1) engages in slot (2).

Fig 5: Ensuring Hook Engages In Slot

Courtesy of BMW OF NORTH AMERICA, INC.

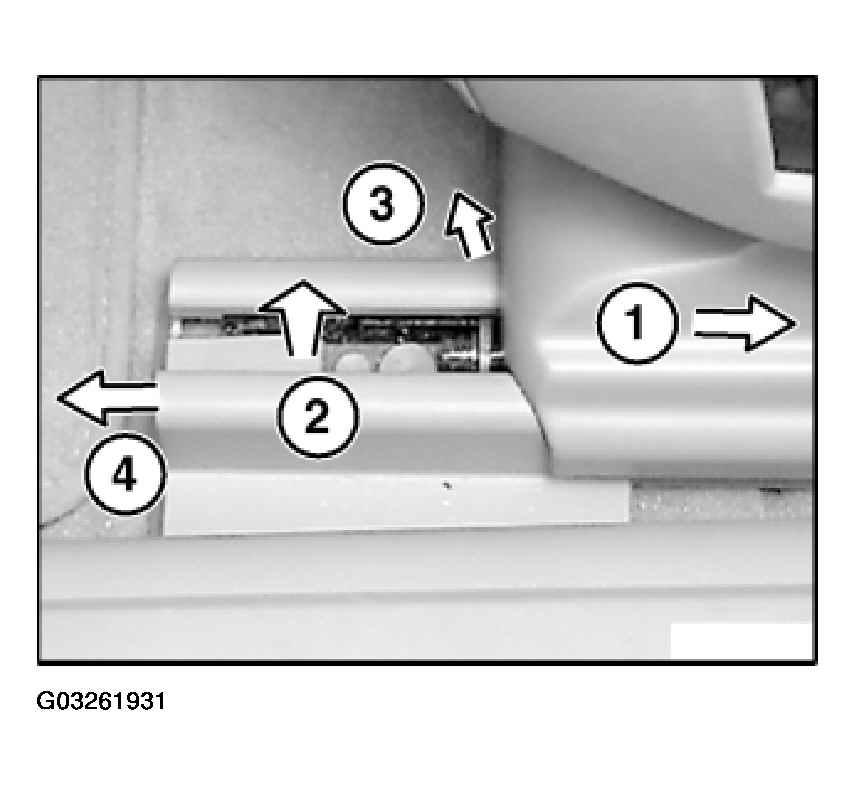

Trim, bottom rail, rear:

Move seat forwards
Unclip trim tongue towards top
Briefly pull inner trim section inwards
Detach trim towards rear from bottom rail

Fig 6: Identifying Trim, Bottom Rail, Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips and hooks must not be damaged.

Make sure trims are exactly seated.

After completing tasks, move seat and make sure that trim does not move.
