51 24 326 Removing and installing / replacing left tension spring with damper for rear lid

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

WARNING:

Support rear lid in fully opened position with suitable apparatus. Risk of injury.

Pull off retainer (1) upwards.

Pull off tension spring with damper (2) in inwards direction.

WARNING:

The rear lid will drop down if it is not supported.

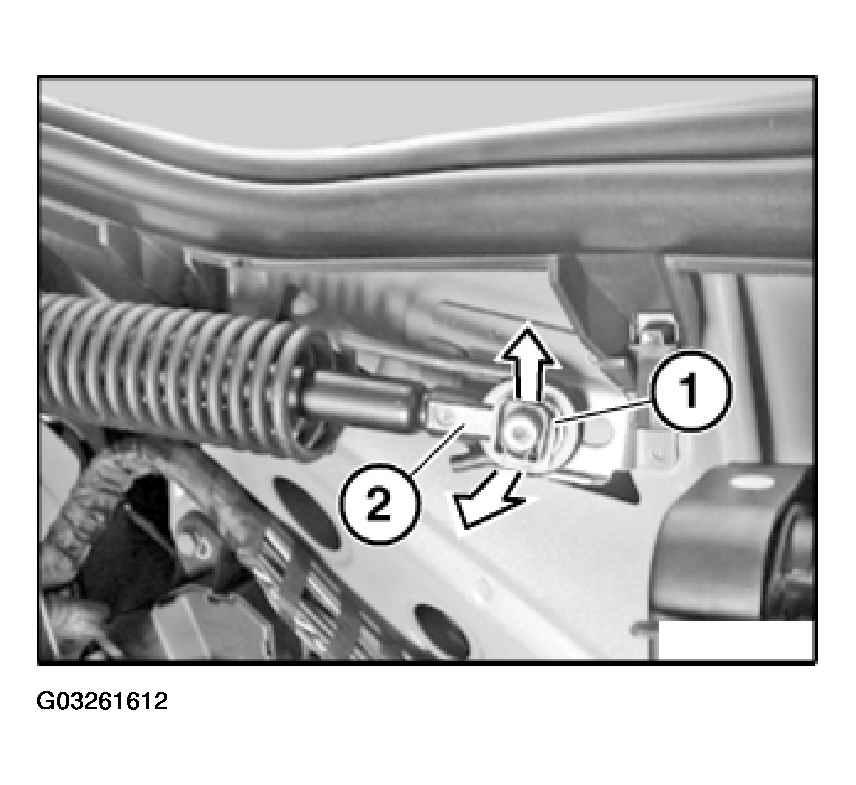

Fig 1: Removing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook tension spring with damper (1) from rear lid hinge (2).

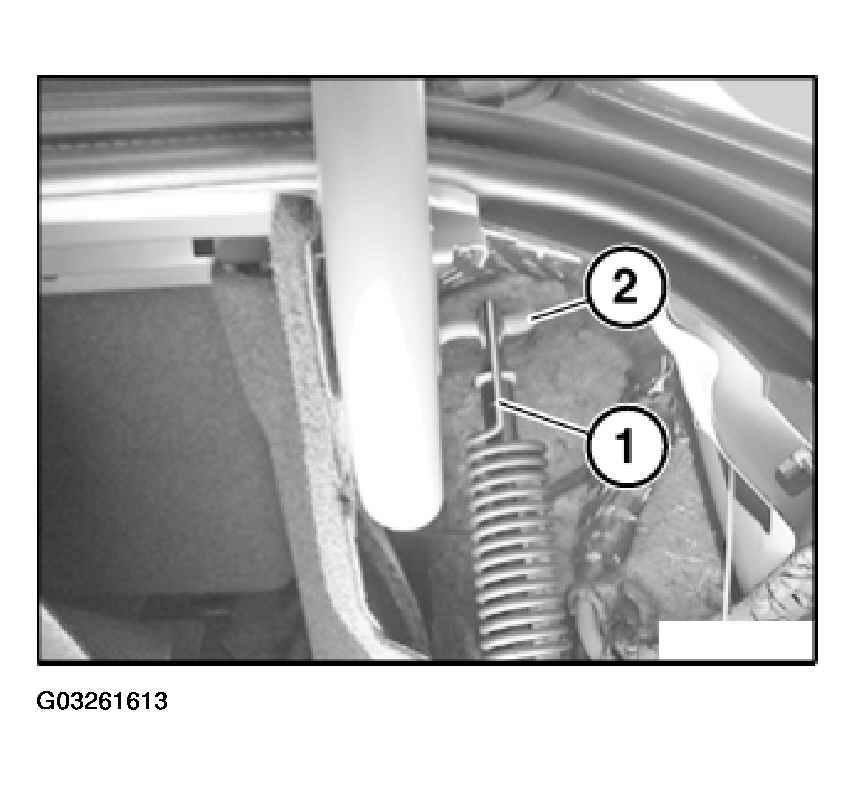

Fig 2: Removing Tension Spring Hook With Damper From Rear Lid Hinge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe installation direction: hinge end is identified by means of plastic sleeve (1).

Following parts on the tension spring with damper must not be damaged or missing:

1 Plastic sleeve

2 Foam inlay in tension spring

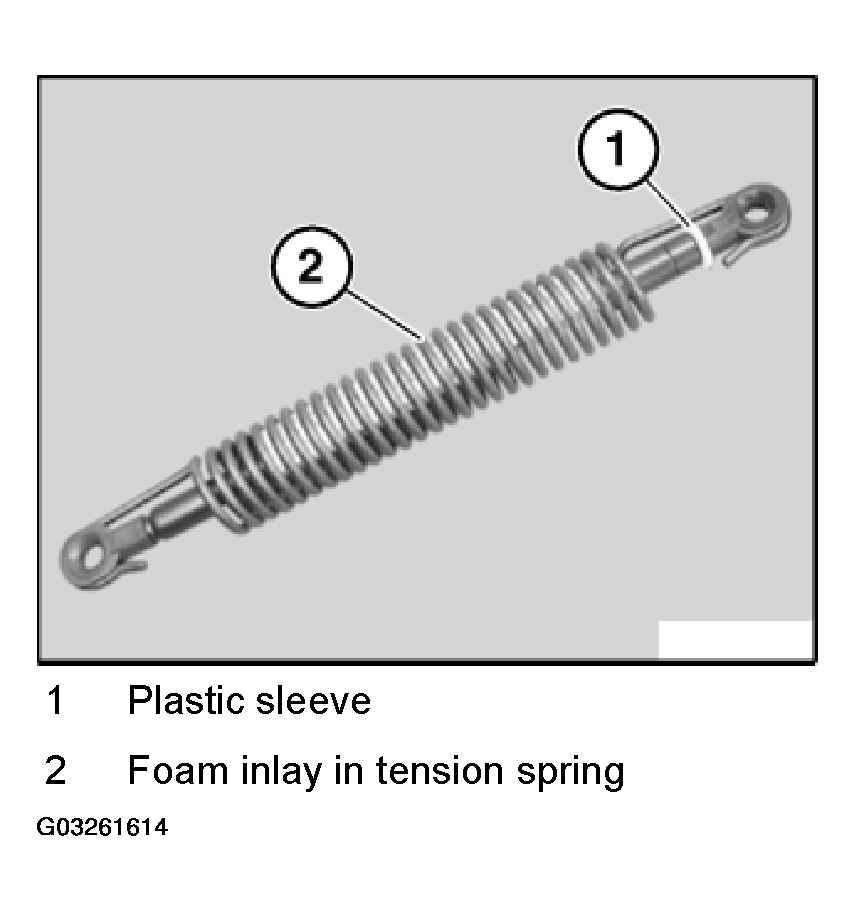

Fig 3: Installing Tension Spring With Damper

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Semicircular rubber buffer (2) (from window repair kit) must be fitted to rear lid hinge (3) without end stop (1).

Stick semicircular rubber buffer (2) at spacing (A) on rear lid hinge (3).

A = 65 mm

Semicircular rubber buffer (2) must touch rear lid hinge (3) in area (4) with rear lid open.

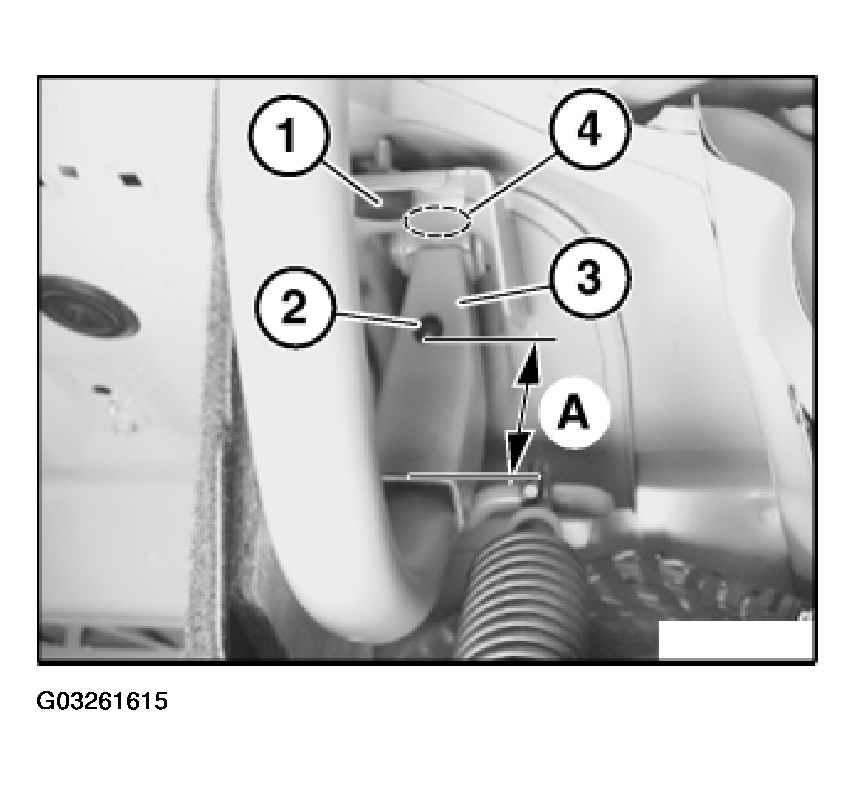

Fig 4: Identifying Semicircular Rubber Buffer

Courtesy of BMW OF NORTH AMERICA, INC.
