51 24 325 Removing and installing/replacing left tension spring for rear lid

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR LIGHT .

WARNING:

Support rear lid in fully opened position with suitable apparatus. Risk of injury.

Attach special tool 51 3 290 in tension spring (1) and pull towards rear.

Installation:

Reattach tension spring (1) in same position.

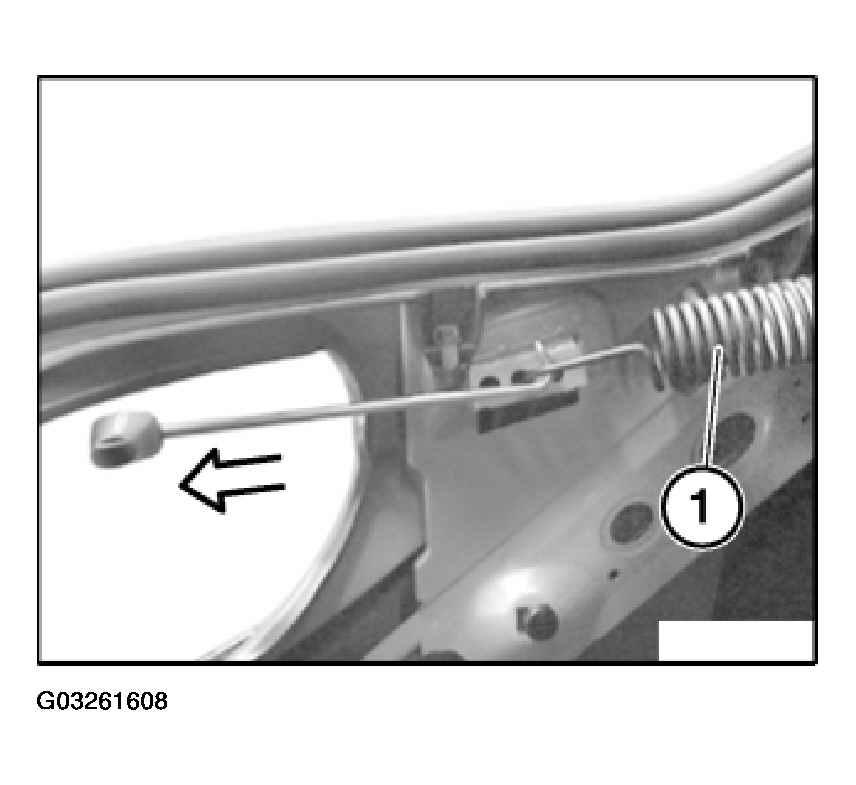

Fig 1: Connecting Tension Spring

G03261608

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook tension spring (1) from rear lid hinge (2).

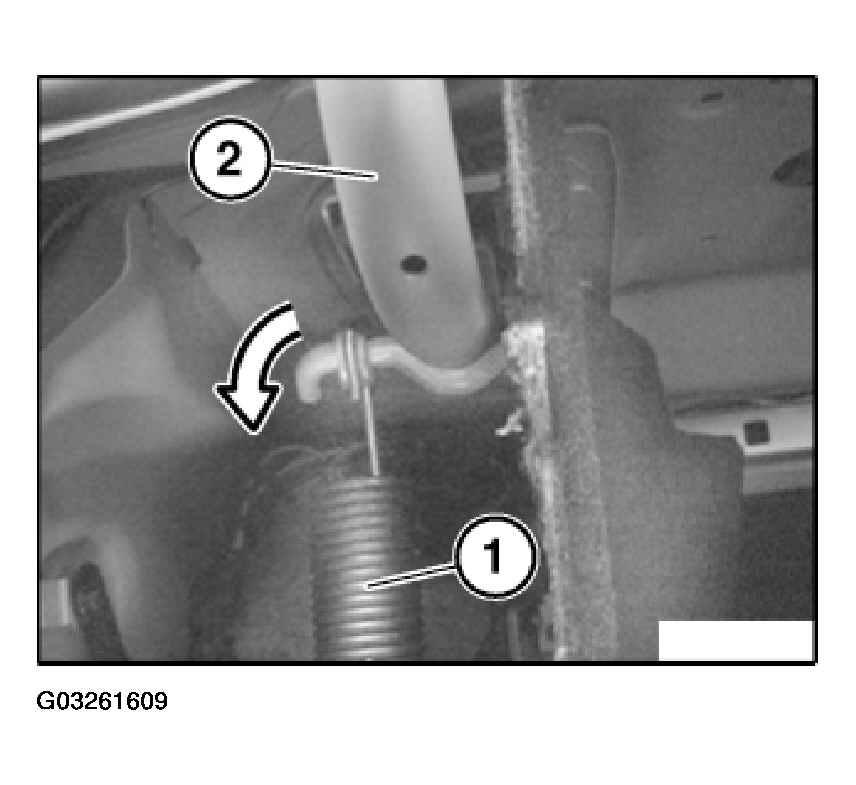

Fig 2: Removing Tension Spring Hook From Rear Lid Hinge

G03261609

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on the tension spring must not be damaged or missing:

1 Plastic sleeve

2 Foam inlay in tension spring

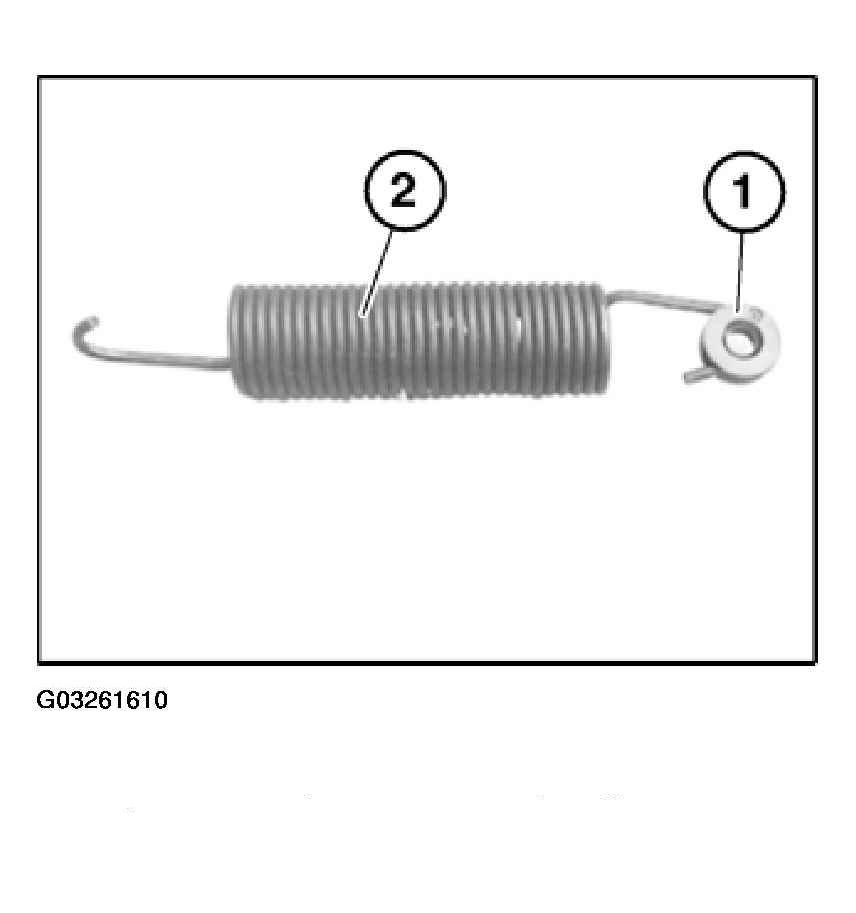

Fig 3: Identifying Plastic Sleeve & Spring

G03261610

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Semicircular rubber buffer (2) (from window repair kit) must be fitted to rear lid hinge (3) without end stop (1).

Stick semicircular rubber buffer (2) at spacing (A) on rear lid hinge (3).

A= 65 mm

Semicircular rubber buffer (2) must touch rear lid hinge (3) in area (4) with rear lid open.

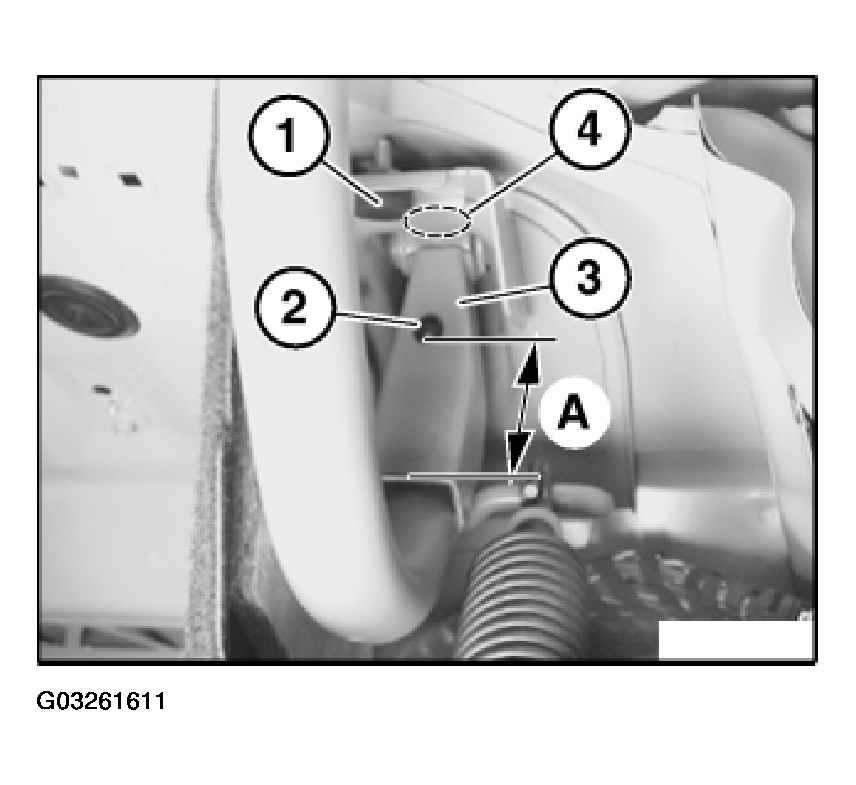

Fig 4: Identifying Semicircular Rubber Buffer

G03261611

Courtesy of BMW OF NORTH AMERICA, INC.
