51 13... Replacing front radiator grille, middle left or right
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Representation created using the E85 as an example. There may be differences in detail in the case of other vehicle models.

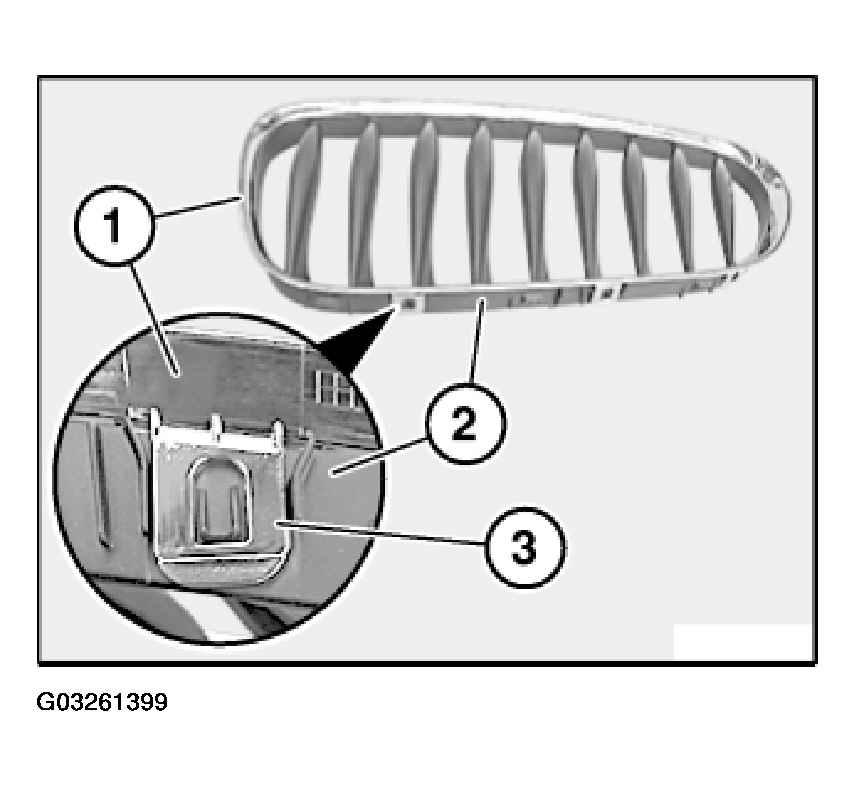

Lever out upper catches (3) and separate inner section (2) from chrome ring (1).
Installation:

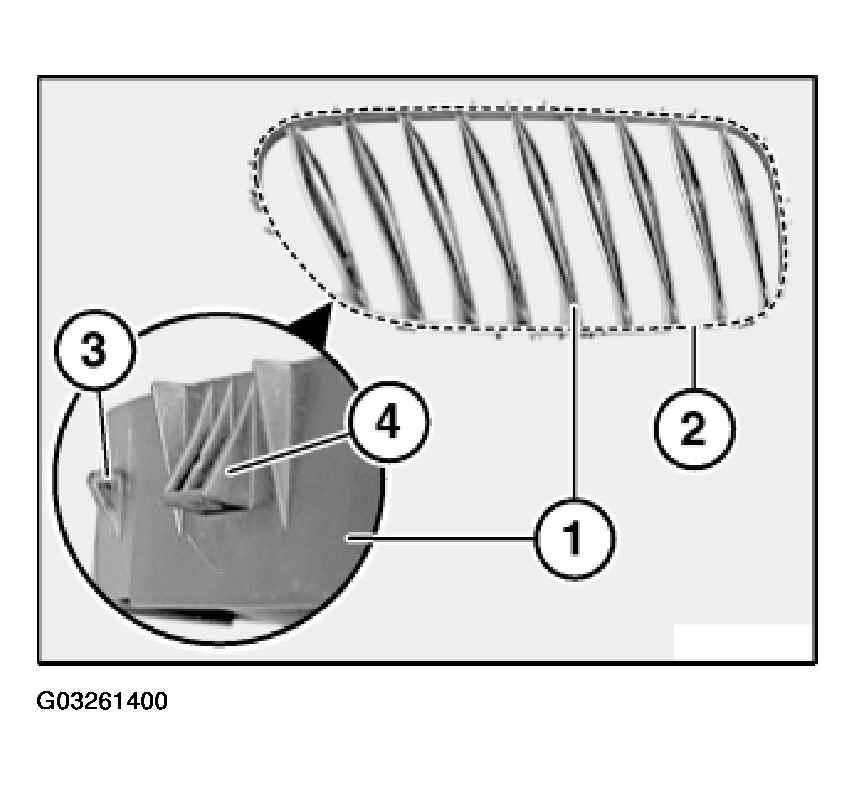

Check inner section (1) for damage.
Retaining lugs (3) and (4) along line (2) must not be damaged.
Installation:

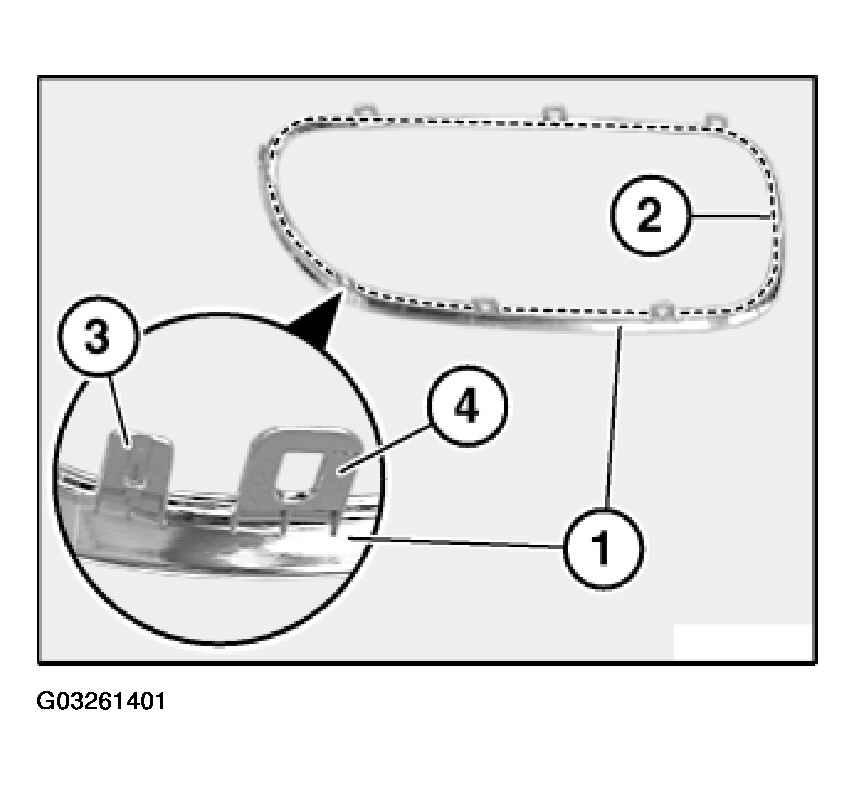

Check chrome ring (1) for damage.
Catches (4) and guides (3) along line (2) must not be damaged.
Installation:
Assemble chrome ring (1) and inner section (2).
Make sure catch (3) is correctly assembled.
