51 44 180 Removing and installing/replacing rear console insert/make-up mirror in rear cabin (long version)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove READING LIGHT (REAR)

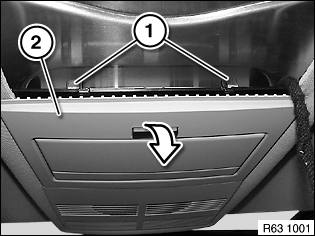

Press retaining clips (1) together.
Lever out make-up mirror (2) in direction of arrow.
Disconnect associated plug connection.
Replacement:
If necessary, modify BULBS .
