51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Partly lever out seal (1) at top.

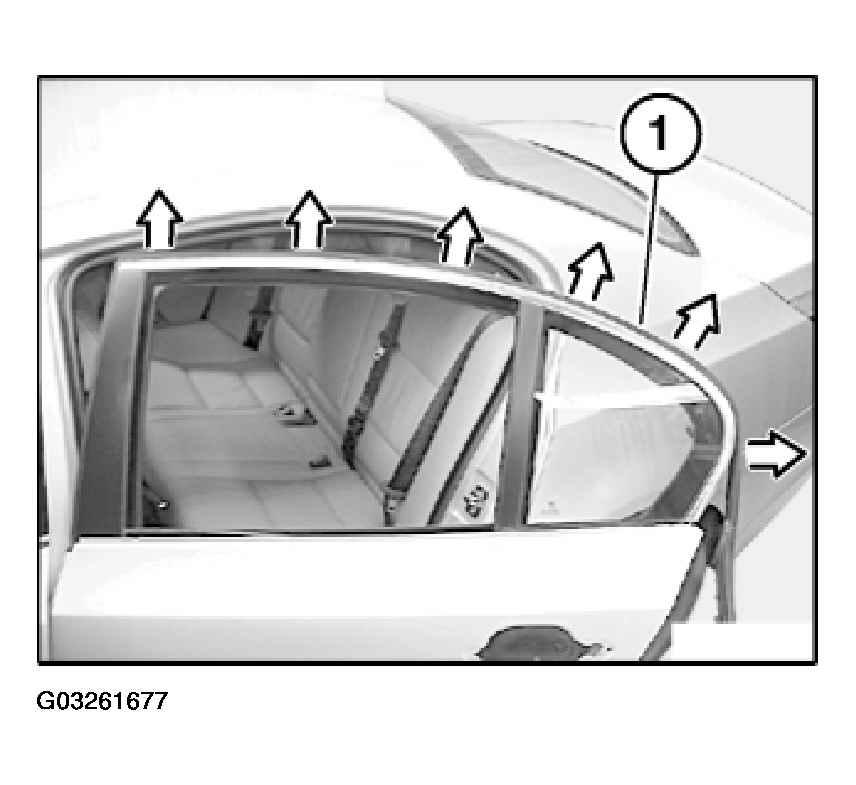

Fig 1: Removing Seal
G03261677Courtesy of BMW OF NORTH AMERICA, INC.

Pull off decorative strip (1) in outwards direction.

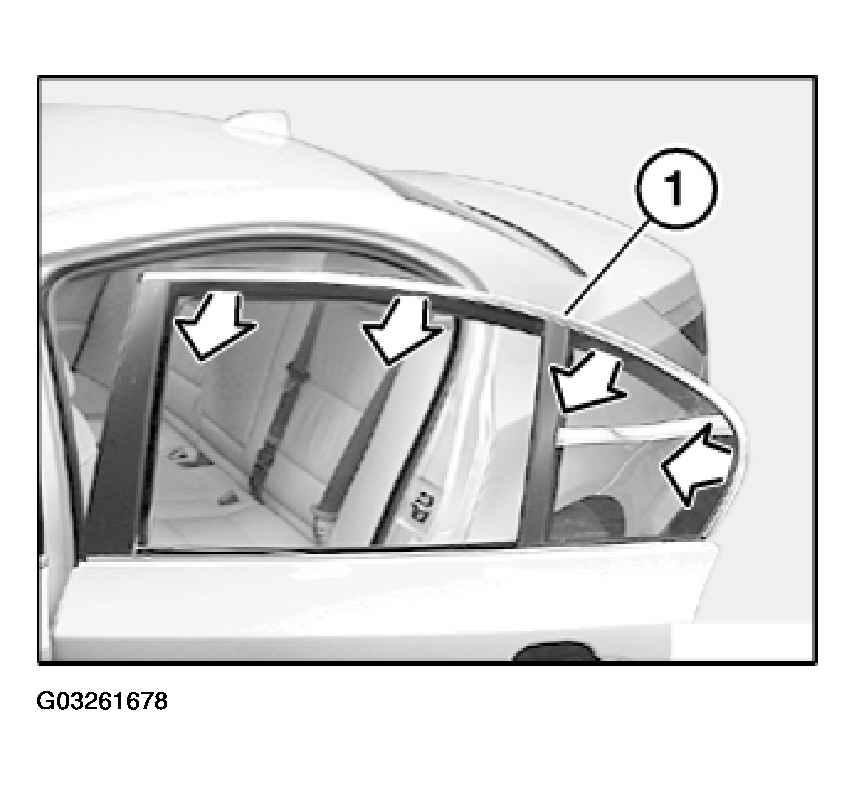

Fig 2: Removing Decorative Strip
G03261678Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove faulty clips (1) from window frame (2) and replace.

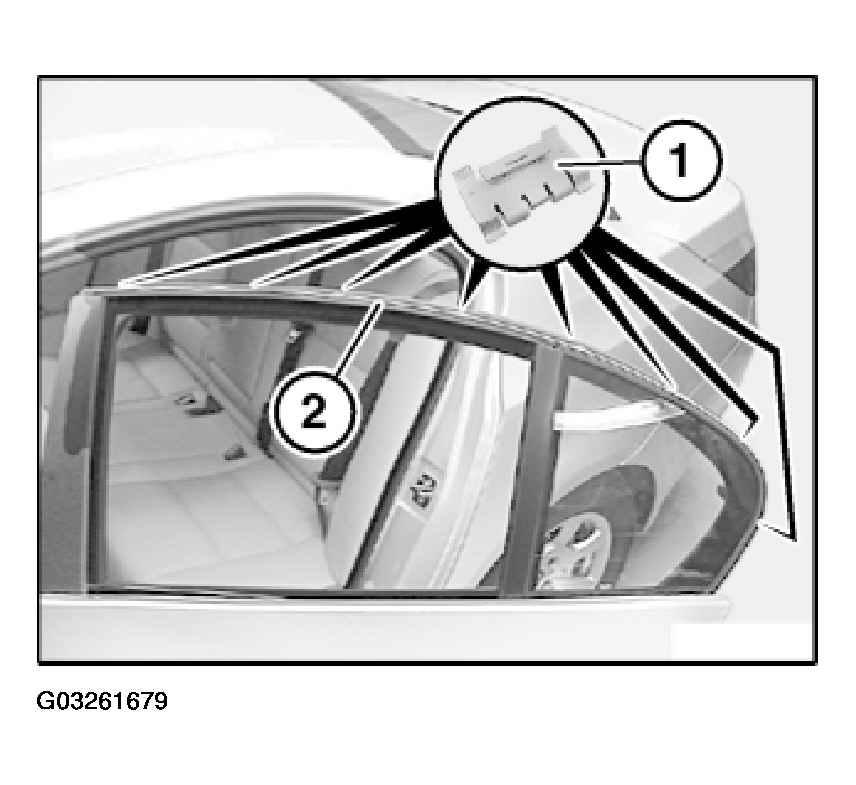

Fig 3: Removing Faulty Clips From Window Frame
G03261679Courtesy of BMW OF NORTH AMERICA, INC.
