51 22... Overview of rear door locks

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

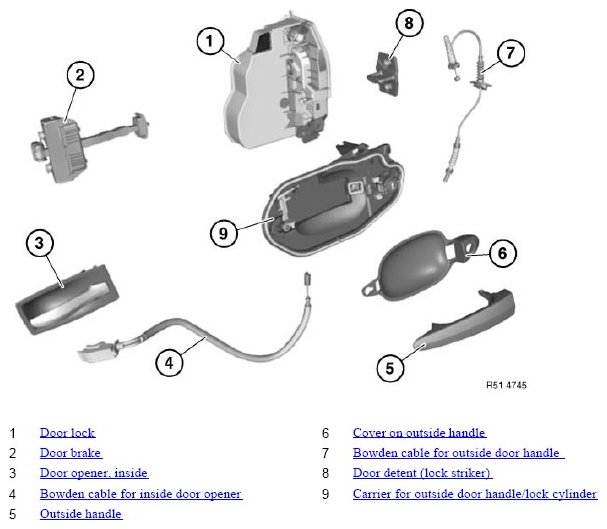

Fig 1: Identifying Front Door Locks Components
G04760812Courtesy of BMW OF NORTH AMERICA, INC.
