51 12 827 Removing and installing / replacing guide for bottom rear bumper

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM .

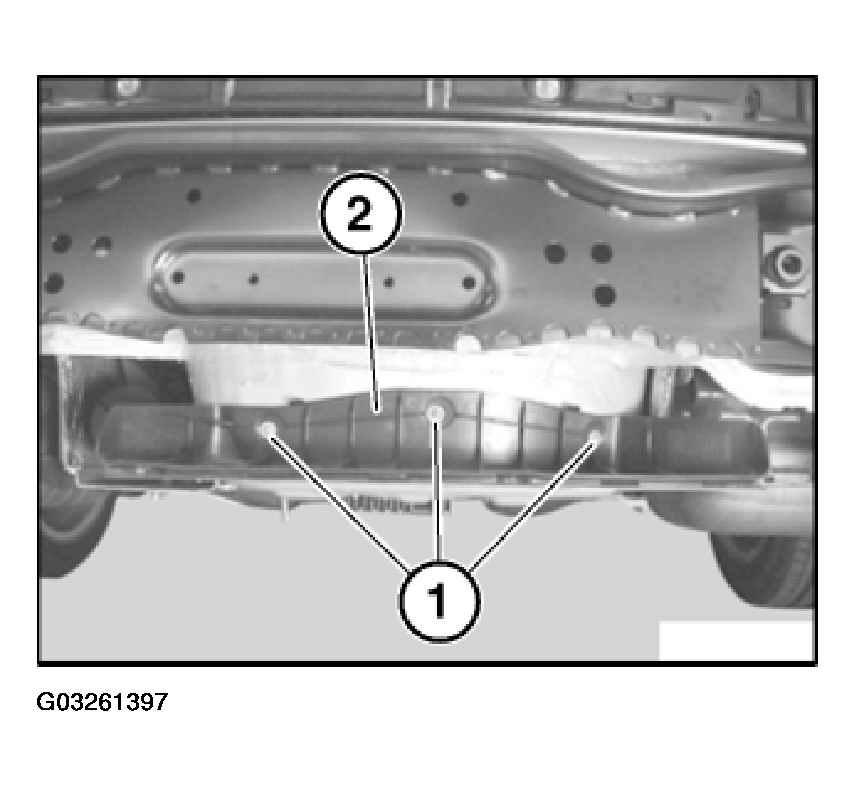

All models except M6:

Release nuts (1) on guide (2).

Remove guide (2).

Installation:

If necessary, replace faulty nuts (1).

Fig 1: Removing Faulty Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

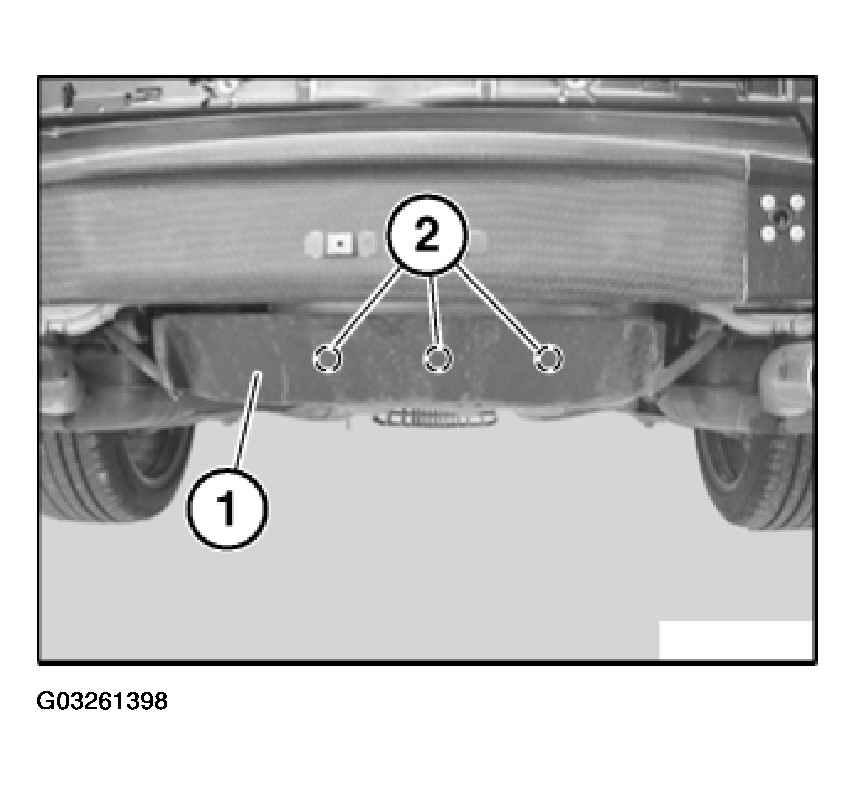

M6 only:

Bend guide (1) downwards slightly and release nuts (2) behind.

Remove guide (1).

Installation:

If necessary, replace faulty nuts (2).

Fig 2: Removing Guide

Courtesy of BMW OF NORTH AMERICA, INC.
