51 12 157 Replacing rear bumper trim

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM .

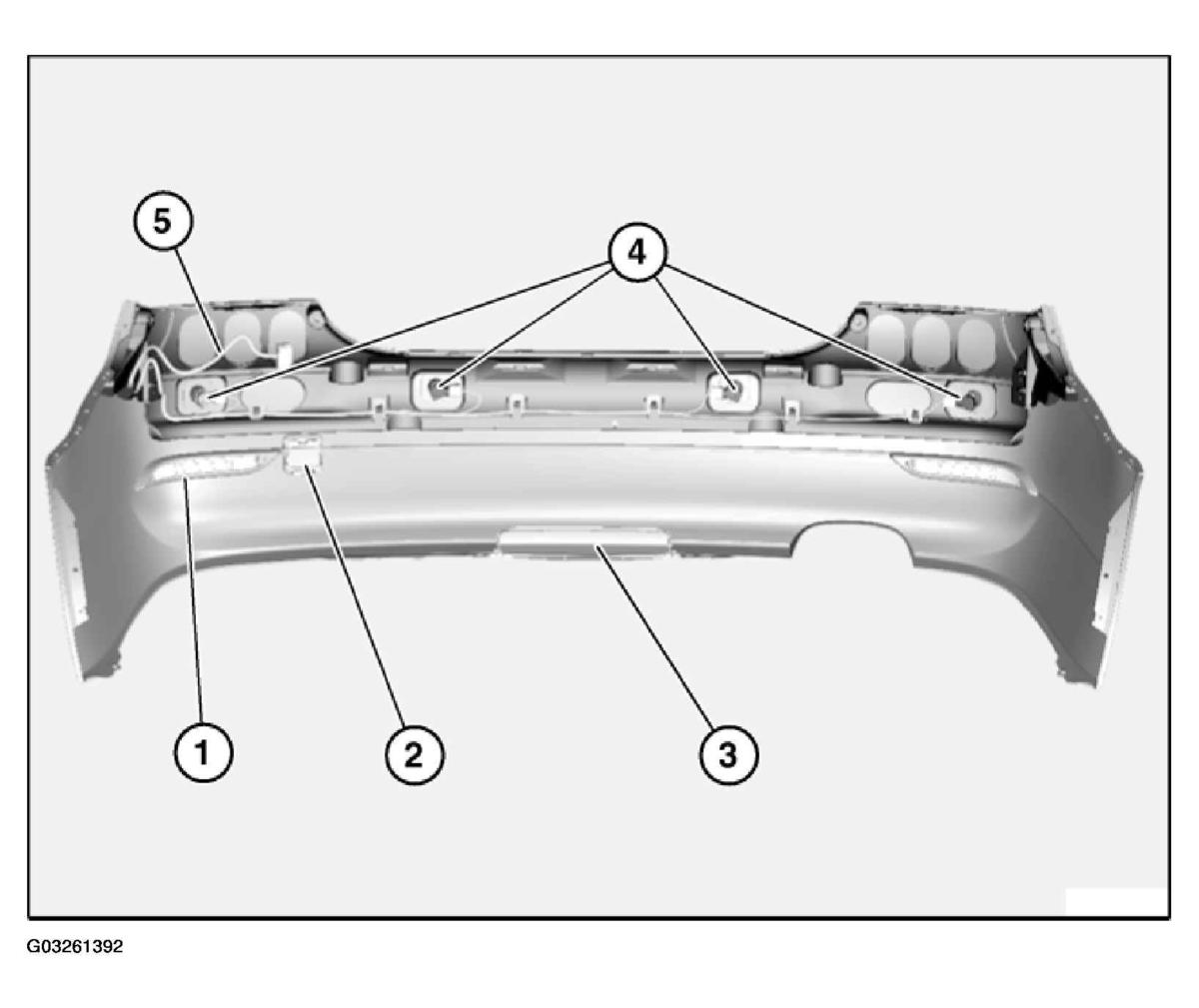

Fig 1: Removing Rear Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear reflector (1). See REAR REFLECTOR (not M5).

Remove cover cap (2) for tow lug.

If necessary, remove flap for towing hitch (3) (not M5).

If equipped with PDC:

Remove all ULTRASONIC TRANSDUCERS (4).

Remove wiring harness (5) for ultrasonic transducers.

M5 only

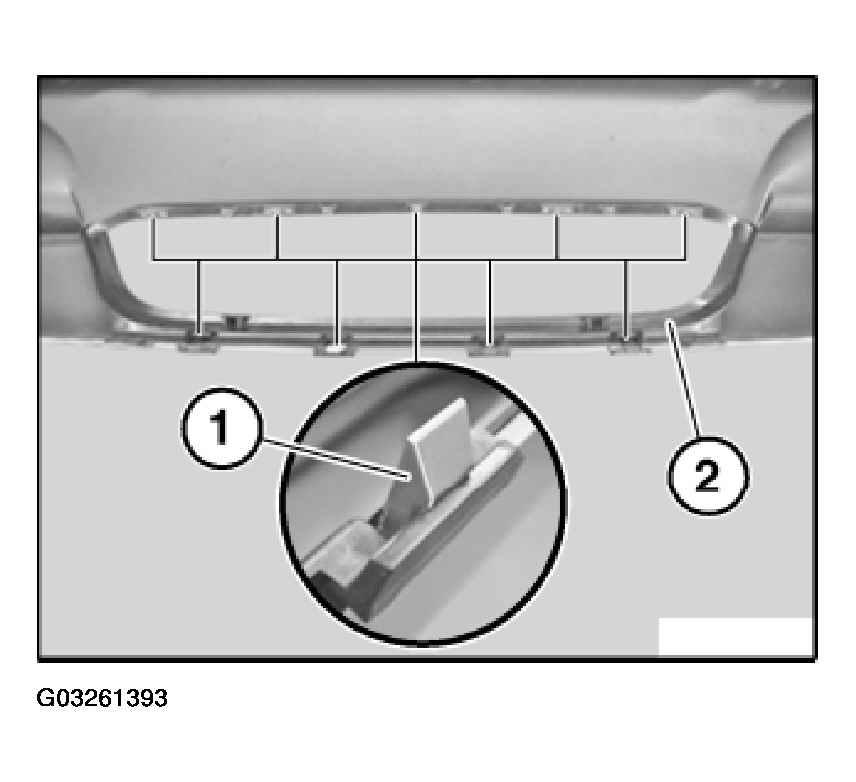

Release catches (1).

Remove frame (2).

Fig 2: Removing Rear Reflector

Courtesy of BMW OF NORTH AMERICA, INC.
