51 16... Removing and installing/replacing front outer cup holder carrier
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Front Outer Cup Holder .
- Remove Decorative Strip On Instrument Panel On Right .
- Remove Right Glovebox With Housing .

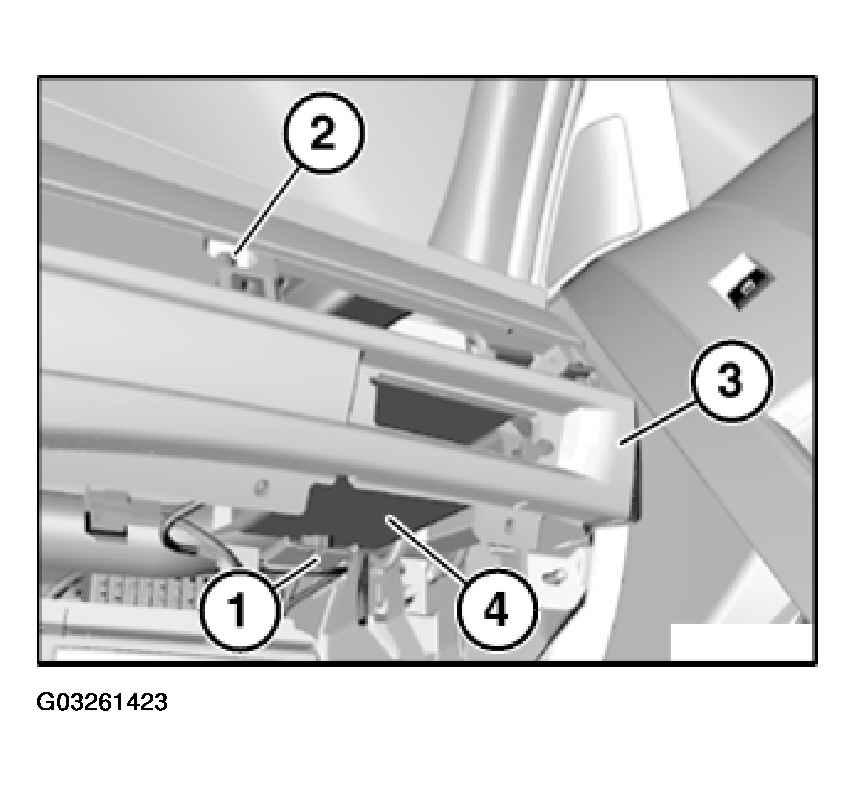

Remove screws (1) and (2).
Feed out cup holder carrier (4) from instrument panel trim (3) and remove.
